Cruise Control Switch: Service and Repair

Removal and Installation

1. Disconnect the battery negative terminal.

Tightening torque :
4.0 - 6.0N.m (0.4 - 0.6kgf.m, 3.0 - 4.4lb-ft)

2. Remove the driver airbag module.
3. Remove the steering wheel.
4. Remove the steering wheel cover (A) after loosening the screws.




5. Disconnect the cruise control switch connector (A) and then remove the switch.





NOTE:
Be careful not to damage the hook when removing the switch.

6. Installation is the reverse of removal.

Inspection

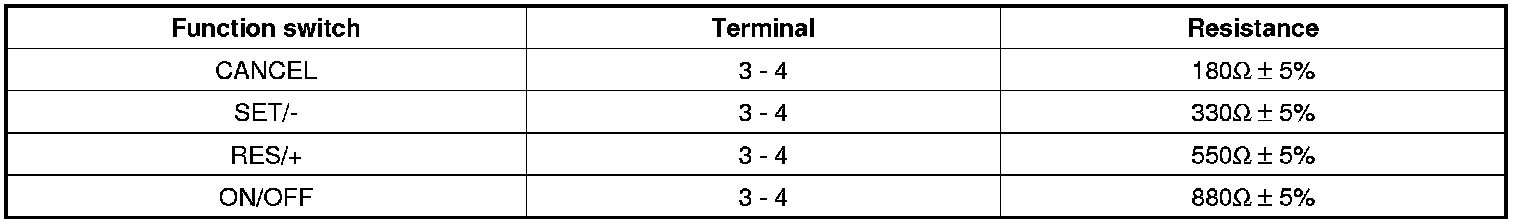

Measuring Resistance
1. Disconnect the cruise control switch connector from the control switch.




2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).





3. If not within specification, replace switch.

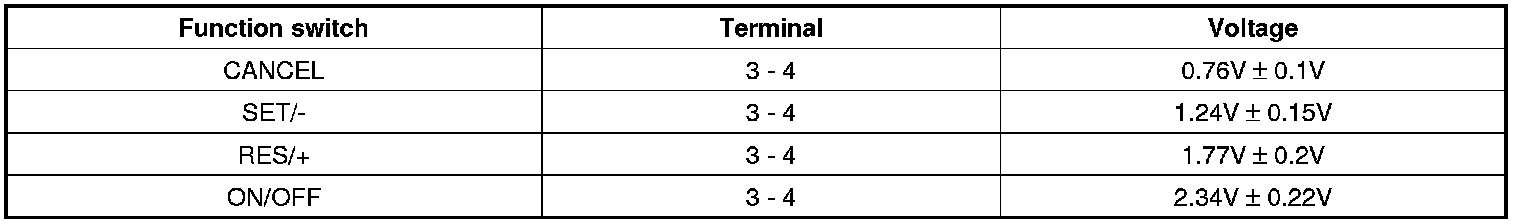

Measuring Voltage
1. Connect the cruise control switch connector to the control switch.




2. Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).





3. If not within specification, replace switch.
