Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Diagrams >> Ignition Coil #1 (W/O IMMO./ Smart Key)

Ignition Coil #1 (W/O IMMO./ Smart Key)

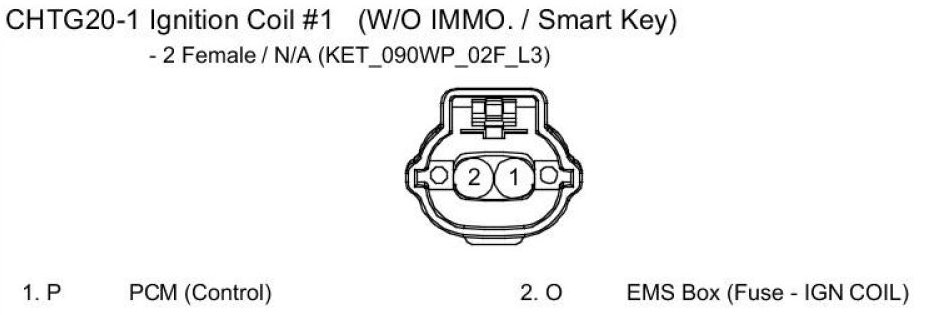

CHTG20-1 Ignition Coil #1 (W/O IMMO./ Smart Key):
