Campaign SA119 - Inspect/Adjust Wastegate Actuator

NUMBER 110 [Rev 1, 12/20/2011]

GROUP Engine

DATE December 2011

MODEL 2012MY Optima (QF)

SUBJECT: SERVICE ACTION: OPTIMA (QF) EWGA INSPECTION AND ADJUSTMENT (SA119)

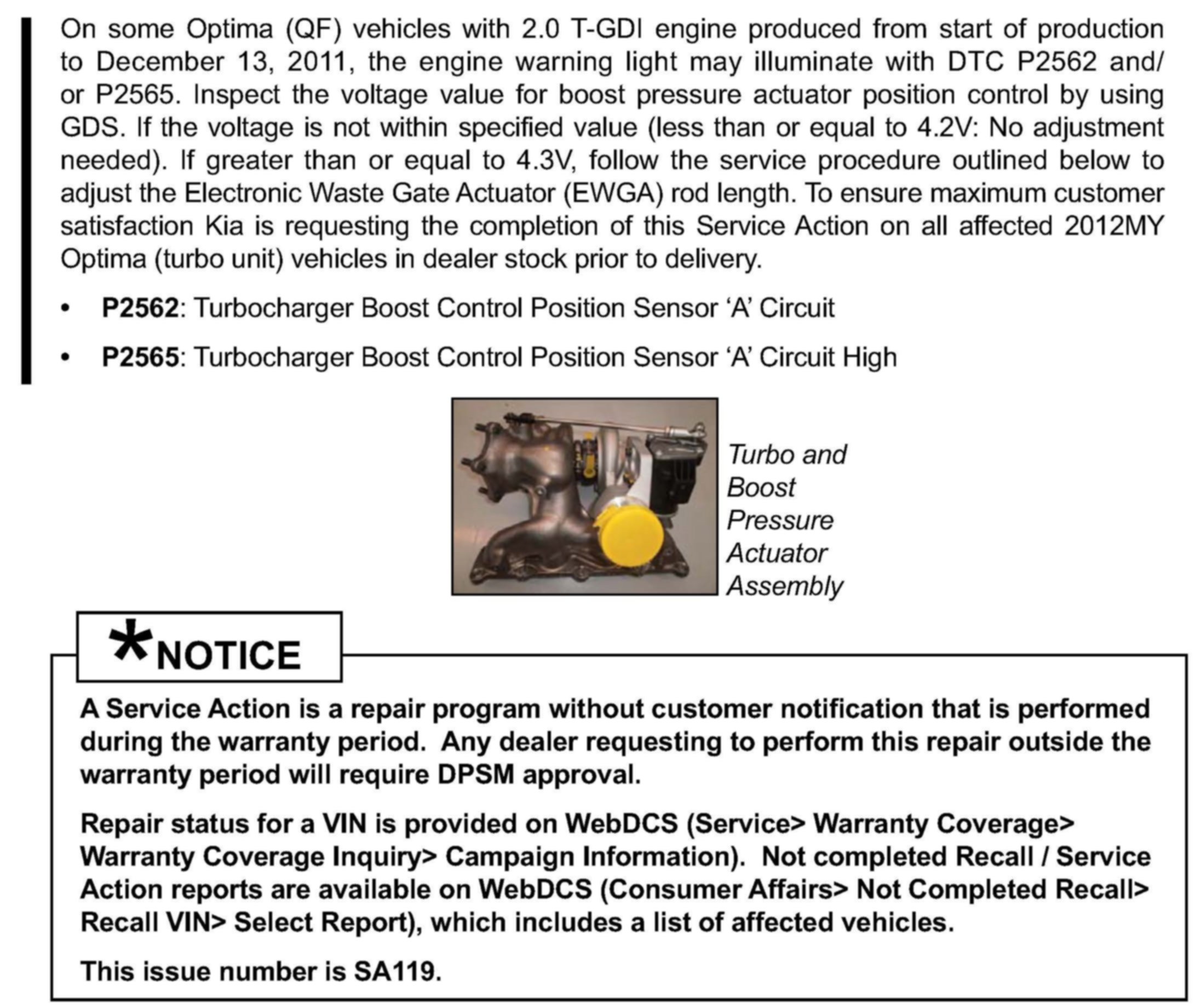

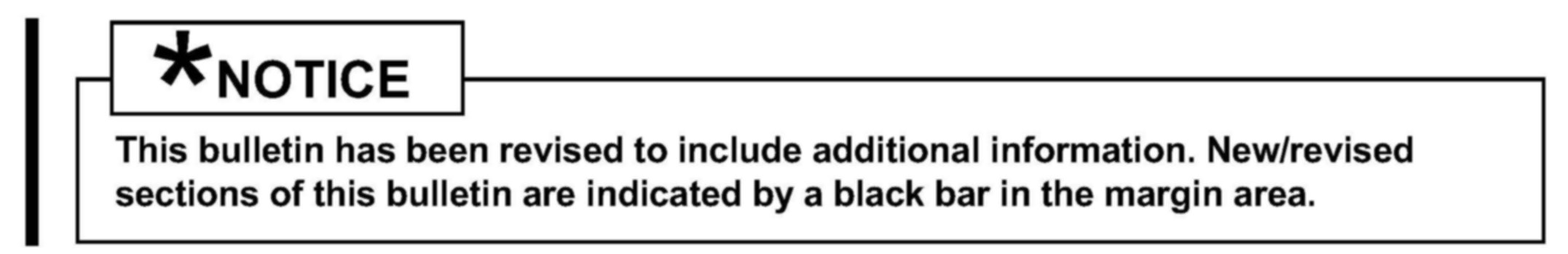

*NOTICE/Information

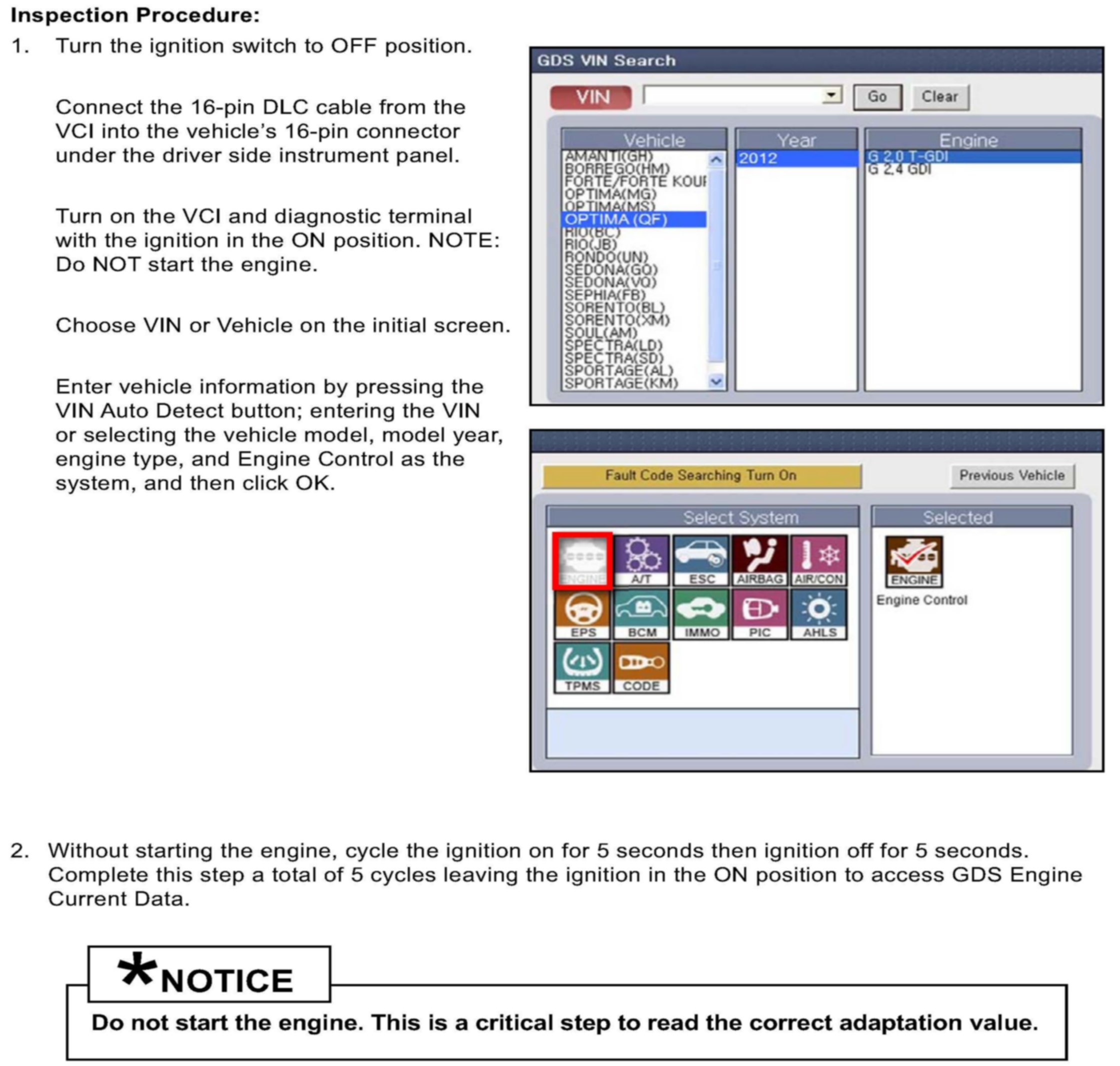

Inspection Procedure

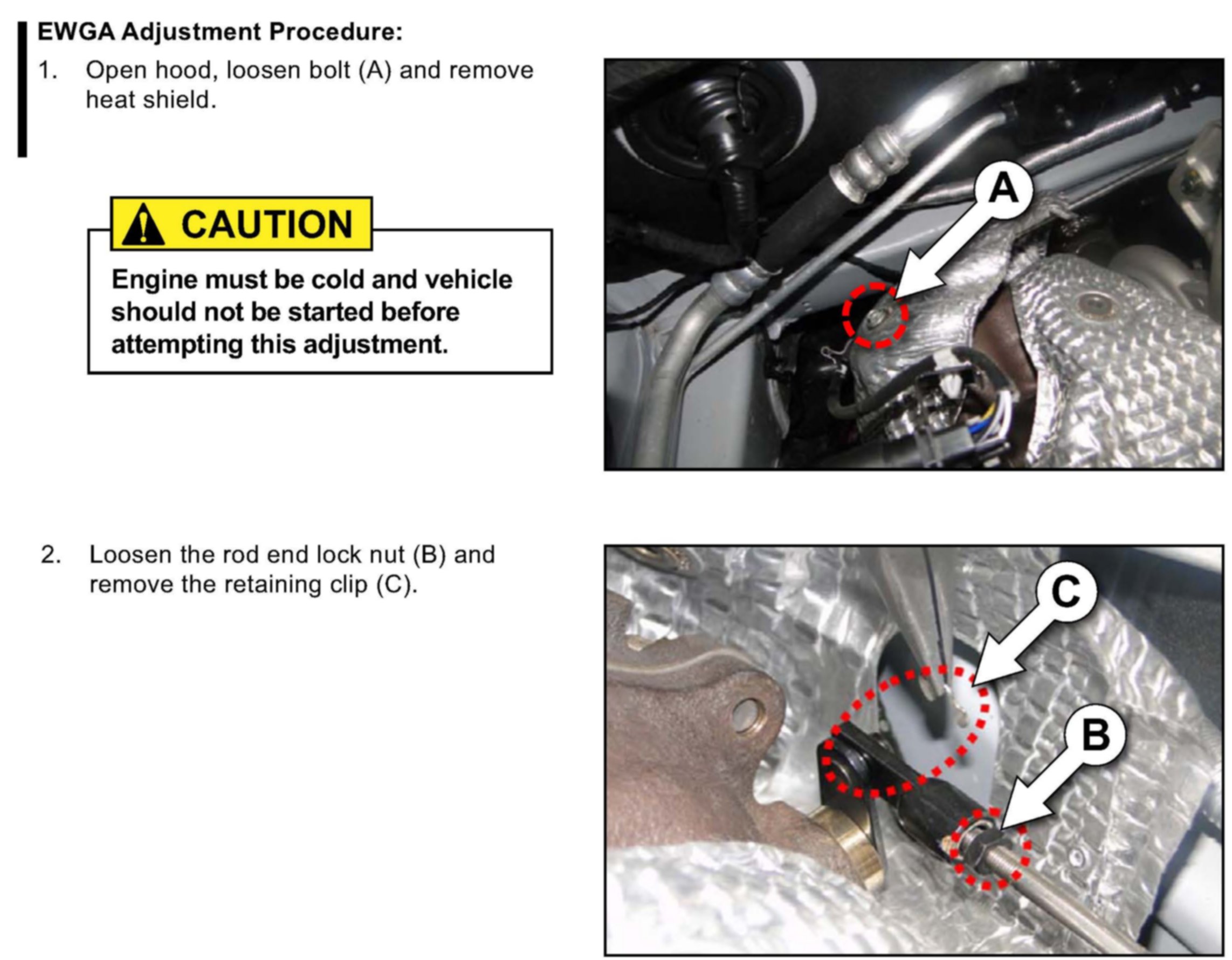

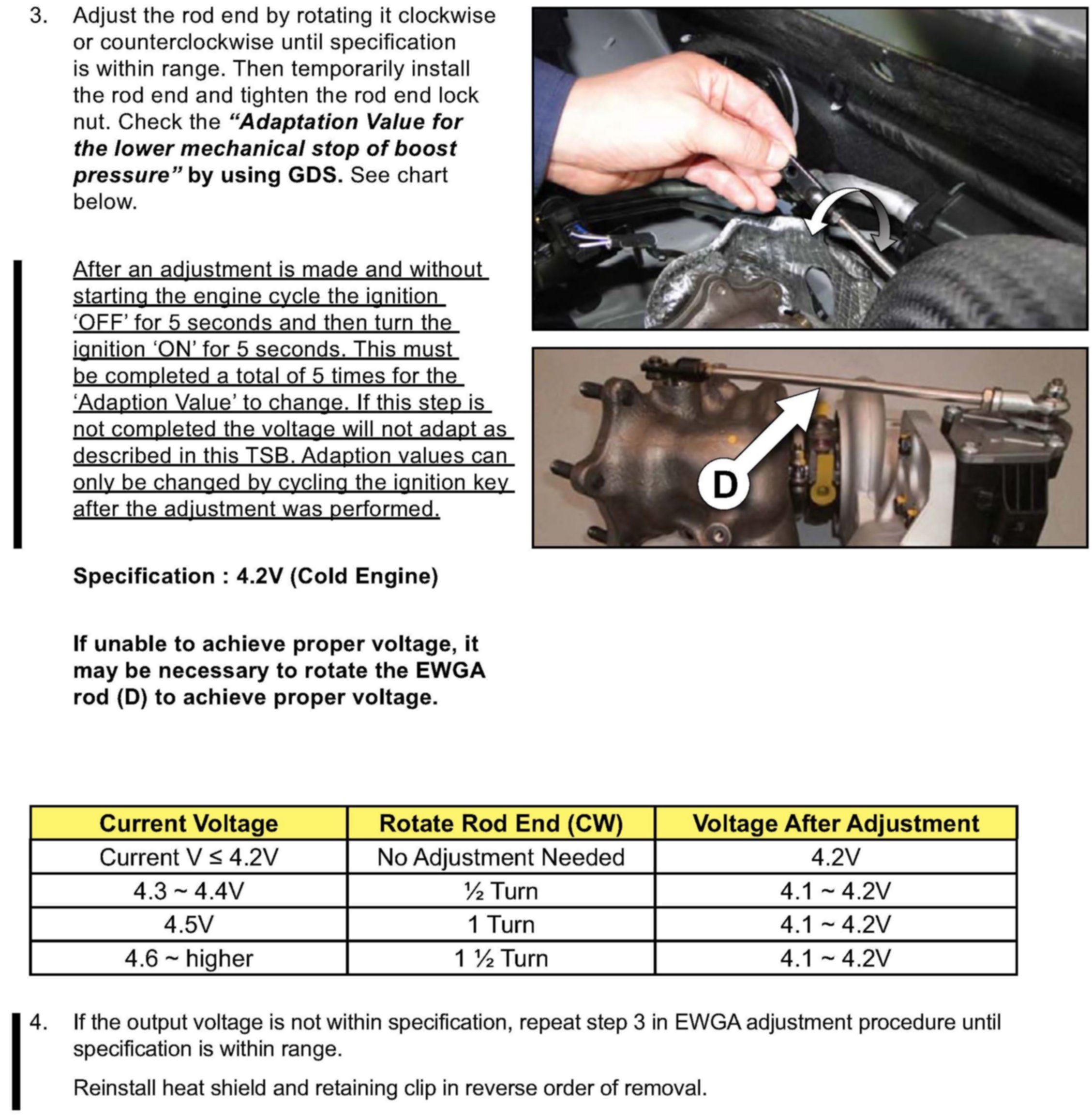

EWGA Adjustment Procedure





AFFECTED PRODUCTION RANGE

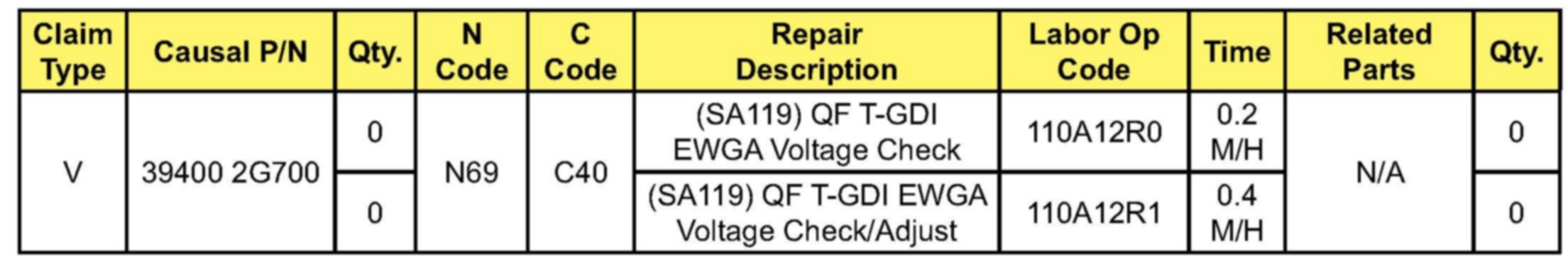

SERVICE ACTION WARRANTY CLAIM INFORMATION

*NOTICE
VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SA119 when accessing the WebDCS system.
