Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Rear Combination Lamp (OUT) RH

Rear Combination Lamp (OUT) RH

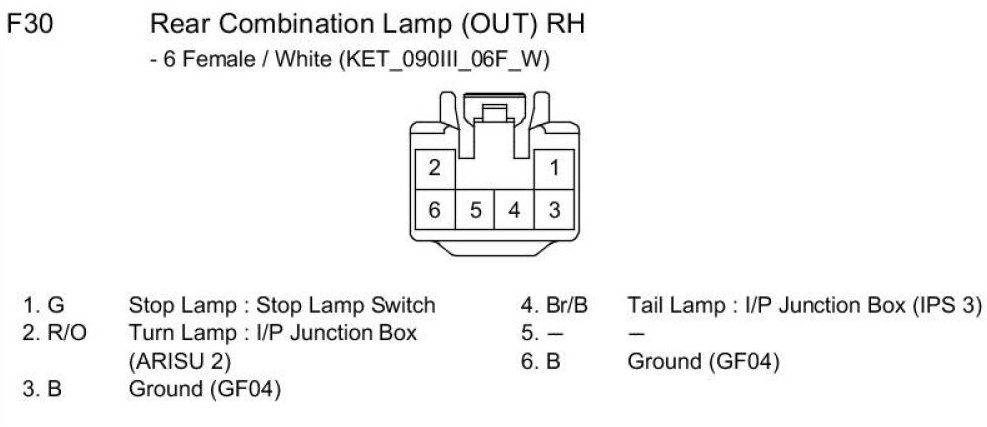

F30 Rear Combination Lamp (OUT) RH:
