System Diagram

SD824-1 Power Windows (1):

SD824-2 Power Windows (2):

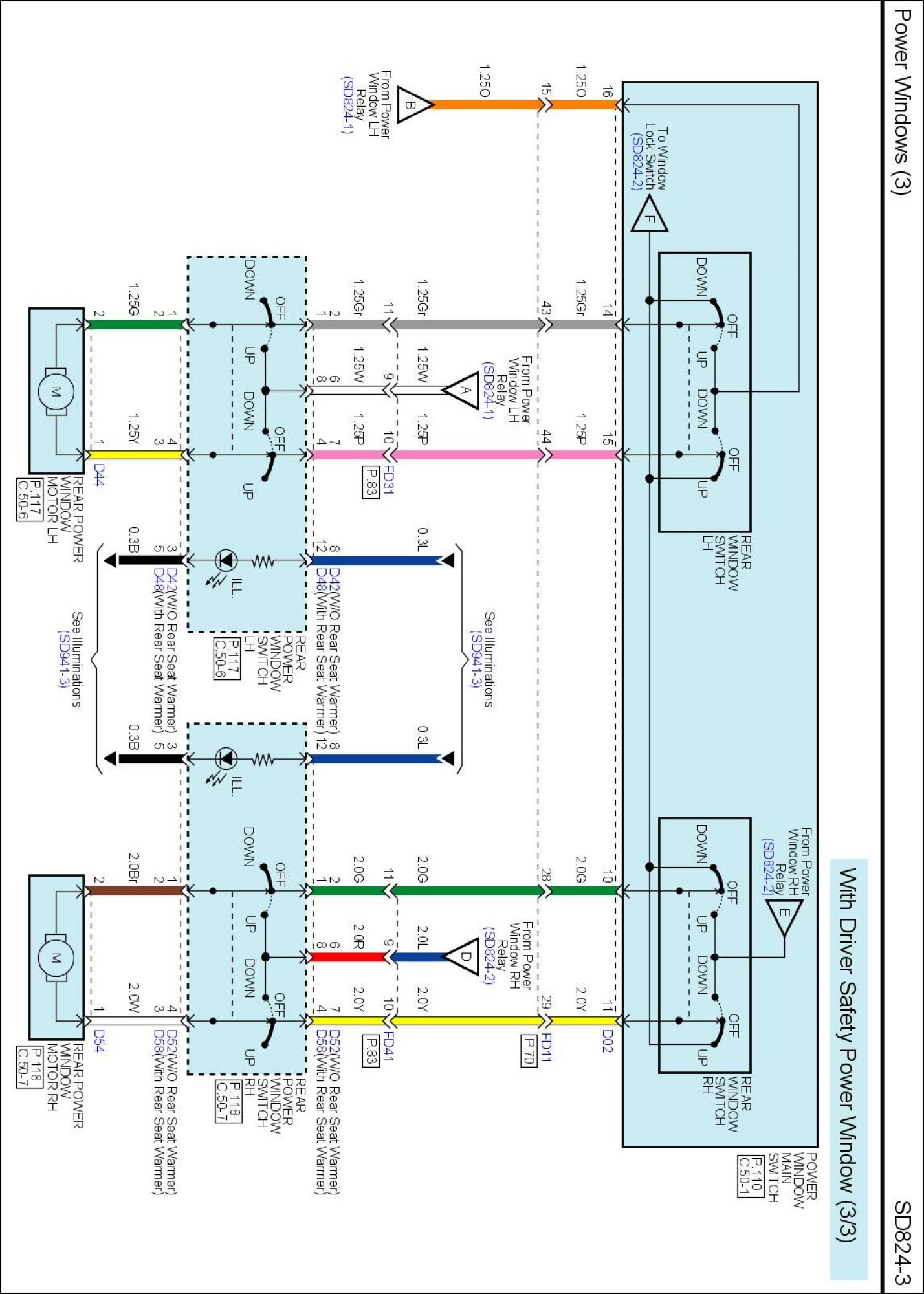

SD824-3 Power Windows (3):

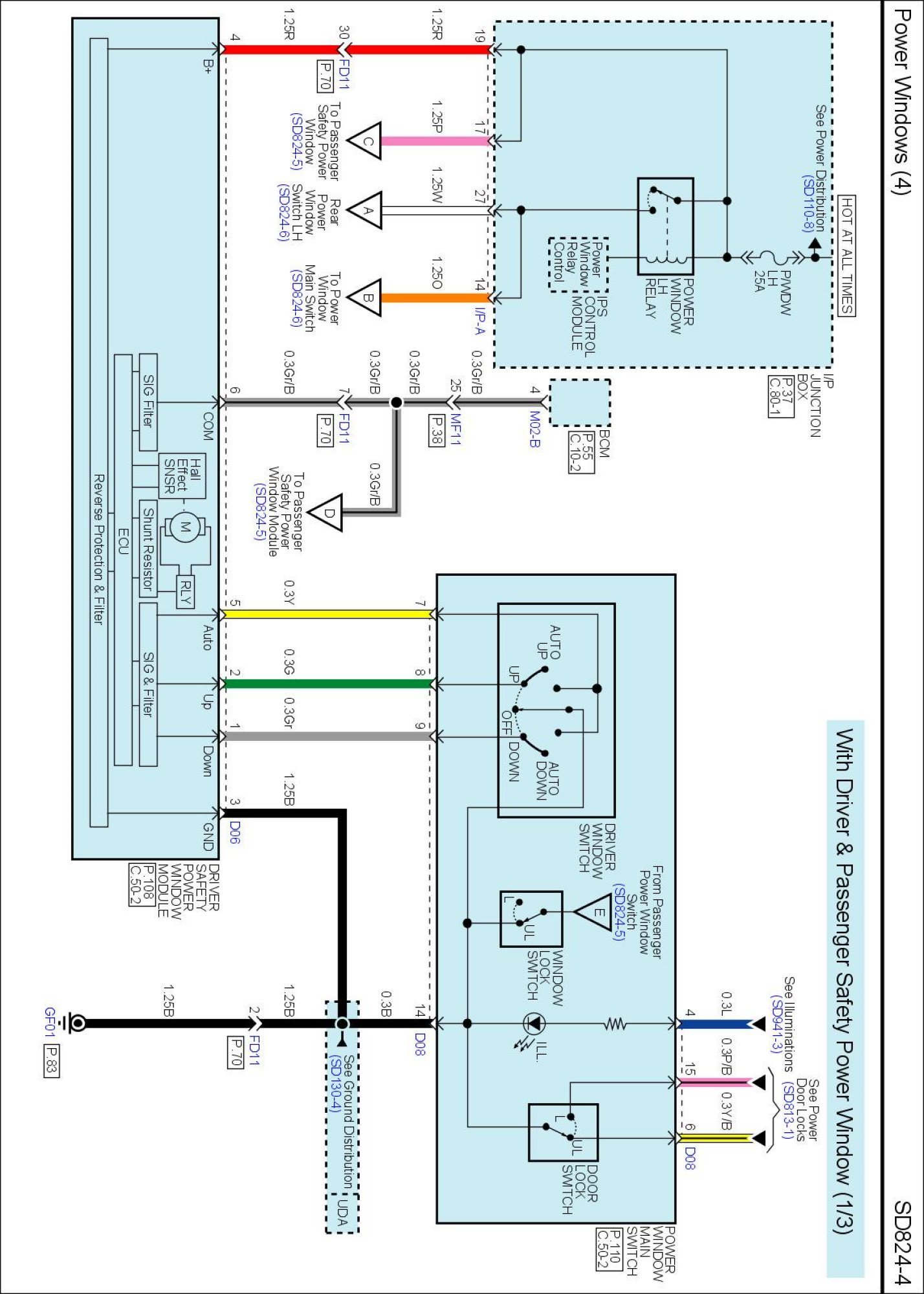

SD824-4 Power Windows (4):

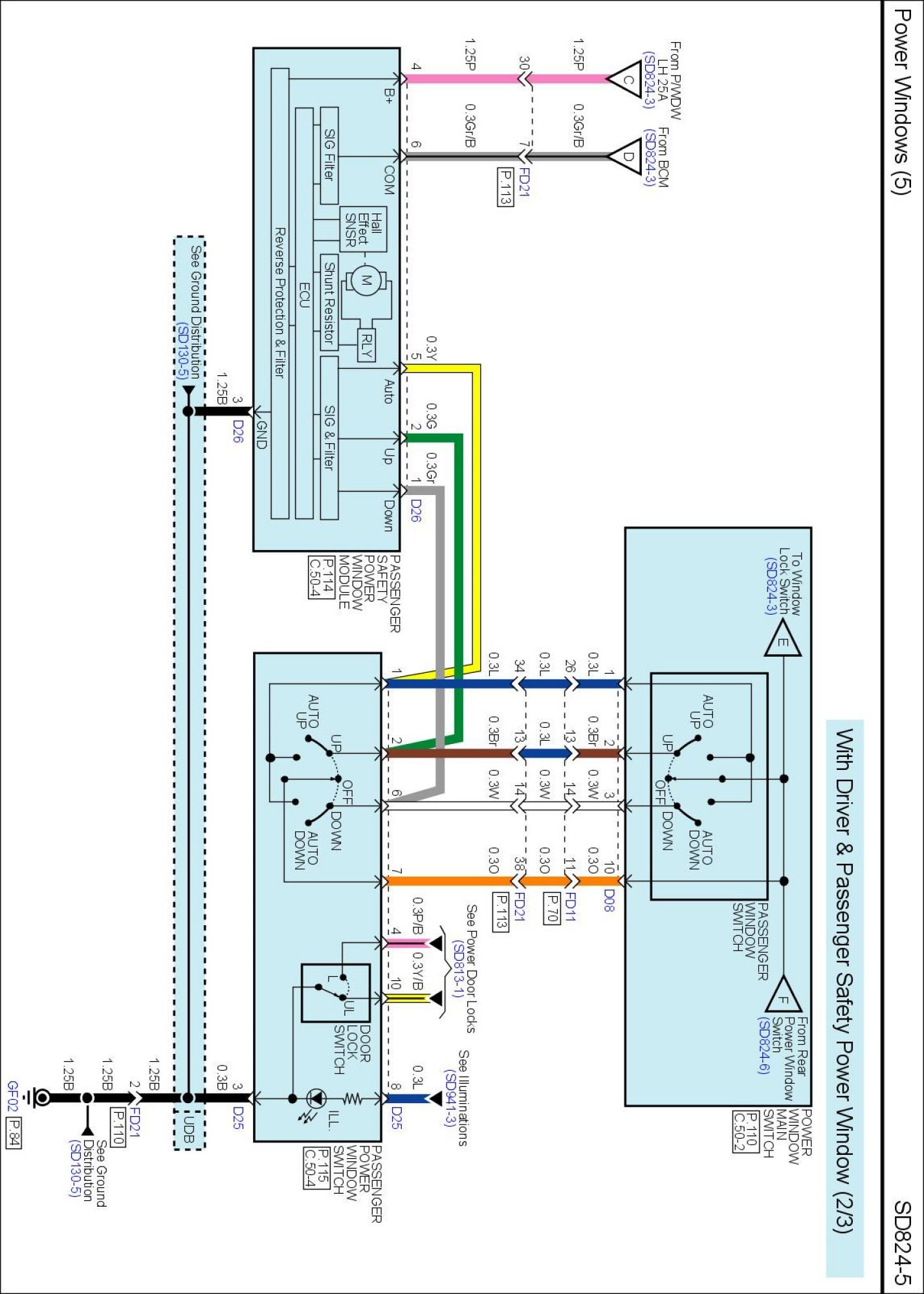

SD824-5 Power Windows (5):

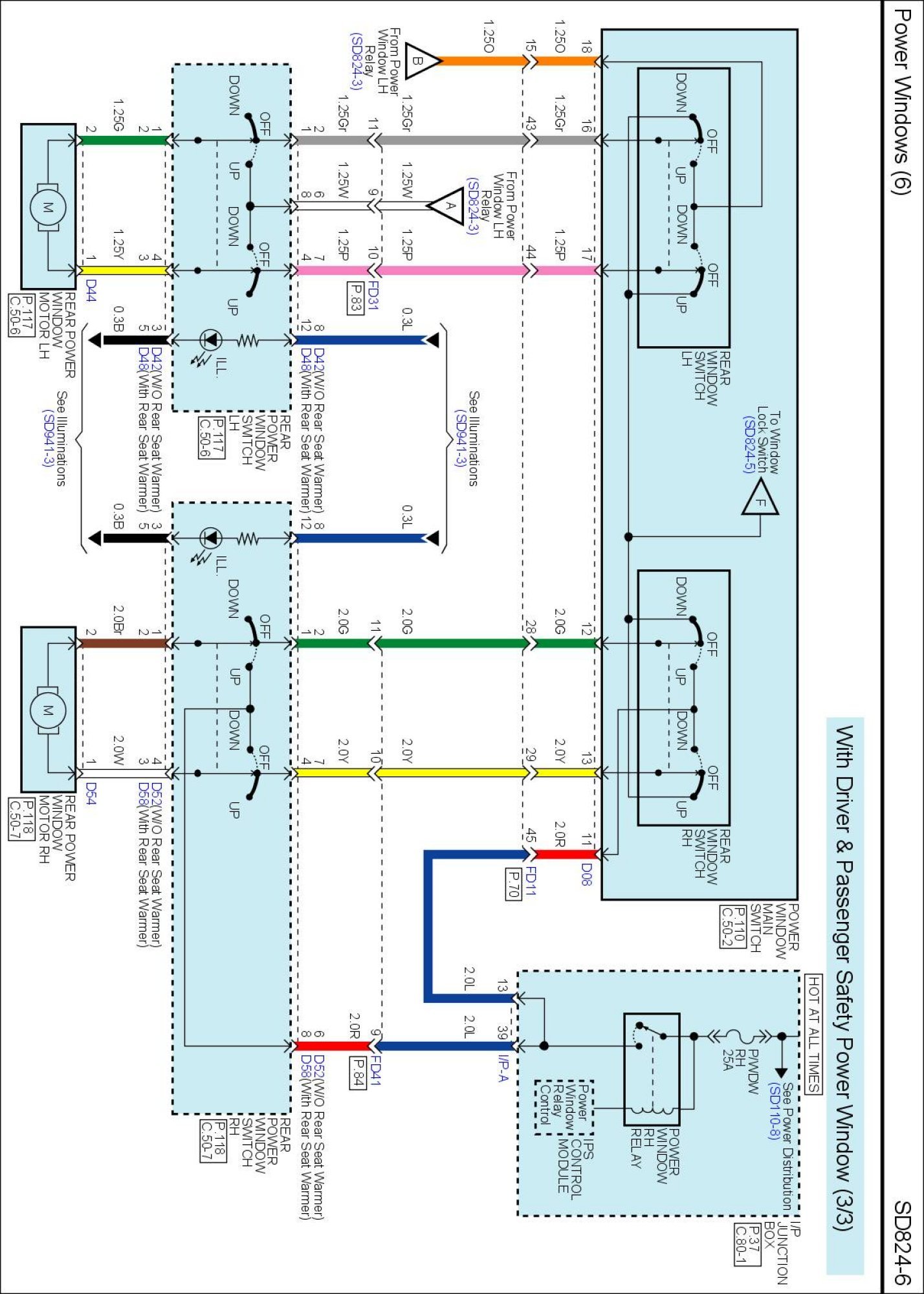

SD824-6 Power Windows (6):

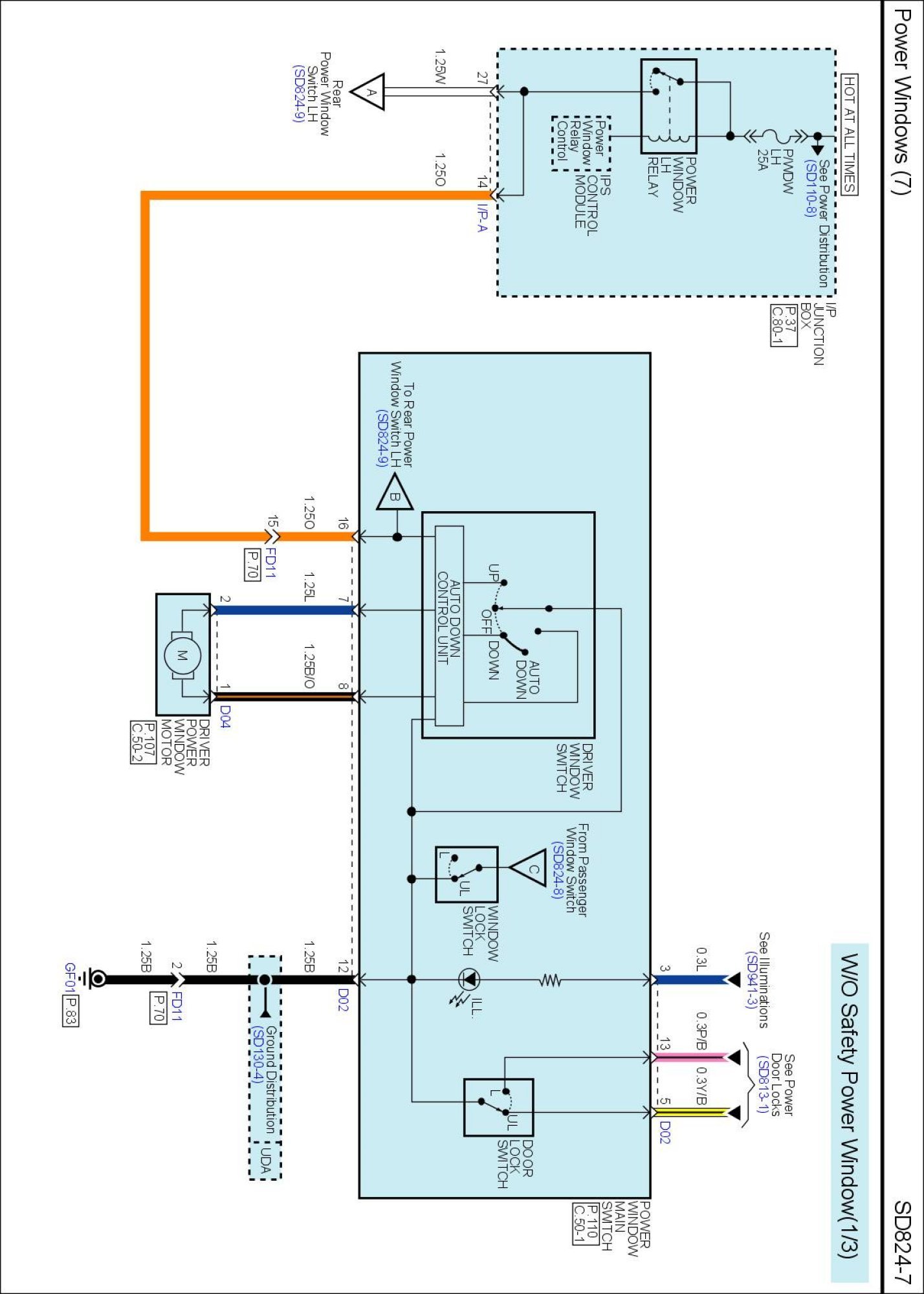

SD824-7 Power Windows (7):

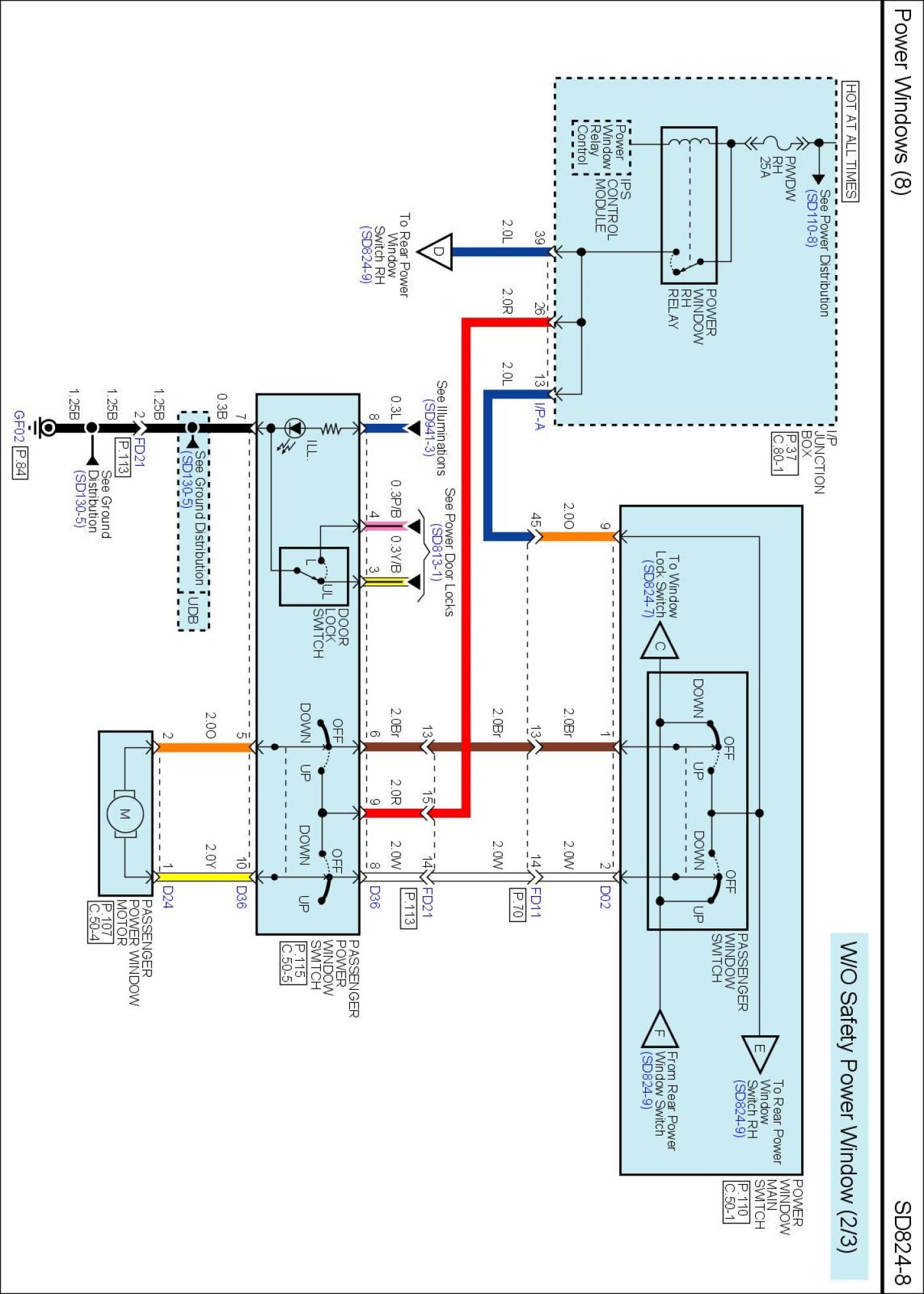

SD824-8 Power Windows (8):

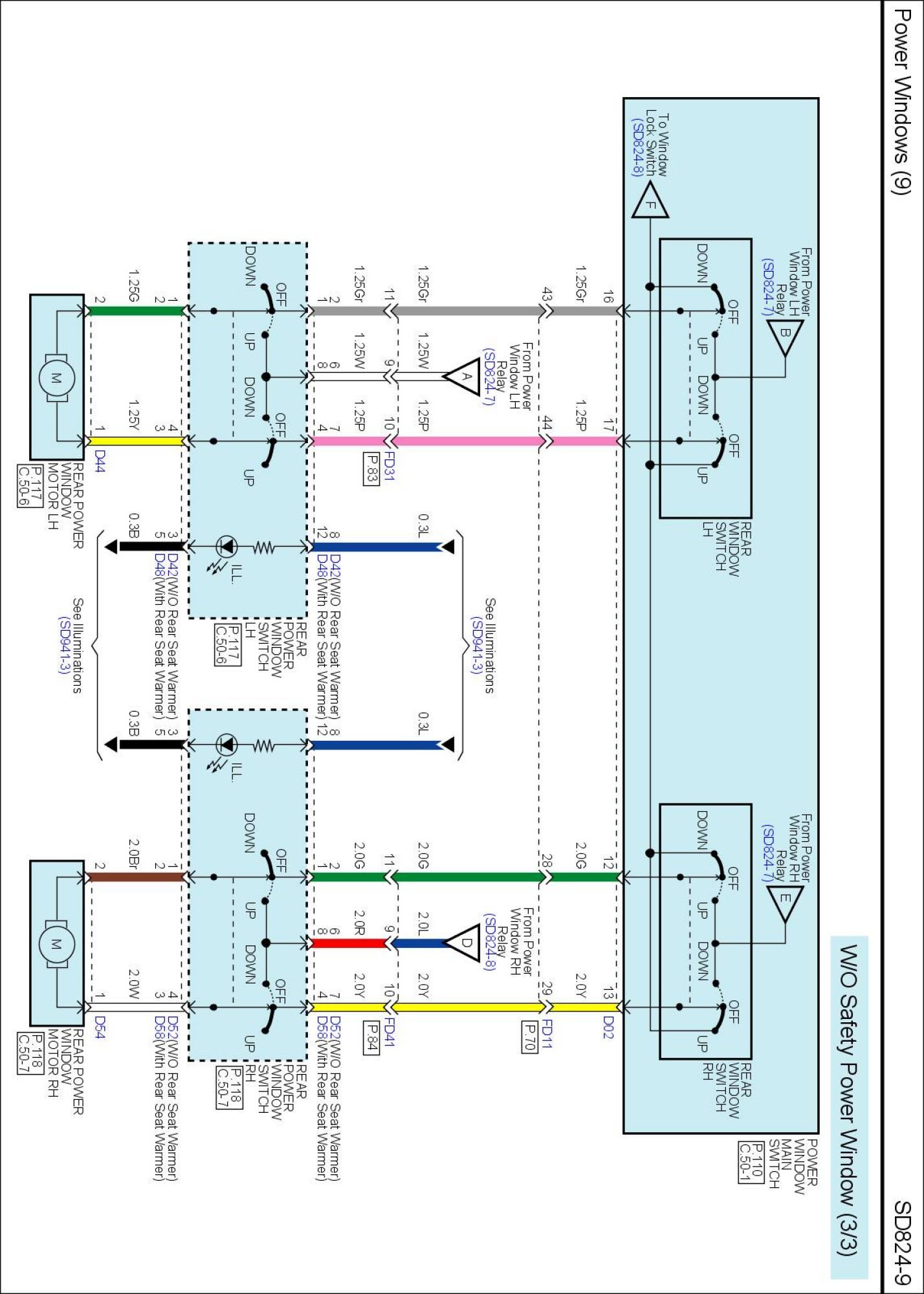

SD824-9 Power Windows (9):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
