Diagram Set SD879 (Glass & Outside Mirror Defogger)

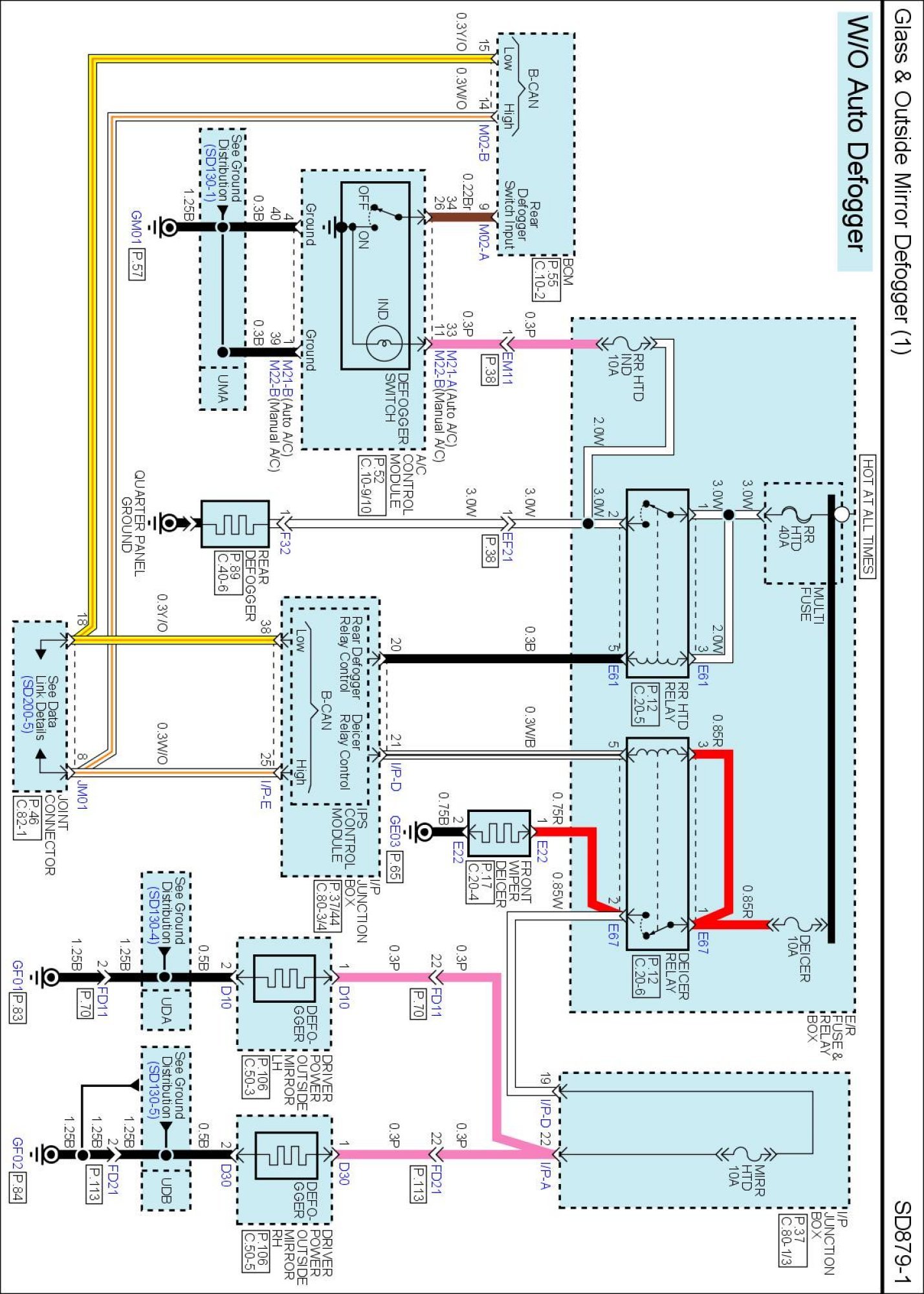

SD879-1 Glass & Outside Mirror Defogger (1):




SD879-2 Glass & Outside Mirror Defogger (2):

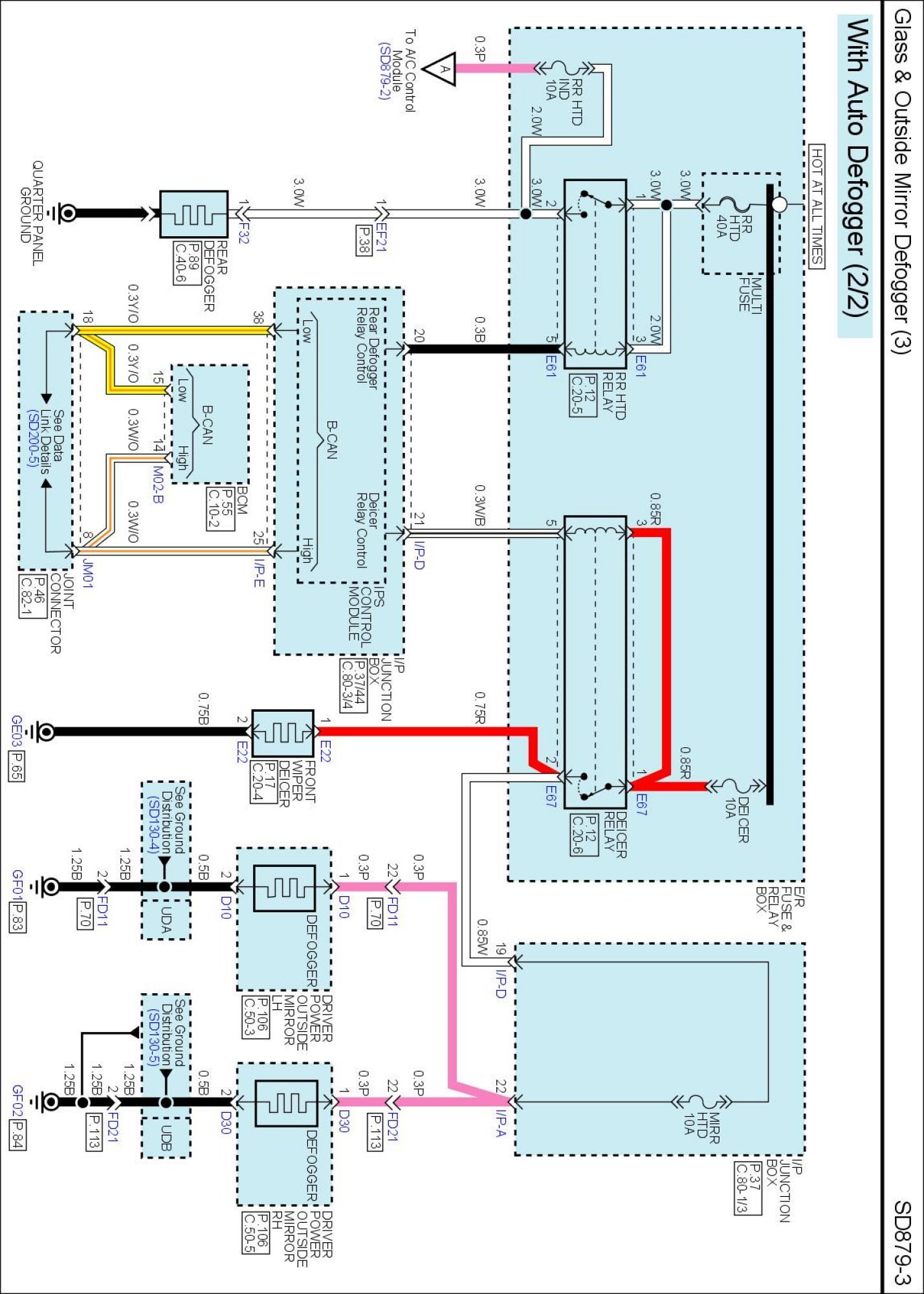

SD879-3 Glass & Outside Mirror Defogger (3):
