System Diagram

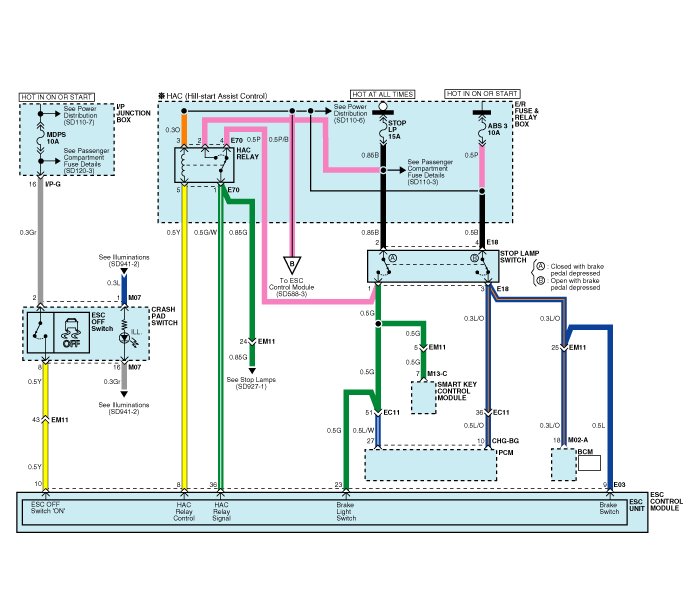

Circuit Diagram - ESC (1)

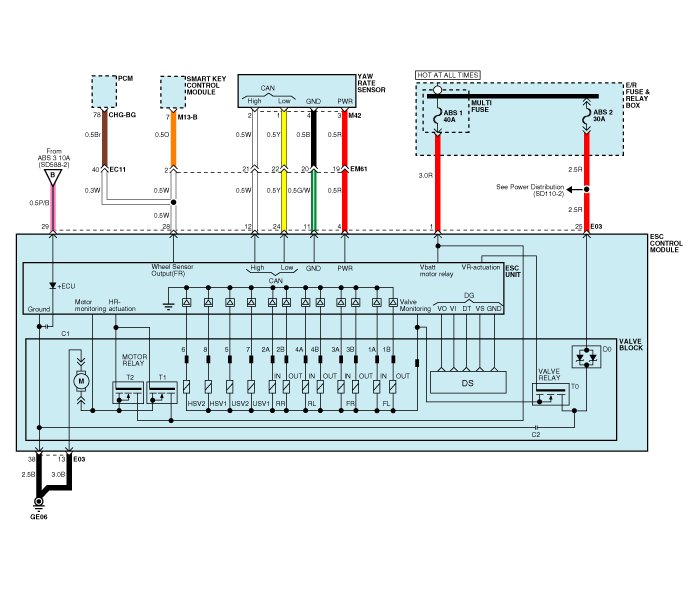

Circuit Diagram - ESC (2)

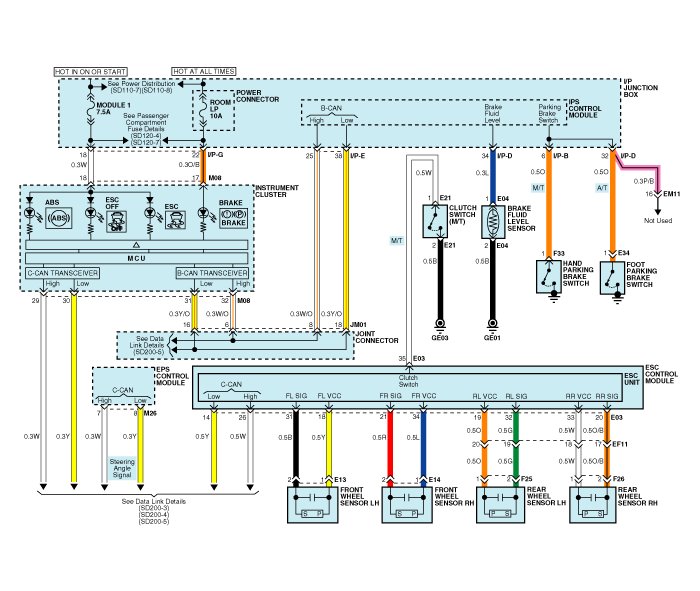

Circuit Diagram - ESC (3)

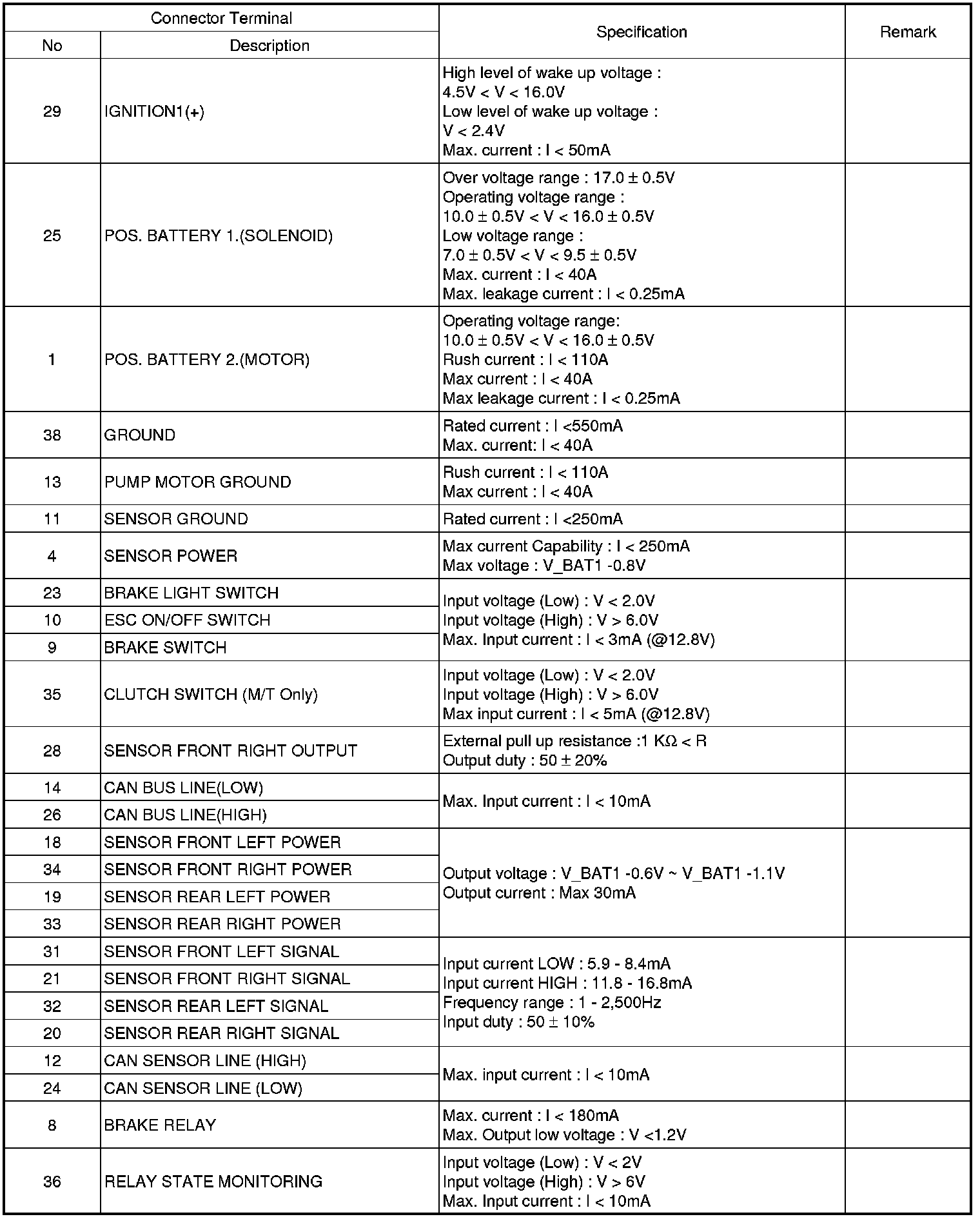

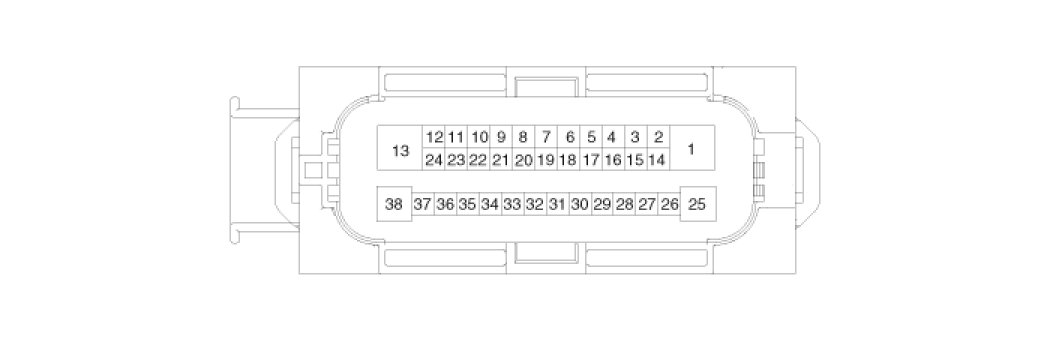

ESC connector input/output
