Repair Procedures

Brake Booster Operating Test

For simple checking of the brake booster operation, carry out the following tests.

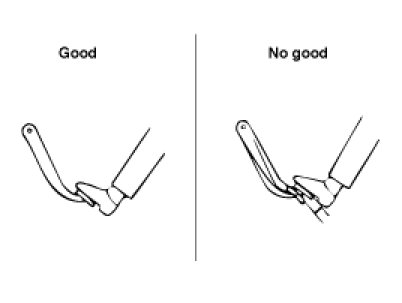

1. Run the engine for one or two minutes, and then stop it. If the pedal depresses fully the first time but gradually becomes higher when depressed succeeding times, the booster is operating properly, if the pedal height remains unchanged, the booster is inoperative.

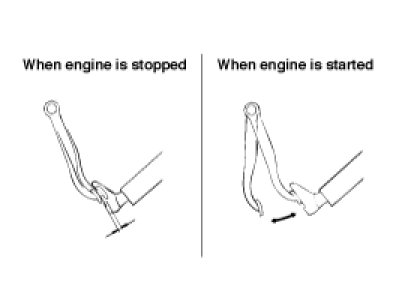

2. With the engine stopped, step on the brake pedal several times.
Then step on the brake pedal and start the engine. If the pedal moves downward slightly, the booster is in good condition. If there is no change, the booster is inoperative.




3. With the engine running, step on the brake pedal and then stop the engine.Hold the pedal depressed for 30 seconds. If the pedal height does not change, the booster is in good condition, if the pedal falls, the booster is inoperative.
If the above three tests are okay, the booster performance can be determined as good.
Even if one of the above three tests is not okay, check the check valve, vacuum hose and booster for malfunction.






Removal

Brake Booster
1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Remove the air duct (B) and air cleaner assembly (A).




3. Disconnect the vacuum hose (A) from the brake booster.




4. Remove the master cylinder.
5. Remove the snap pin (A) and clevis pin (B).




6. Remove the mounting nuts.

Tightening torque:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)




7. Remove the brake tube.




8. Remove the brake booster.





Vacuum Pump
1. Turn ignition switch OFF.
2. Remove the under covers (A, B).

Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)





NOTE:
When removing the under cover (B), unfasten the mounting bracket bolts and then remove the under cover and mounting bracket assembly.

3. Disconnect the vacuum pump connector (A).




4. Disconnect the vacuum hose (A).




5. Loosen the vacuum pump bracket bolts (A), and then remove vacuum pump and bracket.

Tightening torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)




6. Remove the 2 bolts (B), and then remove the bracket from vacuum pump.

Inspection

1. Inspect the check valve in the vacuum hose, intensifier and the connecting section.

CAUTION:
Do not remove the check valve from the vacuum hose.

2. Check the boot for damage.

Installation

Brake Booster
1. Installation is the reverse of removal.

CAUTION:
- Before installing the pin, apply the grease to the joint pin.
- Use a new snap pin whenever installing.

2. Adjust the brake pedal height and free play.


Vacuum Pump
1. Installation is the reverse of removal.
2. Tighten the vacuum pump mounting bolts to the specified torque.
