Fuel Door Switch: Testing and Inspection

Inspection

1. Remove the driver door trim.

2. Remove the switch assembly connector (A) from the door trim.

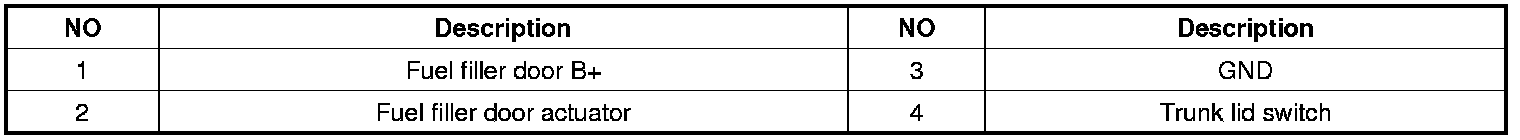

3. Check for continuity between the terminal No.1 and No.2.









4. Remove the fuel filler door switch assembly (A) after pressing the fixing clips (B).
