Exterior Moulding / Trim: Service and Repair

Replacement

Roof Molding Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Using a screwdriver or remover, remove the roof molding (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Fender Garnish Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Using a screwdriver or remover, remove the fender garnish (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

C Pillar Molding Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Using a screwdriver or remover, remove the C pillar molding (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Front Wheel Guard And Mud Guard Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the front tire.

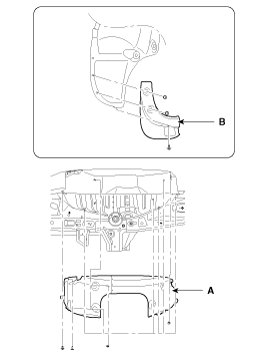

2. After loosening the mounting clips and screws, then remove the front wheel guard (A), mud guard (B).




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Rear Wheel Guard And Mud Guard Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the rear tire.

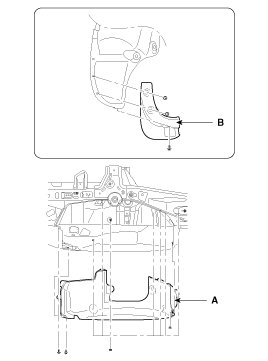

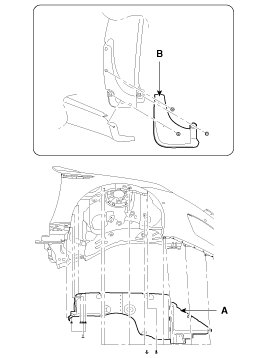

2. After loosening the mounting clips and nut, then remove the rear wheel guard (A) and mud guard (B)

[RH]





[LH]




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Side Sill Molding Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Loosen the mounting screws.

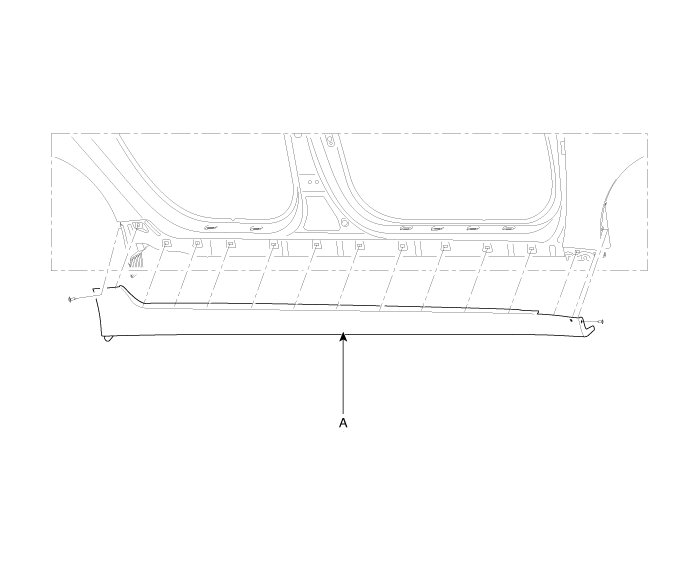

2. Using a screwdriver or remover, remove the side sill molding (A).
3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips
