Body - Front Bumper Cover Mounting Change
NUMBER 076GROUP Body
DATE June, 2011
MODEL Optima (TF) 2011MY
SUBJECT: OPTIMA (TF) FRONT BUMPER COVER MOUNTING CHANGE

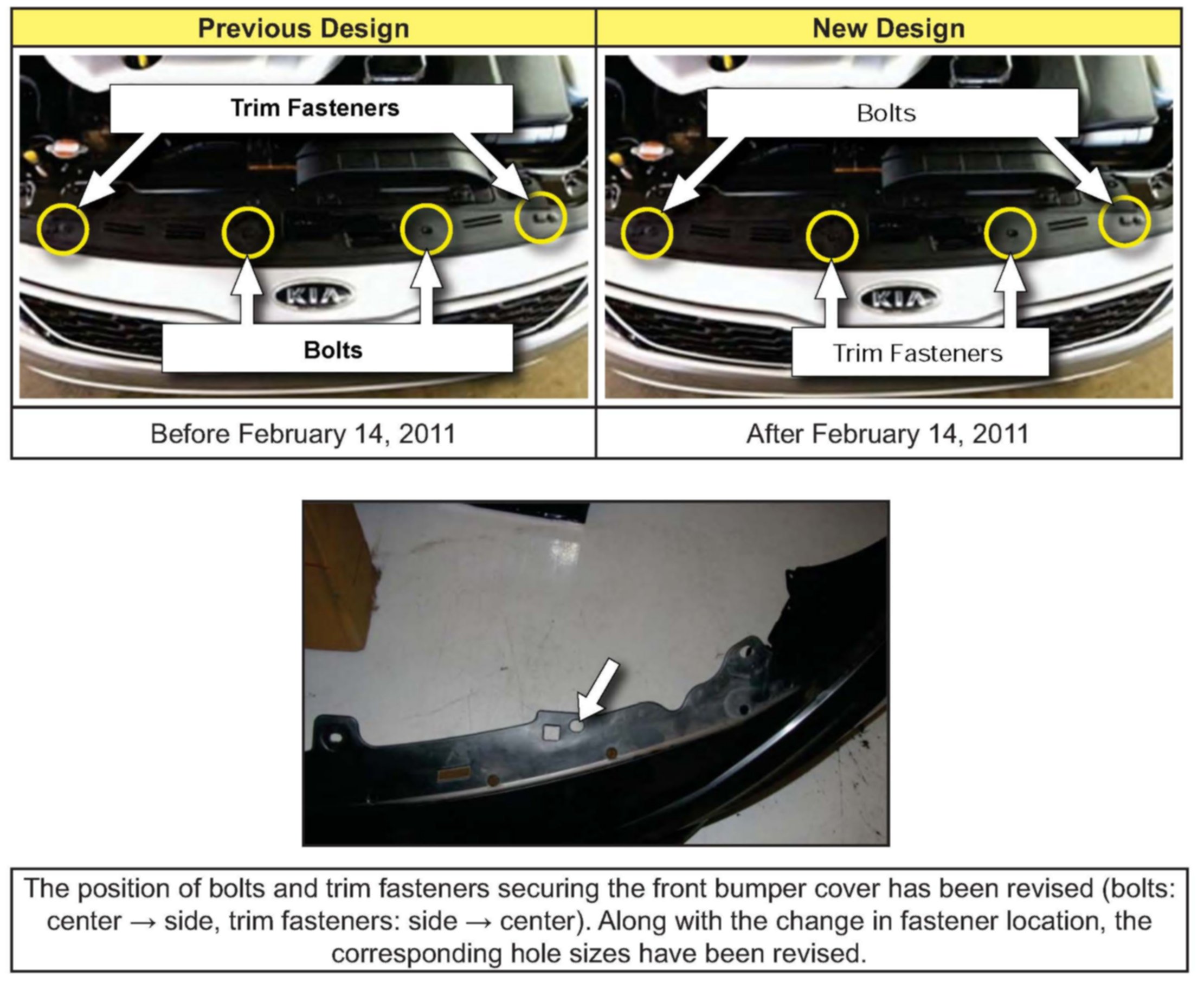

This bulletin provides information related to changes in the front bumper cover and its mounting method on Optima vehicles produced from February 14, 2011 and later. The position of the bolts and fasteners securing the front bumper cover has changed. This bulletin provides information regarding these changes and provides the updated bumper cover part numbers.
Re-working front bumper
Supply of the old design front bumper cover has been discontinued (as a service part). When replacing an old design front bumper cover on a vehicle (built prior to 2/14/2011) with a new design cover you will need to first widen both side holes on the new design front bumper cover from approximately 7 mm to:
- R-Hand Side: 9x12 mm, L-Hand Side: 10x12 mm and then assemble using existing trim fasteners. The existing bolts can be installed through the two (2) center holes of the new front bumper cover design without any additional modifications.

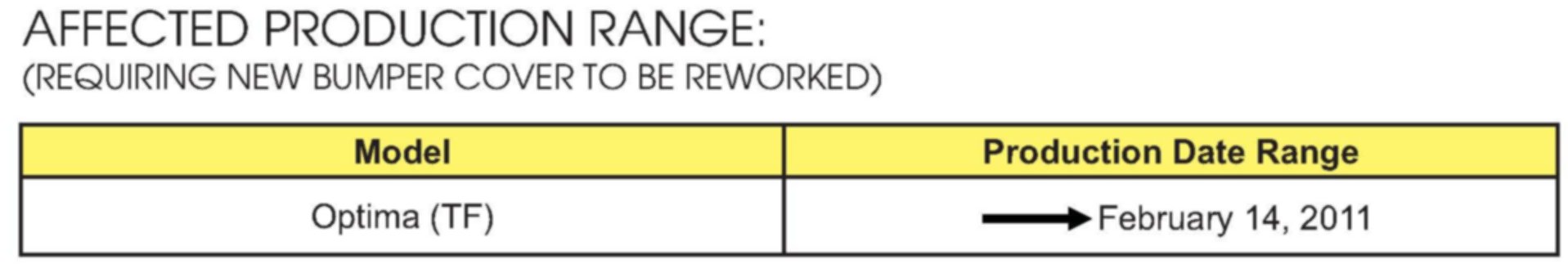

AFFECTED PRODUCTION RANGE

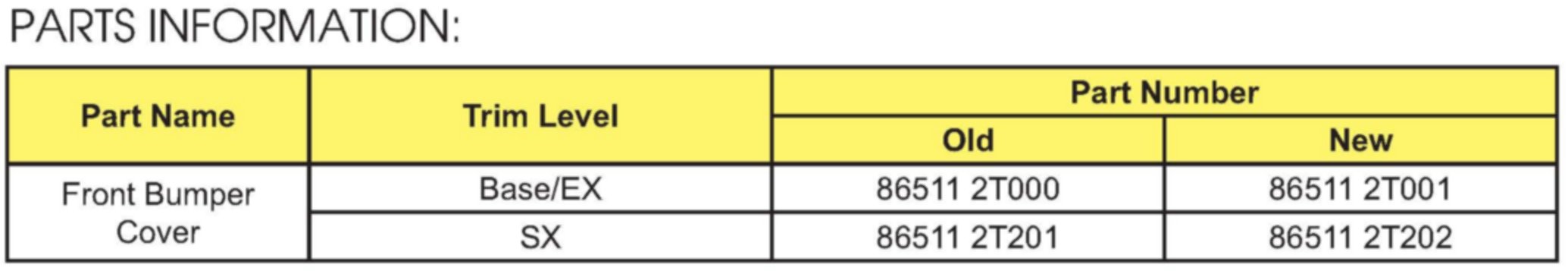

PARTS INFORMATION
