Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Locations

Entertainment Systems: Locations

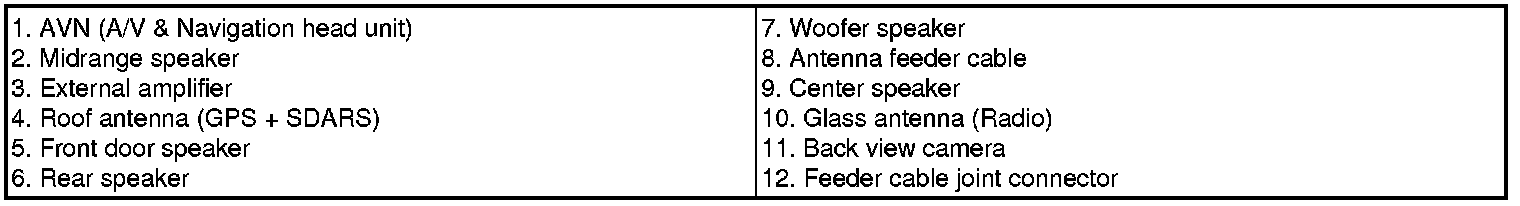

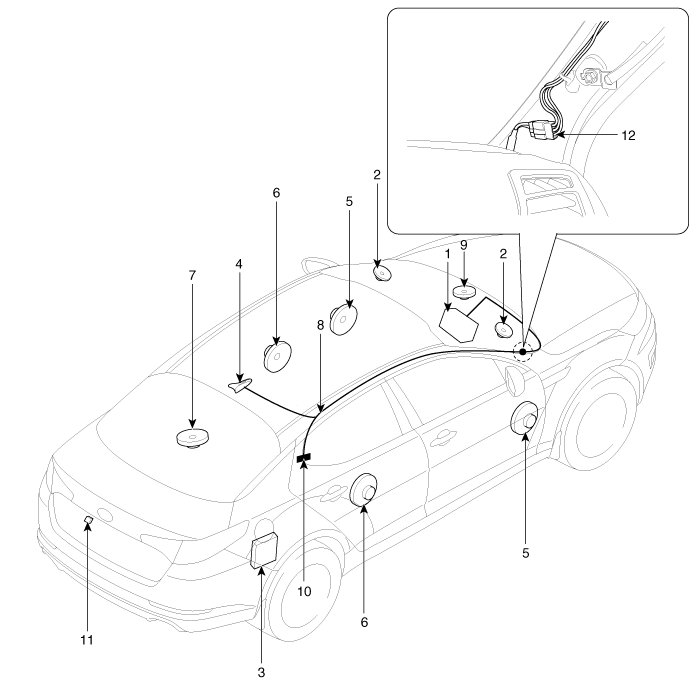

Components Location









** SDARS : Satellite Digital Audio Radio Service

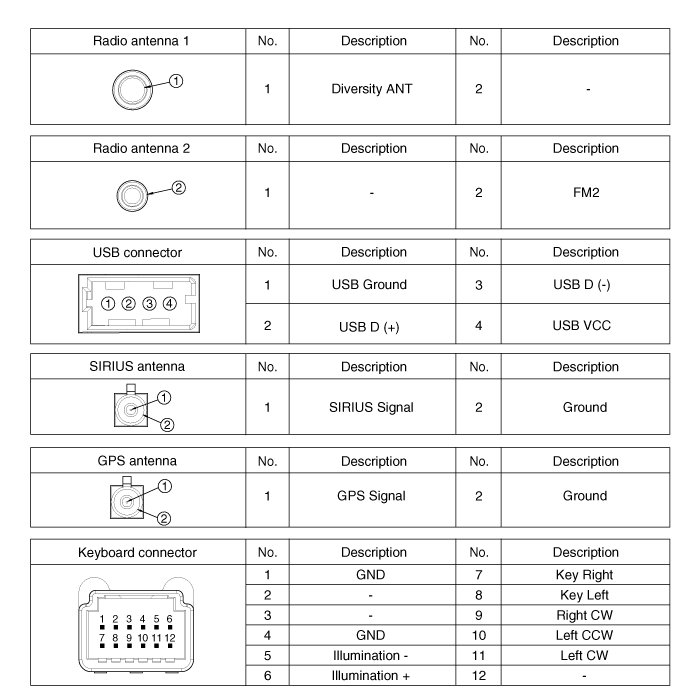

Components

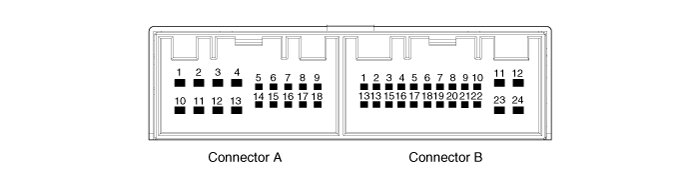

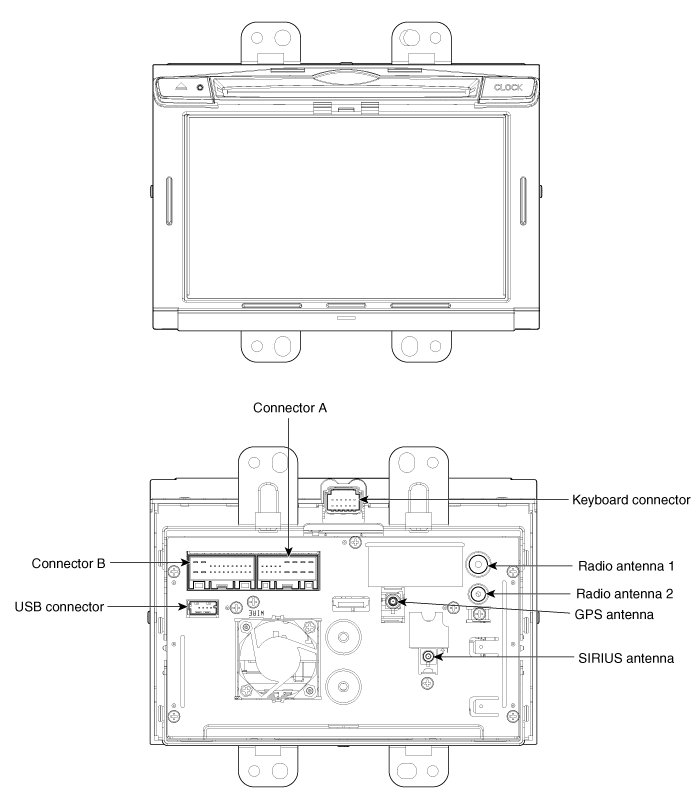

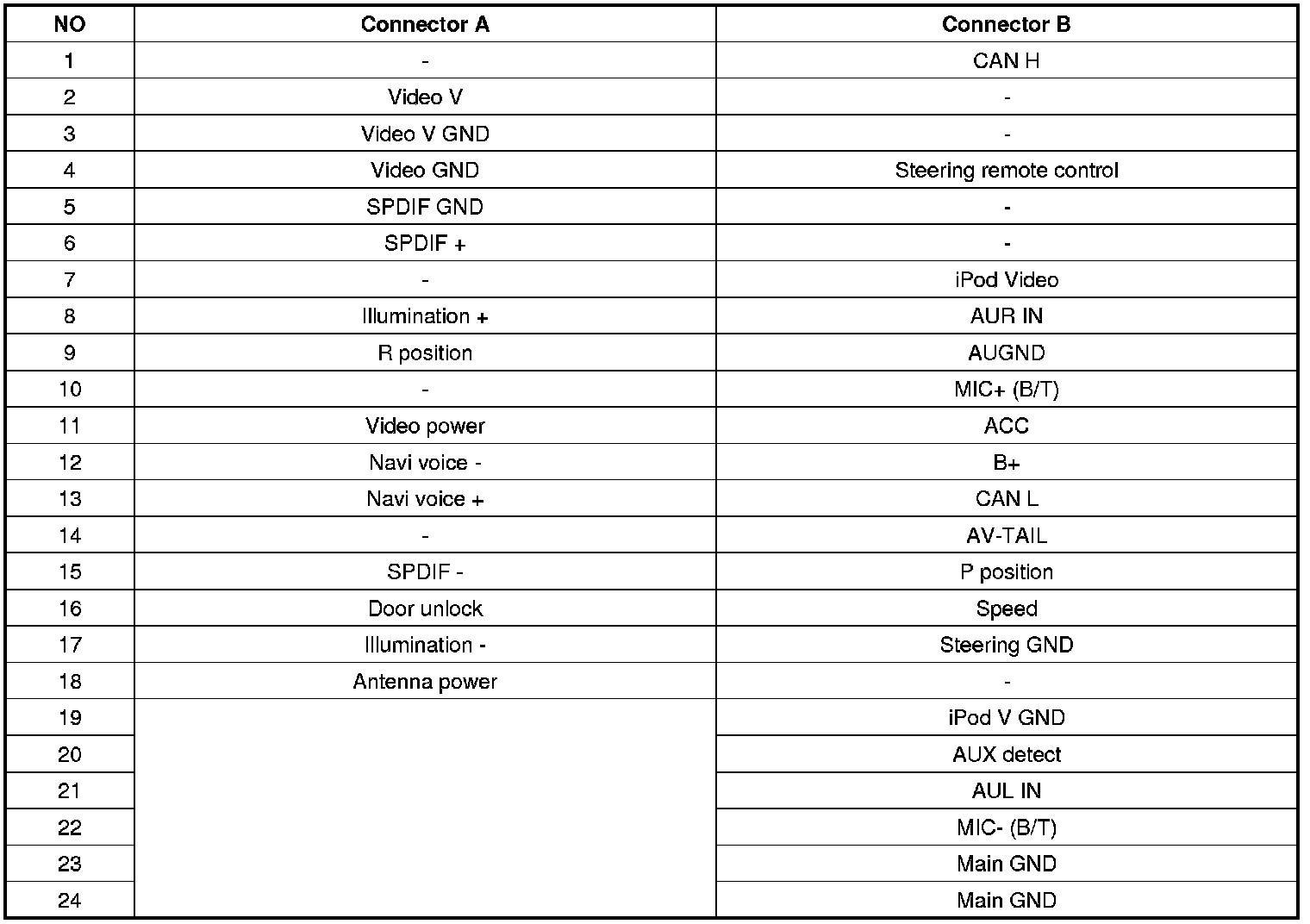

AVN (A/V & Navigation) Head Unit Connector
