Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Starting System >> Service and Repair >> Smart Key System >> Components and Components Location

Components and Components Location

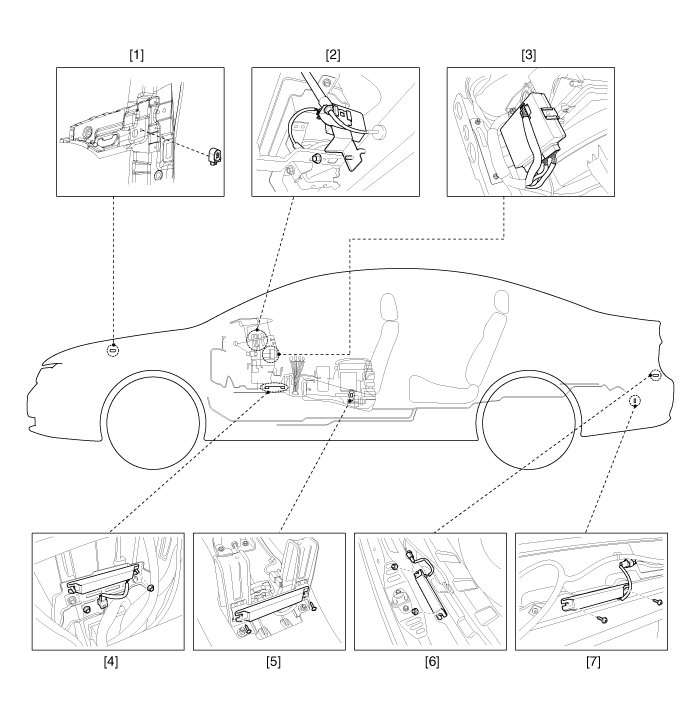

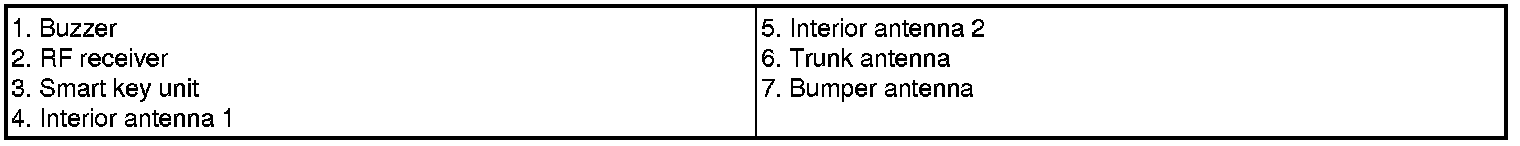

Component Location (1)

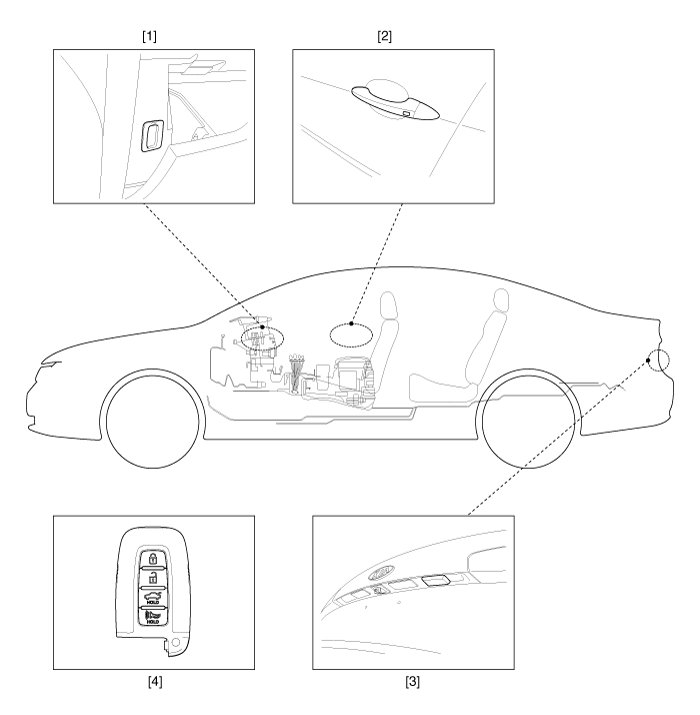

Component Location (2)
