System Inspection

P2503 No Battery Charge

Inspection/Repair - System Inspection

System Inspection

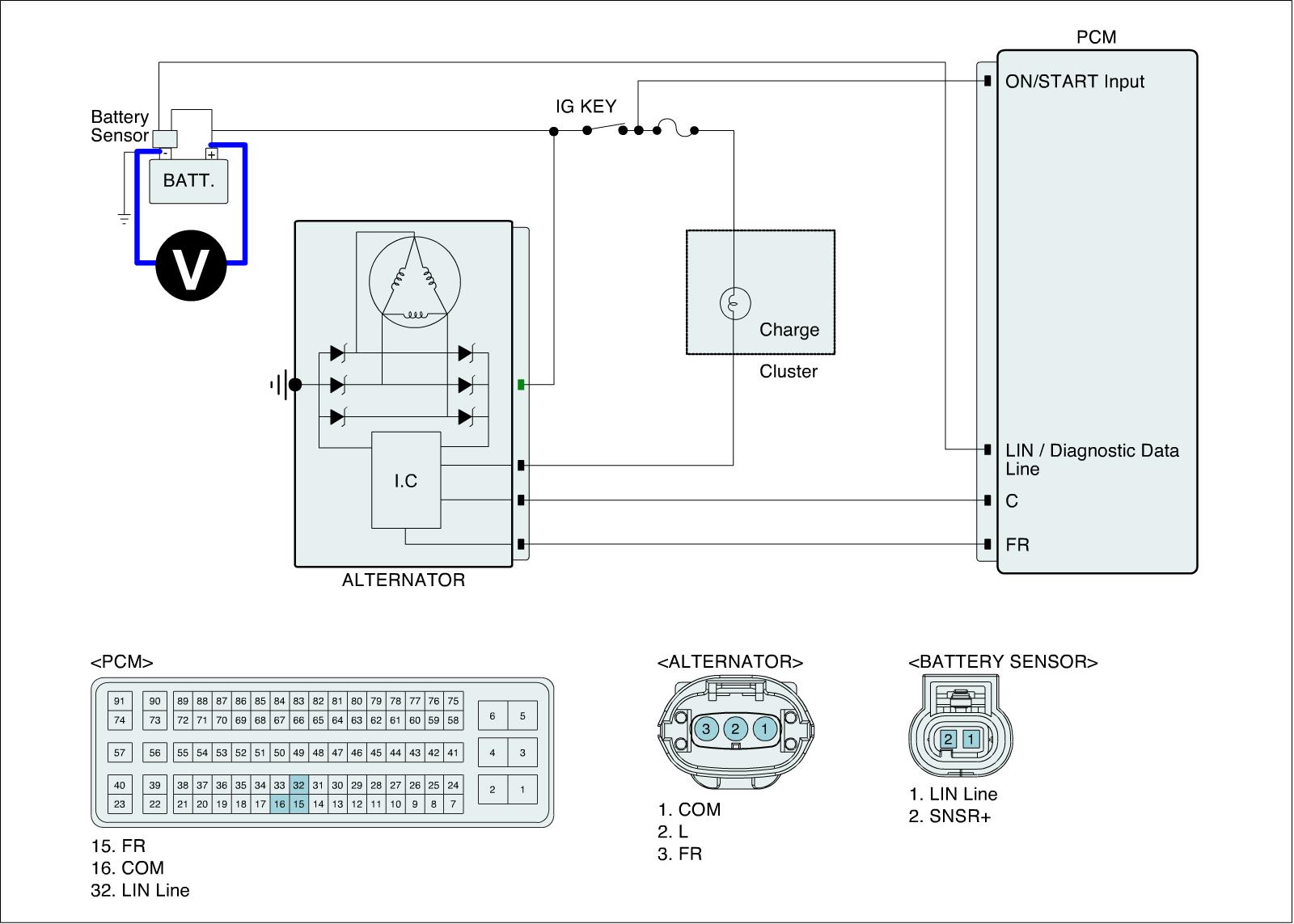

Check Generator circuit
1. Engine starts.
2. Maintain ENG RPM 2,500 RPM over 2 minutes.
3. Measure voltage between the battery terminal (+) and the battery terminal (-).

Specification : Approx. 12.5 - 14.7 V

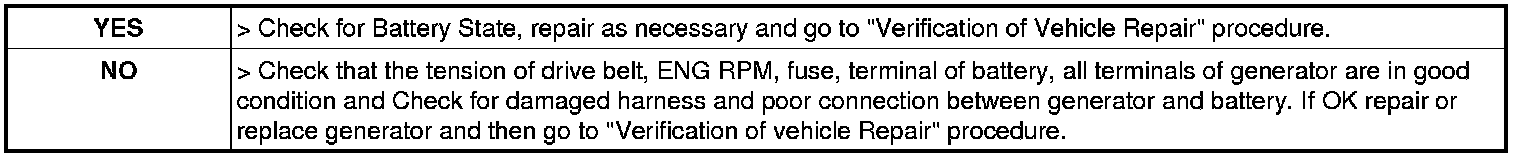

4. Is the measured voltage within specification?
