Component Inspection

P06A5 Sensor Reference Voltage \'D\' Circuit High

Inspection/Repair - Component Inspection

Component Inspection

1. Air-Con Pressure Transducer
(1) Connect GDS and select Oscilloscope menu.

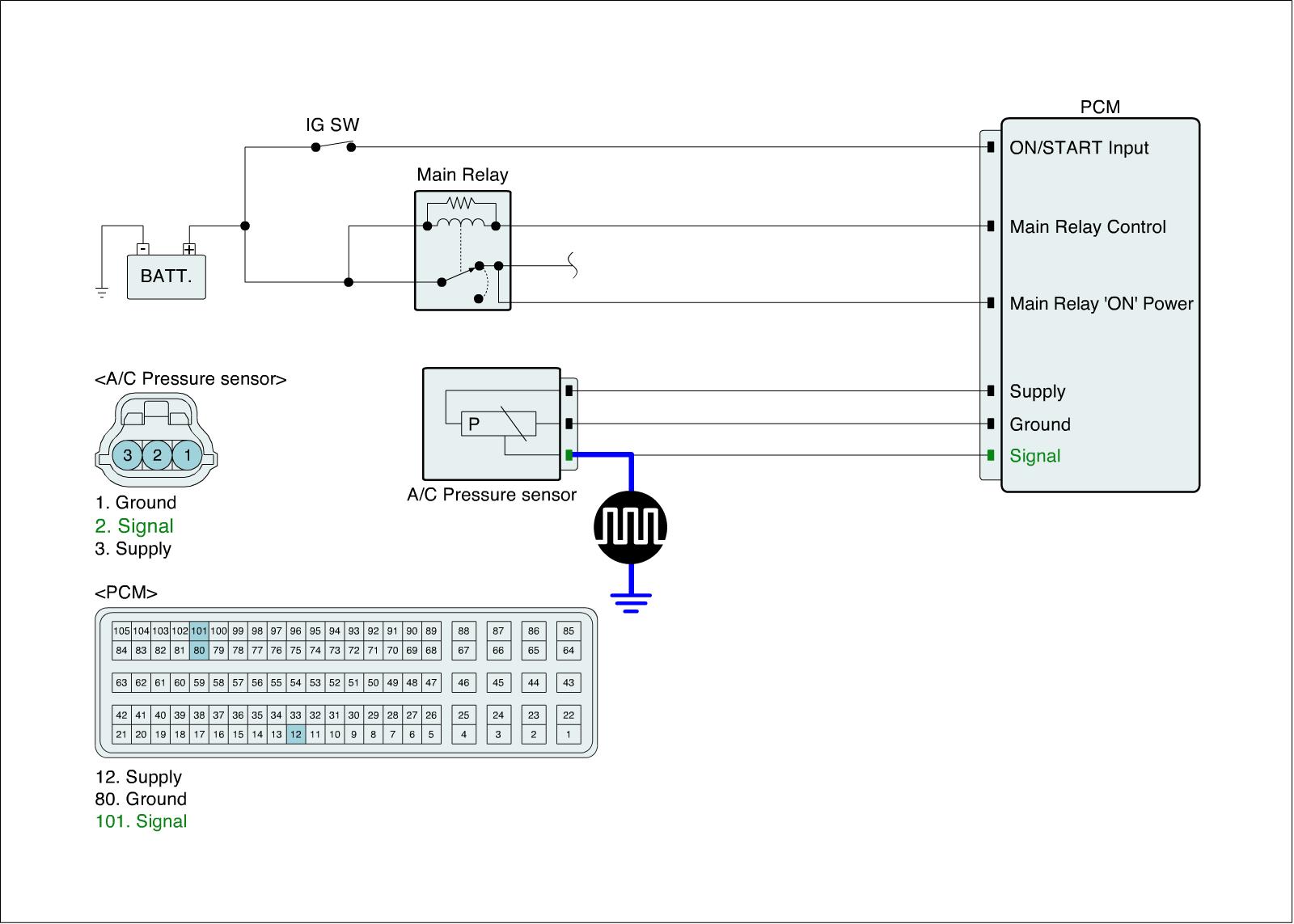

(2) Connect probe to signal line as below :
Channel A (+) : Air-Con Pressure Transducer Signal line, (-) : Ground

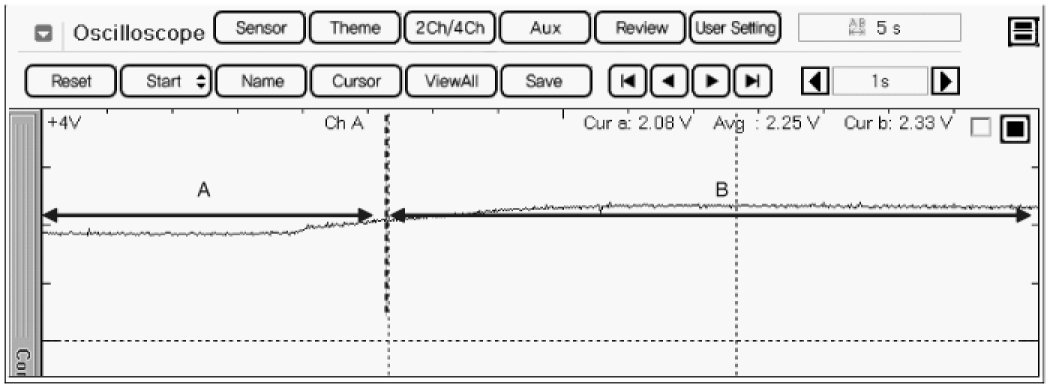

(3) After warming up, Check signal with Air-Con working.

Specification :
A : Approx. 1.3 - 1.5 V (Idle & Air-Con OFF)
B : Above 1.5 V (Idle & Air-Con ON)

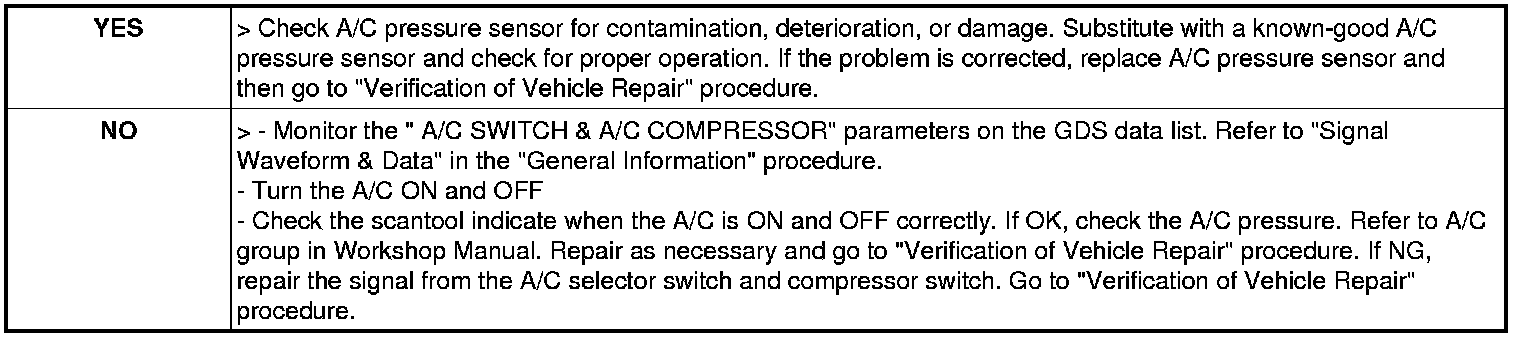

(4) Is data in accordance with specification?





(5) Return vehicle to original condition.
(6) Ignition "ON" & Engine "OFF".

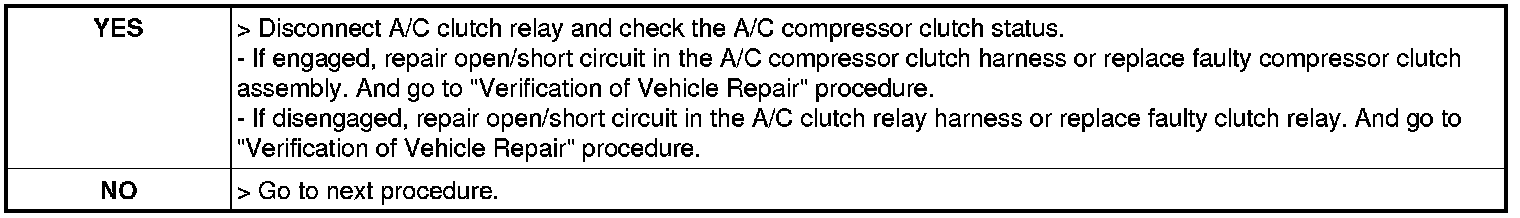

(7) Is the A/C compressor clutch engaged?





(8) Start the engine to normal operating temperature.
(9) Turn the A/C ON and OFF.

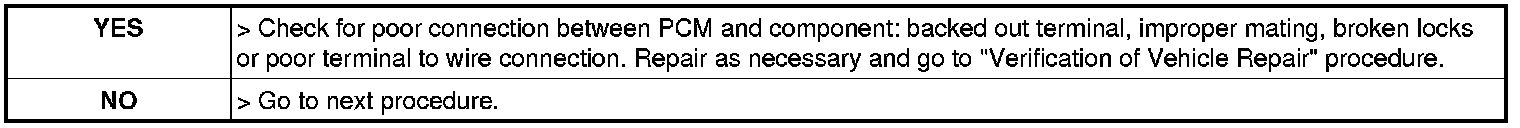

(10) Does the A/C compressor clutch cycle ON and OFF with the selector switch?
