Component Inspection

P0533 A/C Refrigerant Pressure Sensor \'A\' Circuit High Input

Inspection/Repair - Component Inspection

Component Inspection

1. IG 'OFF'.

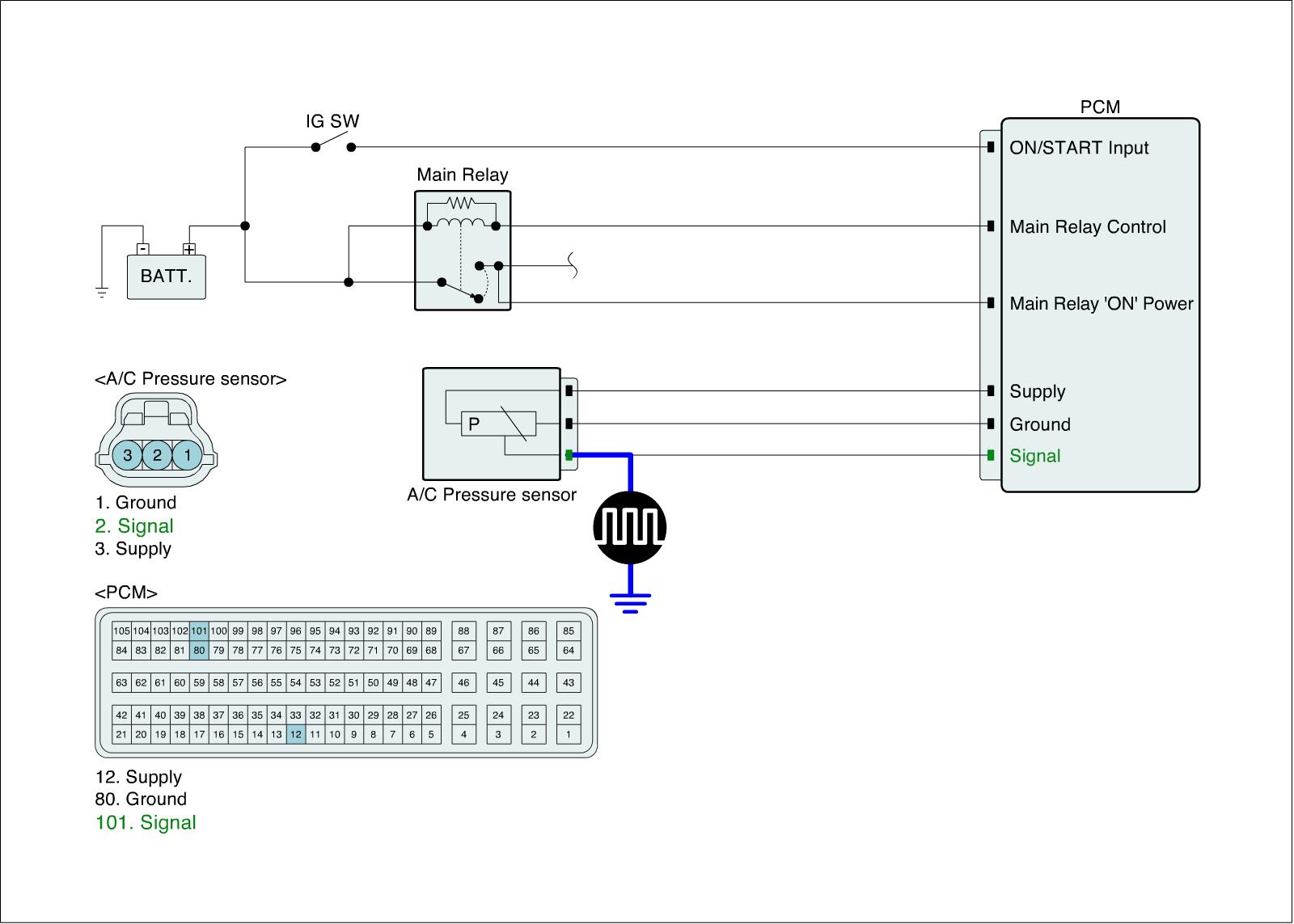

2. Connect prove to signal terminal as below and select 'Oscilloscope' menu on GDS.
Channel A (+) : Signal terminal of A/C pressure sensor, (-) : Ground.
3. Engine start and check the signal with operation.

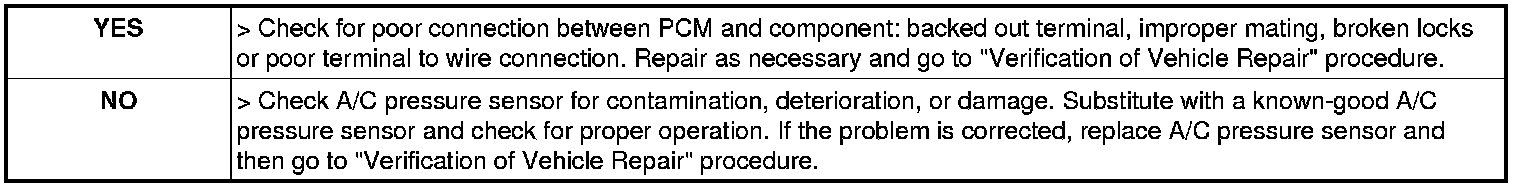

4. Is waveform within specification?
