Component Inspection





P050A Cold Start Idle Air Control System Performance

Inspection/Repair - Component Inspection

Component Inspection

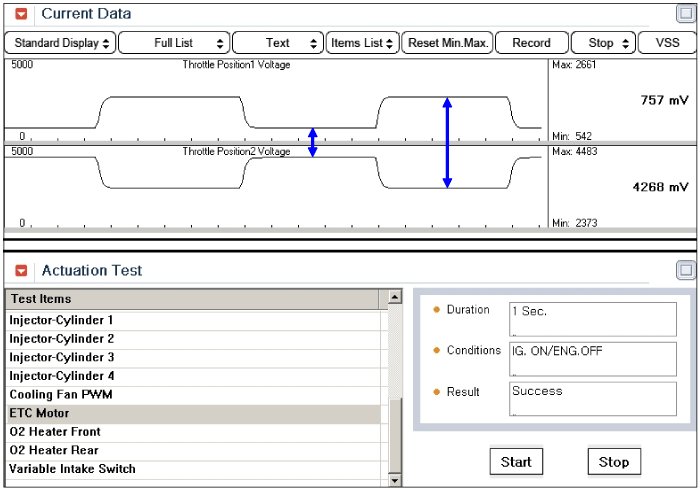

1. Select 'Actuation Test' mode and execute 'ETC motor' item.




> During 'ETC Motor' test, TPS1 and TPS2 show symmetrical movements.

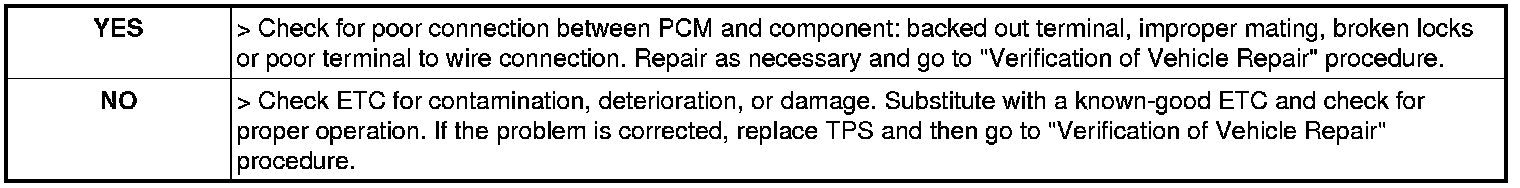

2. Is the waveform normal?
