Component Inspection

P0463 Fuel Level Sensor \'A\' Circuit High Input

Inspection/Repair - Component Inspection

Component Inspection

1. IG KEY 'OFF'.
2. Disassemble Fuel Level Sender 'A'.

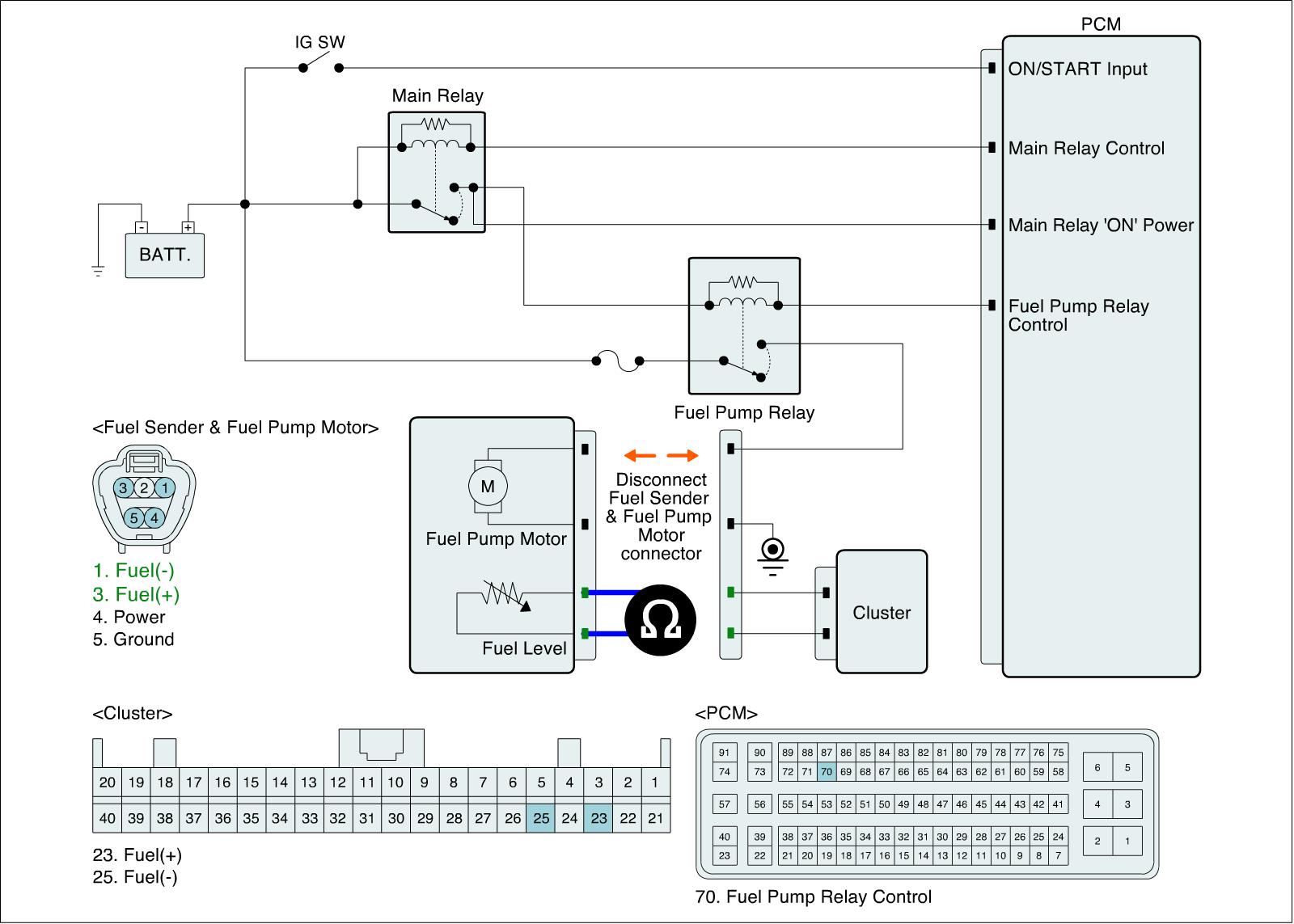

3. Measure resistance between signal terminal and ground terminal of Fuel Level Sensor 'A' with moving the float. (Component side)

Specification : Variation (4 - 70 Ohms) with moving the float.

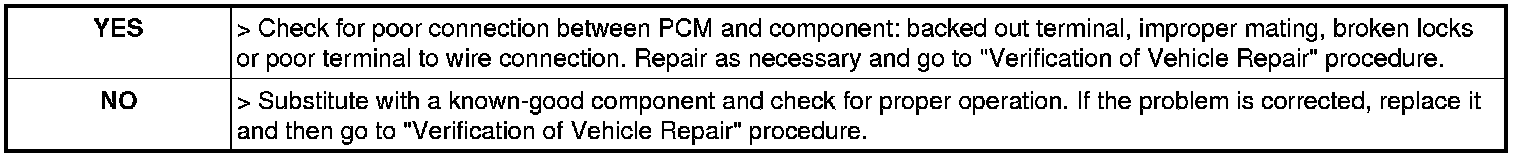

4. Is resistance within the specification?
