Component Inspection





P0244 Turbocharger/Supercharger Wastegate Sol. \'A\' Range/Performance

Inspection/Repair - Component Inspection

Component Inspection

Inspect Signal Waveform
1. Monitor sensor data and signal waveform at accelerating.

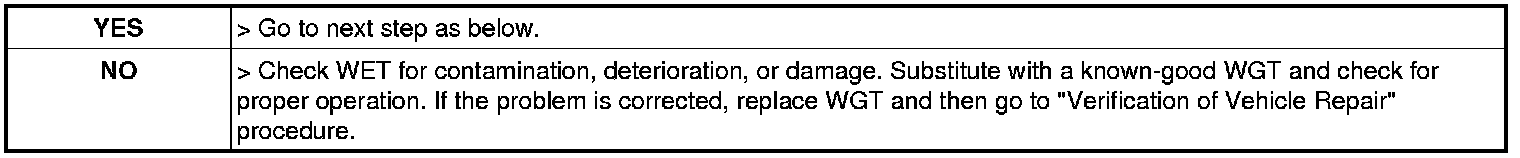

2. Is the waveform normal?
