Component Inspection

P0238 Turbocharger/Supercharger Boost Sensor \'A\' Circuit High

Inspection/Repair - Component Inspection

Component Inspection

Visually/physically inspect the Boost Pressure Sensor (PUT) for the following conditions:
1. Contamination or deterioration.
2. Poor connection or damaged harness.
3. Was a problem found?





PUT Inspect Signal Waveform
1. Monitor sensor data and signal waveform at accelerating.

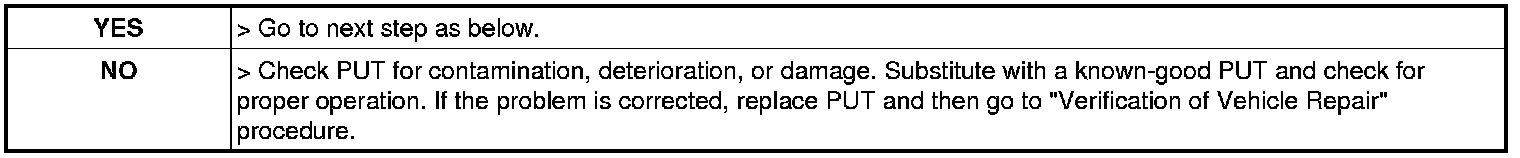

2. Is the waveform normal?
