Component Inspection

P0234 Turbocharger/Supercharger Overboost Condition

Inspection/Repair - Component Inspection

Component Inspection

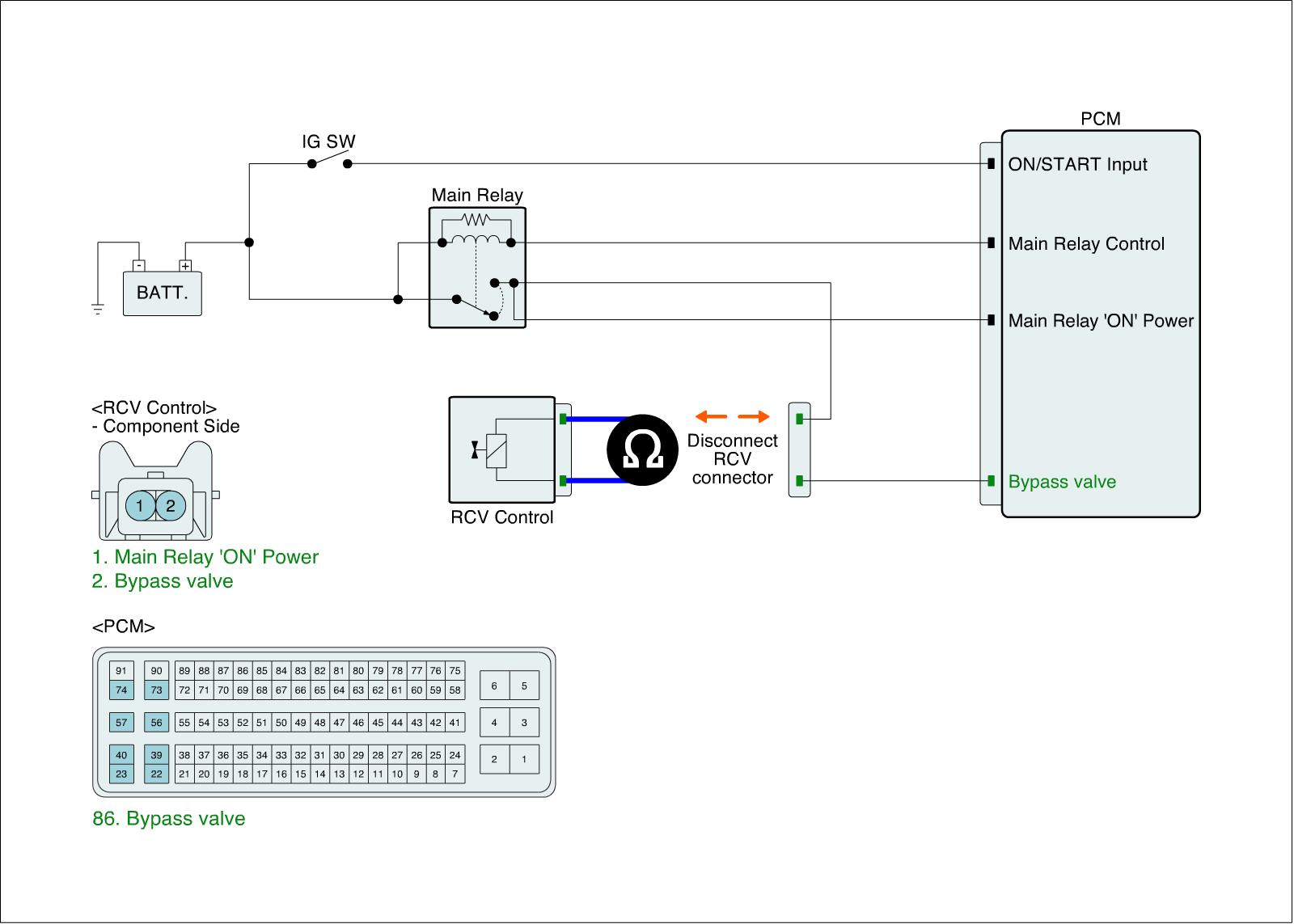

Inspect Resistance
1. Select 'Actuation Test' mode and execute 'Turbo Charger Bypass Valve' item.
2. Disconnect RCV connector.
3. Measure resistance between control terminal and power terminal of the RCV connector. (Component side)
Specification :

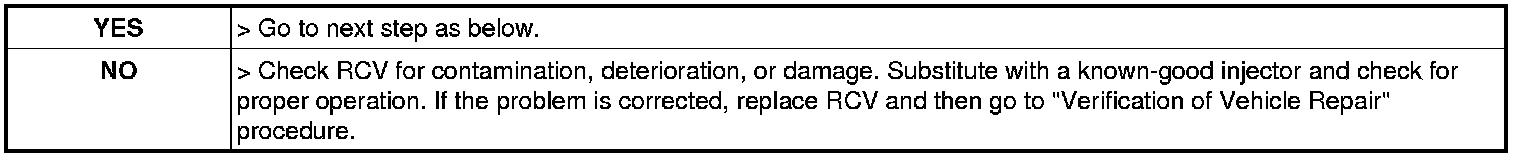

4. Is resistance within the specification?

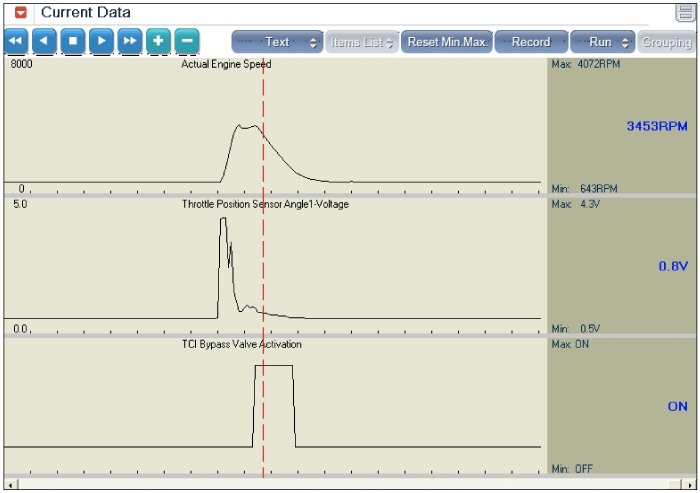

Inspect Signal Waveform

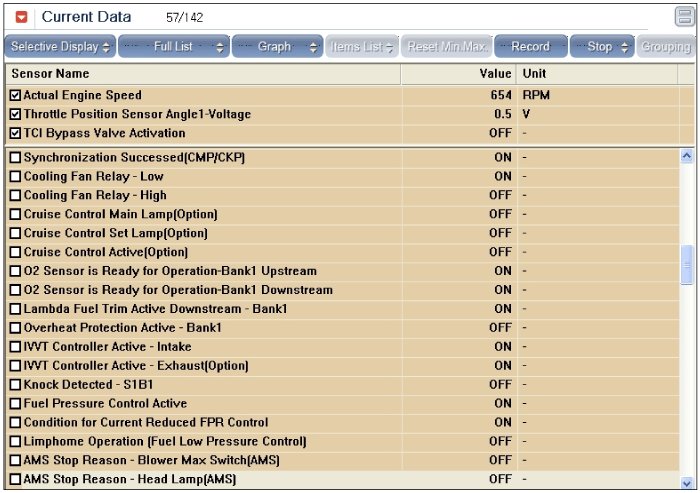

1. Monitor sensor data and signal waveform at accelerating.

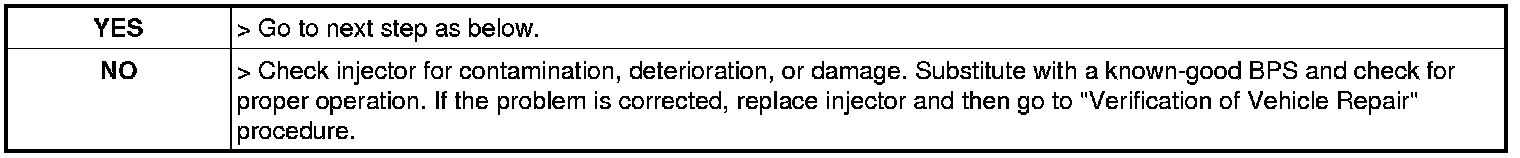

2. Is the waveform normal?
