P0108 Manifold Absolute Pressure/Barometric Pressure Circuit High Input

Inspection/Repair - Component Inspection

Component Inspection

1. Check MAPS performance.
(1) IG "OFF".
(2) Connect CH A probe to signal terminal of TPS and CH B probe to signal terminal of MAPS connector.
(3) Warm up the engine to normal operating temperature.
(4) Measure signal waveform of MAPS and TPS together by actuating the throttle.

Specification :

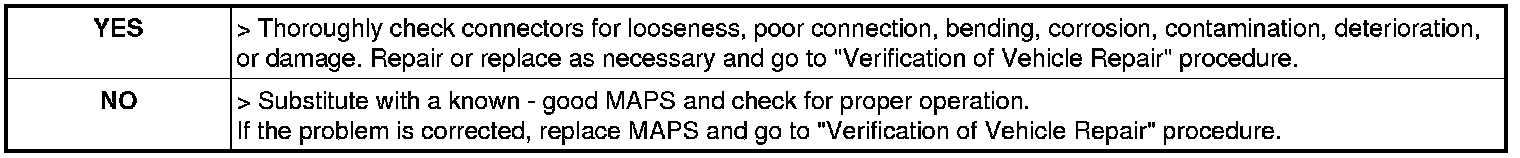

(5) Is the measured signal waveform (Comparison response of TPS with MAPS) O.K?
