Component Inspection

P0091 Fuel Pressure Regulator 1 Control Circuit Low

Inspection/Repair - Component Inspection

Component Inspection

1. IG OFF.
2. Disconnect the Fuel Pressure Regulator Valve (FPR) connector.
3. Connect probes to each terminal of FPR connector.
4. Measure FPR resistance.

Specification : Approx. 1 Ohms

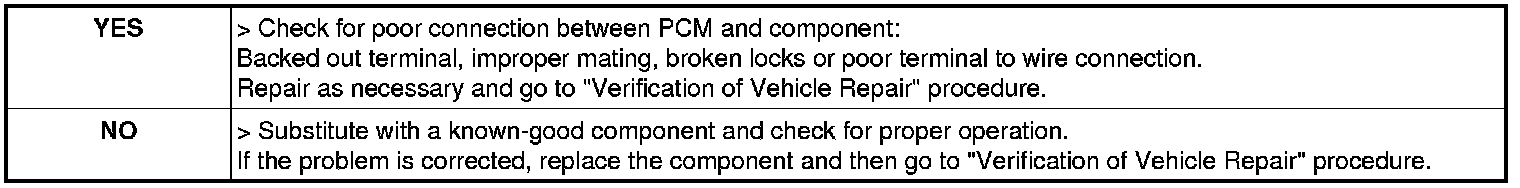

5. Is the measured resistance within specifications?
