C1620 First Setup Not Completed

Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Perform vehicle selection and Level Initialization with scantool as follows. And then, check "Actuator" parameter on scantool (It must be unloaded vehicle condition)

Specification : 80%±2%








Fig.1) Vehicle Selection and Level Initialization

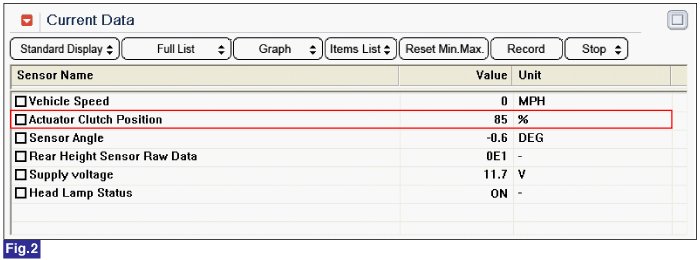

Fig.2) Engine ON - AHLS Current Data (Head Lamp Actuator)
3. Are "Vehicle selection & Level Initialization" and current data normal?






CAUTION:
Perform Vehicle Selection and Level Initialization with scantool if AHLS ECU is replace. (Auto Levelling Sensor)
















Fig.1) Vehicle Selection and Leveling Initialization 1.
Fig.2) Vehicle Selection and Leveling Initialization 2.
Fig.3) Vehicle Selection and Level Initialization 3.
Fig.4) Vehicle Selection and Level Initialization 4.
