General Information

C1527 Gear R Switch Error

General Information

Component Location





General Description

The clutch switch is used for the Hill start Assist Control function.

DTC Description

If the wrong reverse gear signal has been set for a certain period of time, a failure is recognized.
[A/T] HECU receives reverse gear switch signal from TCM via C-CAN.
[M/T] Cluster receives back up lamp signal from IPS (Intelligent Power Switch System) via B-CAN and sends it to HECU via C-CAN.

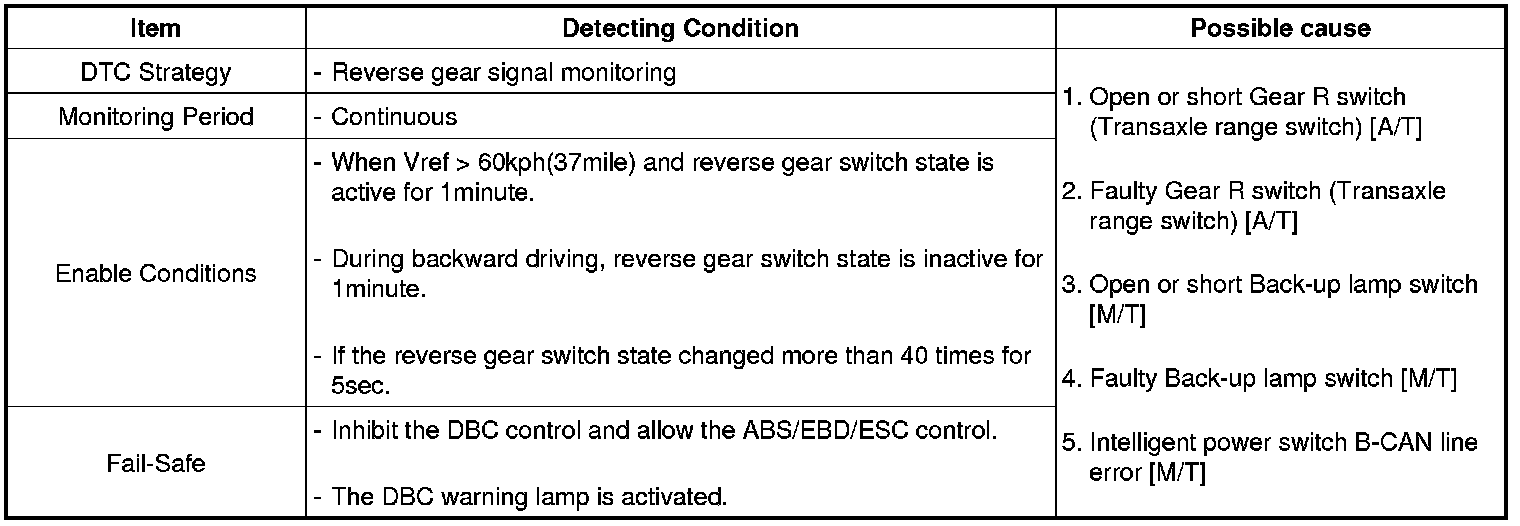

DTC Detecting Condition

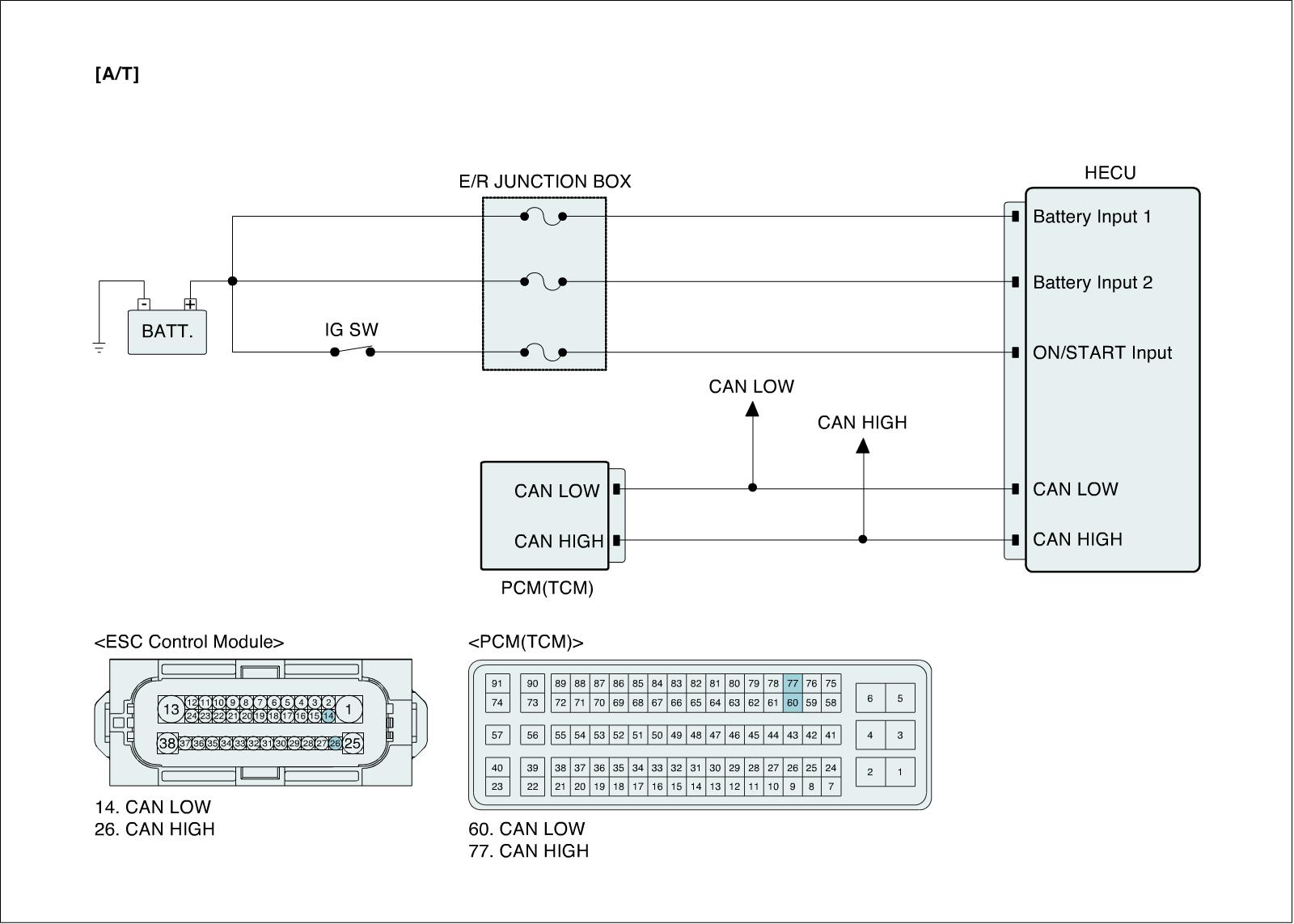

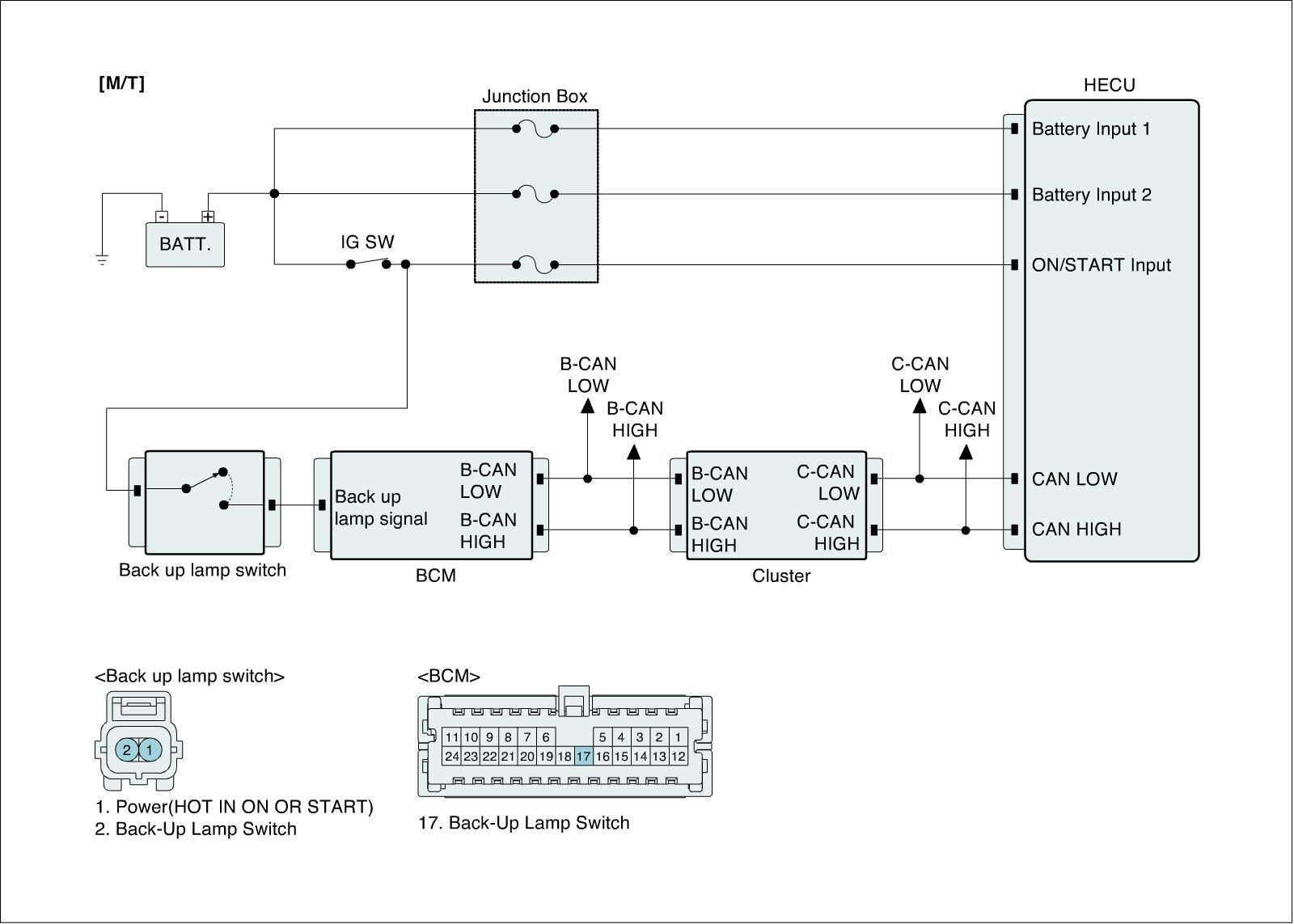

Diagnostic Circuit Diagram
