Component Inspection

C1527 Gear R Switch Error

Inspection/Repair - Component Inspection

Component Inspection

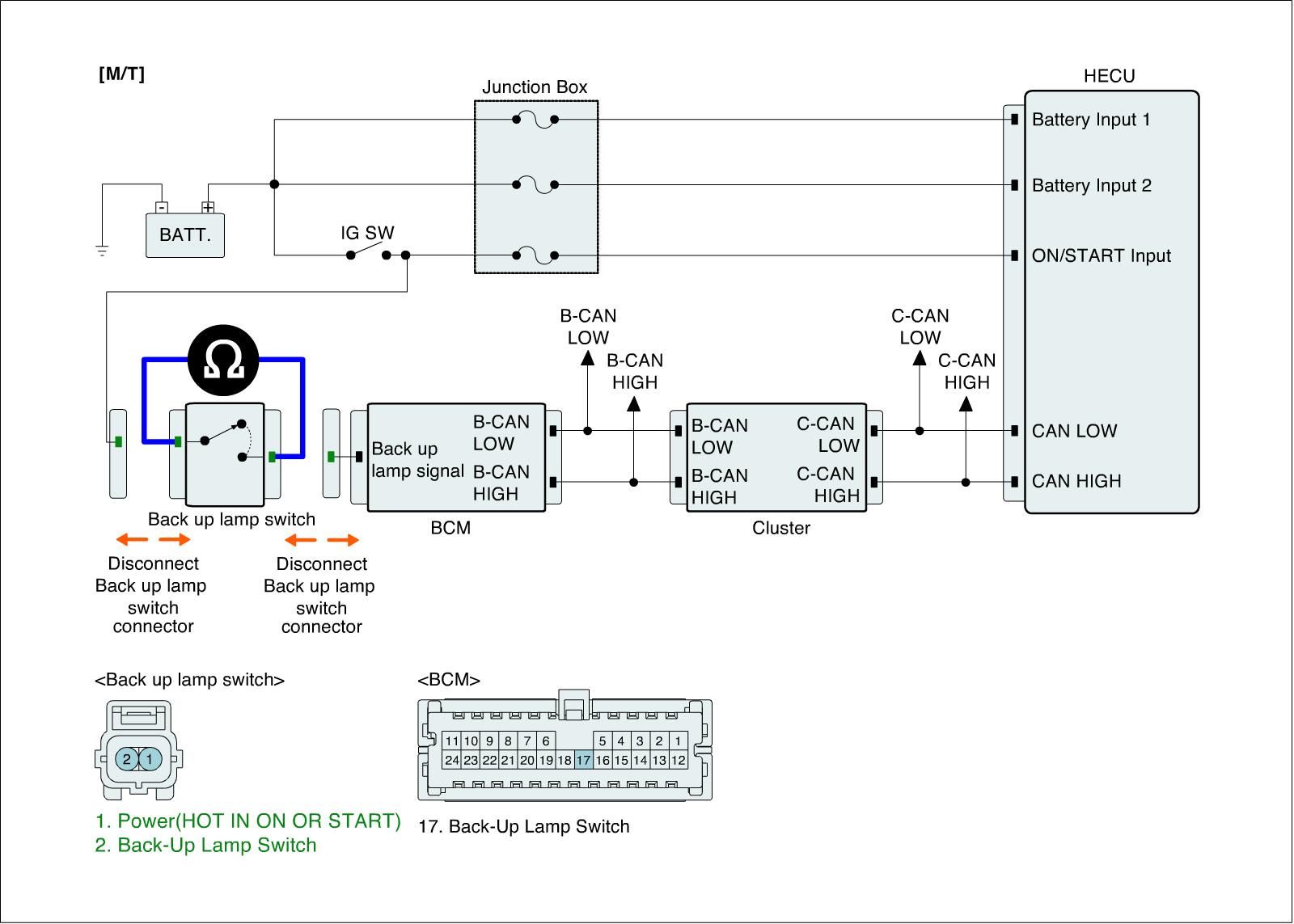

Back Up Switch Check
1. IG OFF.
2. Disconnect the back up switch connector.
3. Measure resistance between ground terminal and signal terminal of the back up switch connector.

Specification : Approx. below 1 Ohms (In case of pressing the back up switch)
Approx. Infinity Ohms (In case of not pressing the back up switch)

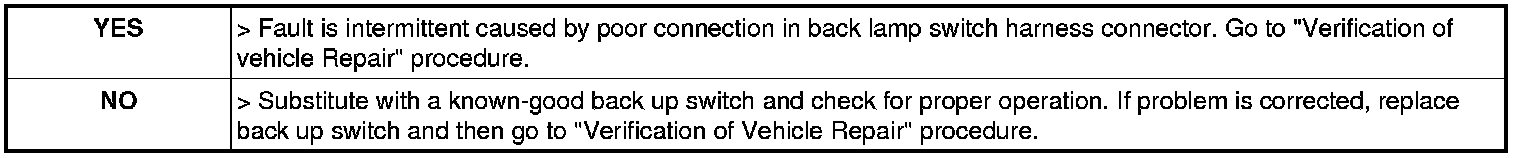

4. Is the measured value within specifications?
