Scantool Diagnostics

C1522 Head lamp Switch Fault

Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Engine "ON" and Turn on the auto head light system.
3. Check "HEAD LAMP status" parameter on Scantool.

Specification : When Head Lamp is ON : "ON"

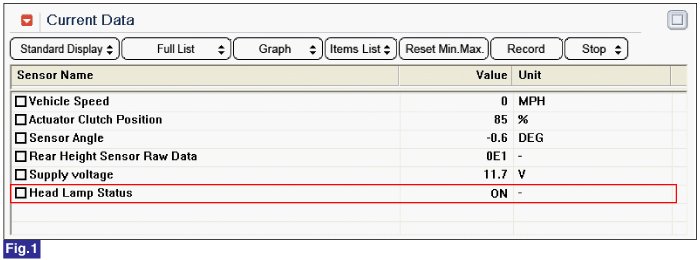

Fig.1) AHLS Current Data (Head Lamp status)

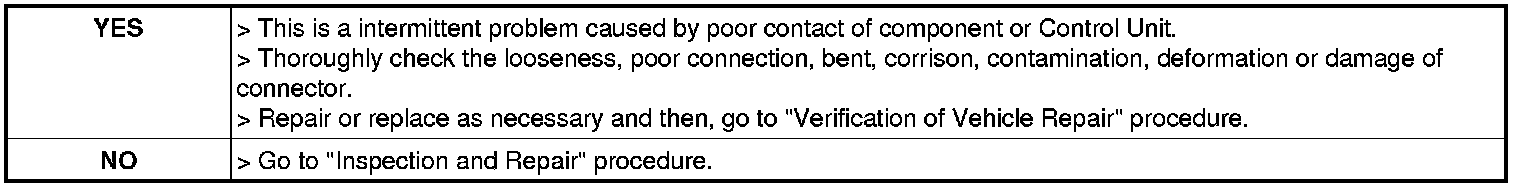

4. Is the current data normal?
