General Information





C1520 Clutch switch

General Information

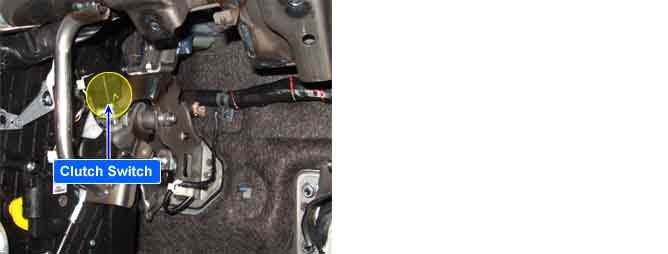

Component Location





General Description

The clutch switch is used for the Hill start Assist Control function.

DTC Description

If a clutch signal failure continues for a given time, a failure is recognized.

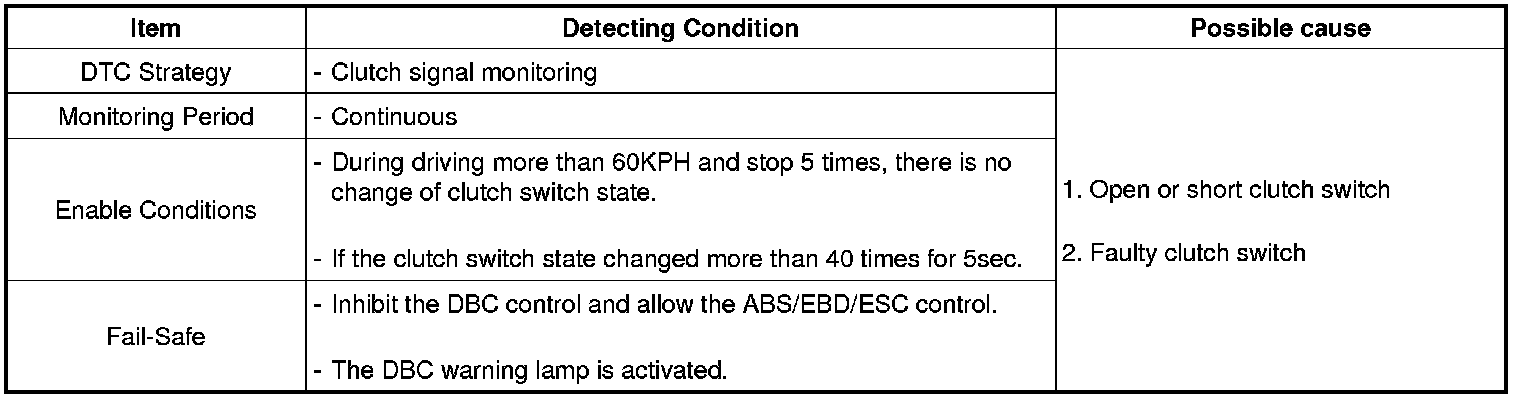

DTC Detecting Condition

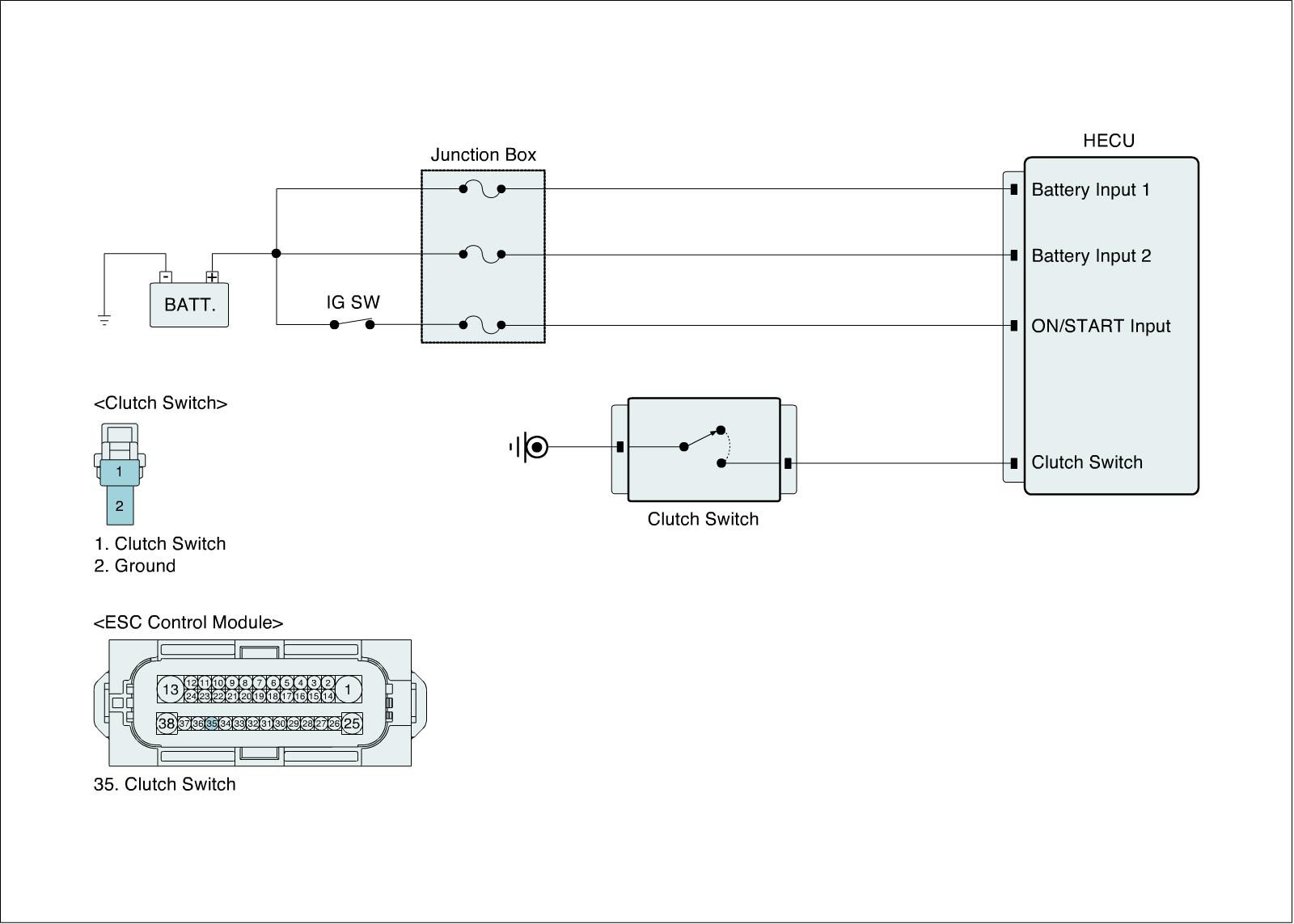

Diagnostic Circuit Diagram
