Component Inspection

C1520 Clutch switch

Inspection/Repair - Component Inspection

Component Inspection

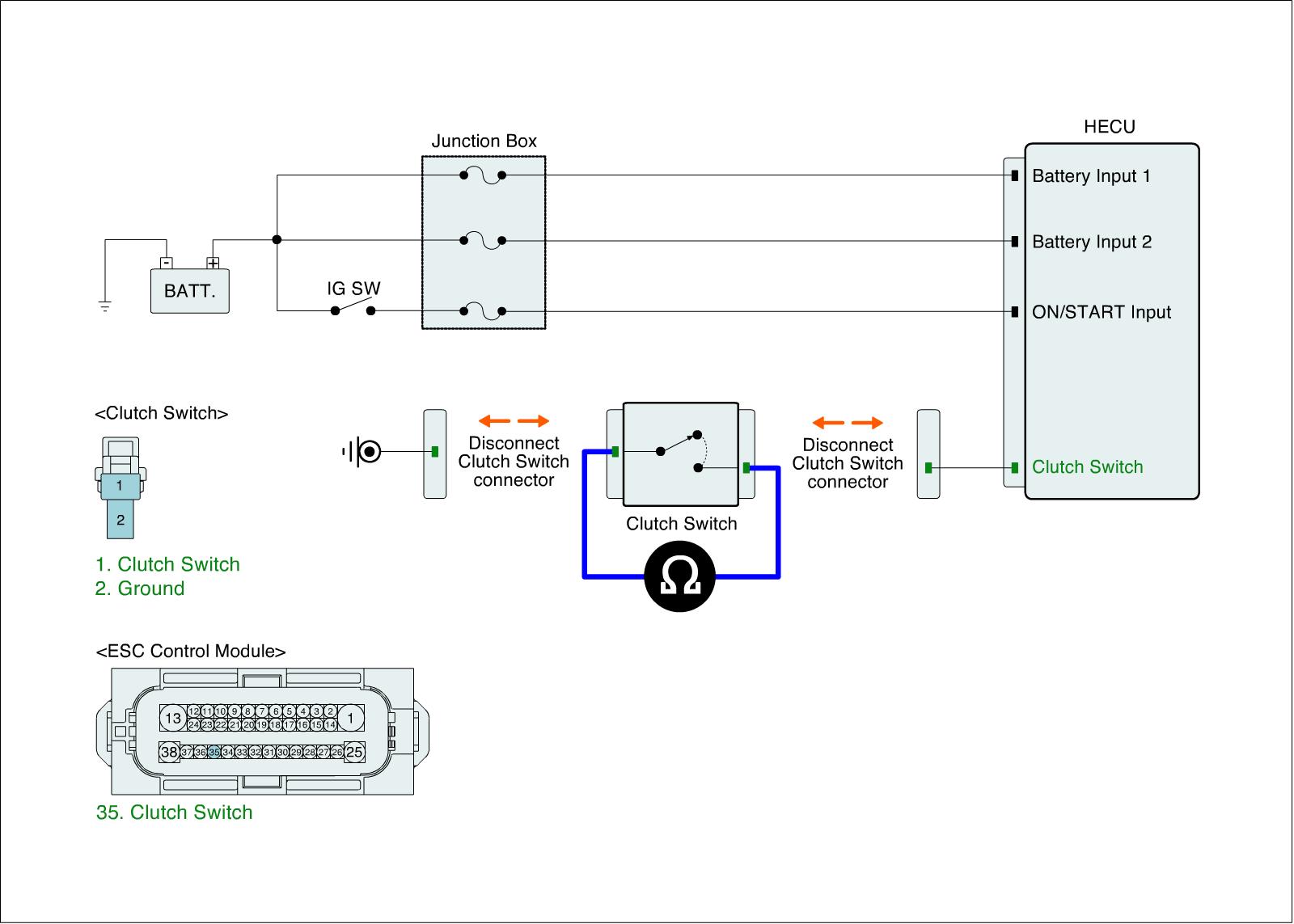

Clutch Switch Check
1. IG OFF.
2. Disconnect the clutch switch connector.
3. Measure resistance between ground terminal and signal terminal of the clutch switch connector.

Specification : Approx. below 1 Ohms (In case of pressing the clutch switch)
Approx. Infinity Ohms (In case of not pressing the clutch switch)

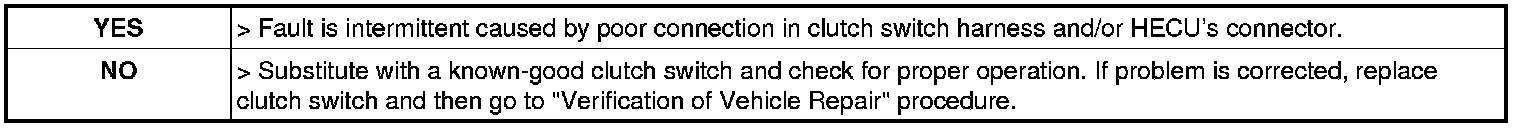

4. Is the measured value within specifications?
