Component Inspection

C1513 Brake switch error

Inspection/Repair - Component Inspection

Component Inspection

Brake light switch Check
1. IG "OFF".
2. Disconnect the brake light switch connector.

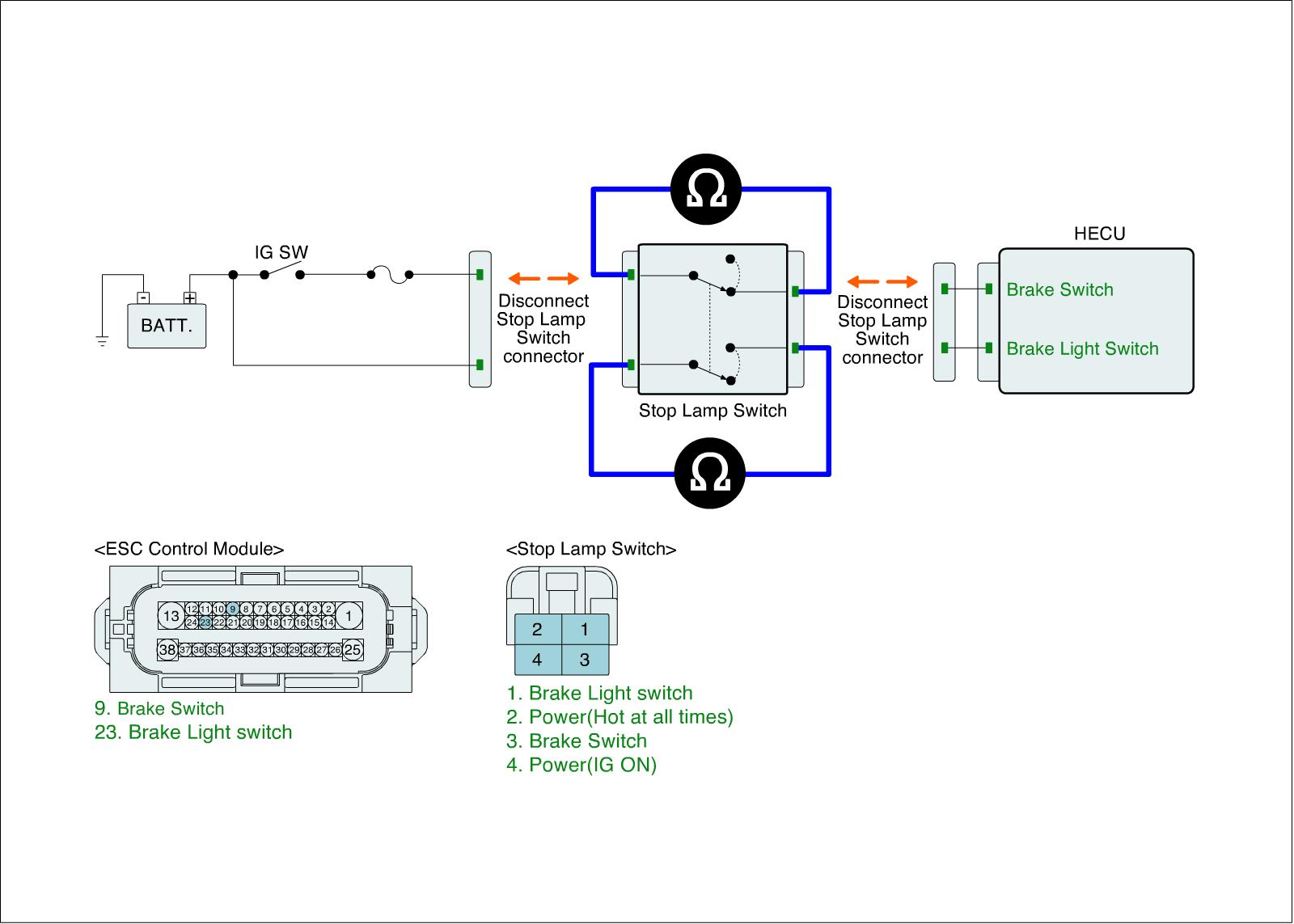

3. Measure resistance between power terminal and signal terminal of the brake light switch connector.

Specification :
Resistance between terminals of the brake light switch - Infinity Ohms (when the plunger is pushed down), 0 Ohms (when the plunger isn't pushed down).
Resistance between the terminals of the brake switch - Infinity Ohms (when the plunger is not pushed down), 0 Ohms (when the plunger is pushed down).

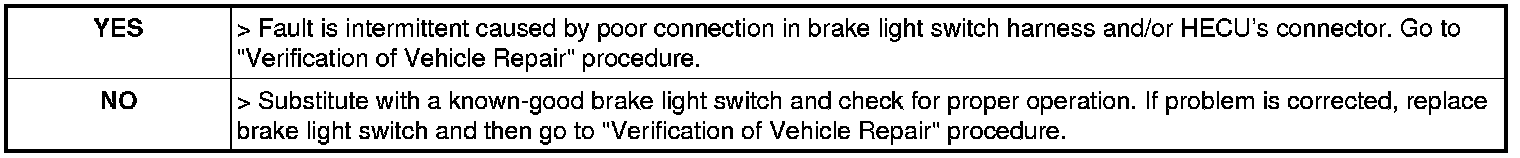

4. Is the measured value within specifications?
