Component Inspection

C1205 Wheel Speed Sensor Front-RH Invalid/no Signal

Inspection/Repair - Component Inspection

Component Inspection

Wheel speed sensor circuit check
1. Lift the vehicle.
2. IG "ON".
3. Turn the wheel by hand.
4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground with oscilloscope.

Specification : High : 1.18 - 1.68 V, Low : 0.59 - 0.84 V

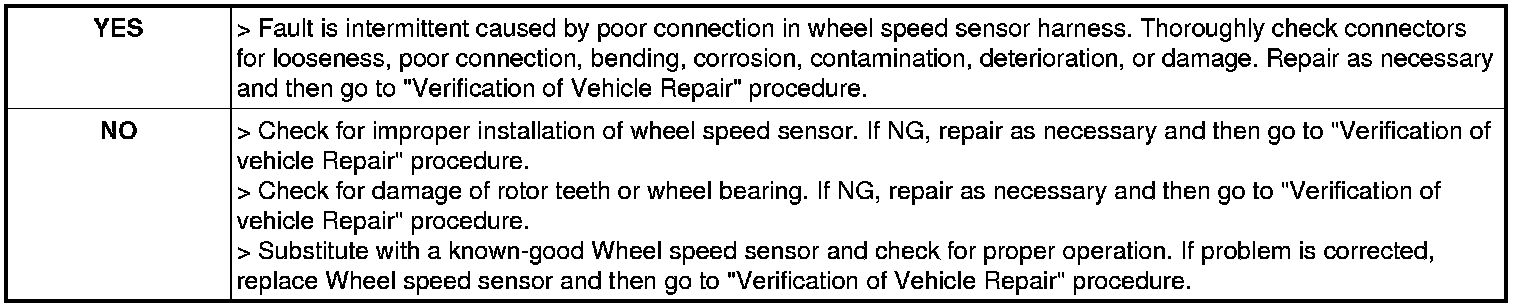

5. Is the measured waveform within specifications?
