Scantool Diagnostics

C1202 Wheel Speed Sensor Front-LH Invalid/no Signal

Scantool Diagnostics

Monitor GDS Data

1. IG "ON".
2. Connect GDS to Data Link Connector (DLC)
3. Start and drive vehicle in gear and maintain vehicle speed at or above 10 km/h. (6.2 mph)
4. Monitor the "WHEEL SPD SENSOR-FL" parameter on the GDS.

Specification : Compare with other parameters related to wheel speed sensor.
If it is the same as other parameters, it is in normal condition.

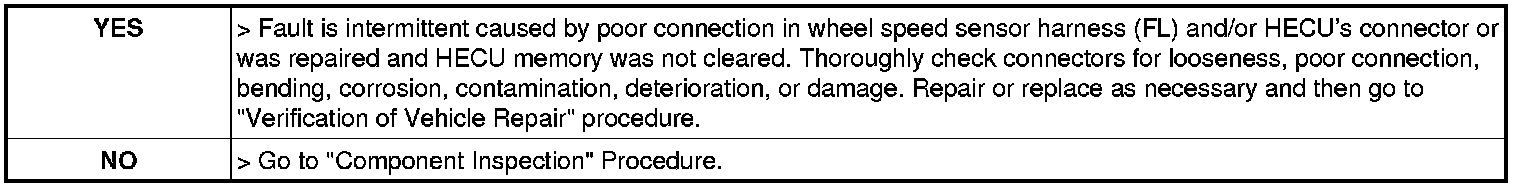

5. Is parameter displayed within specifications?
