Monitor Scantool Data

C1101 Battery Voltage High

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification : Below. 17.5 V




Fig 1) Normal Data at ENG "ON"

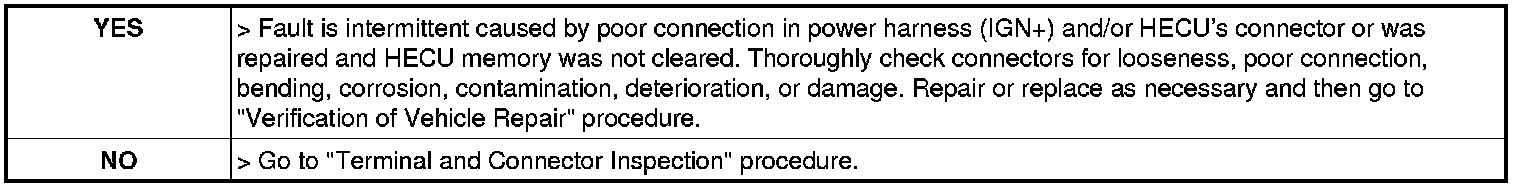

4. Is parameter displayed within specifications?
