B2517 Internal Tail Lamp Circuit Short to Ground

General Information

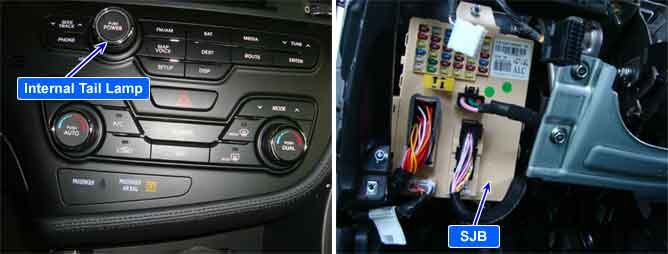

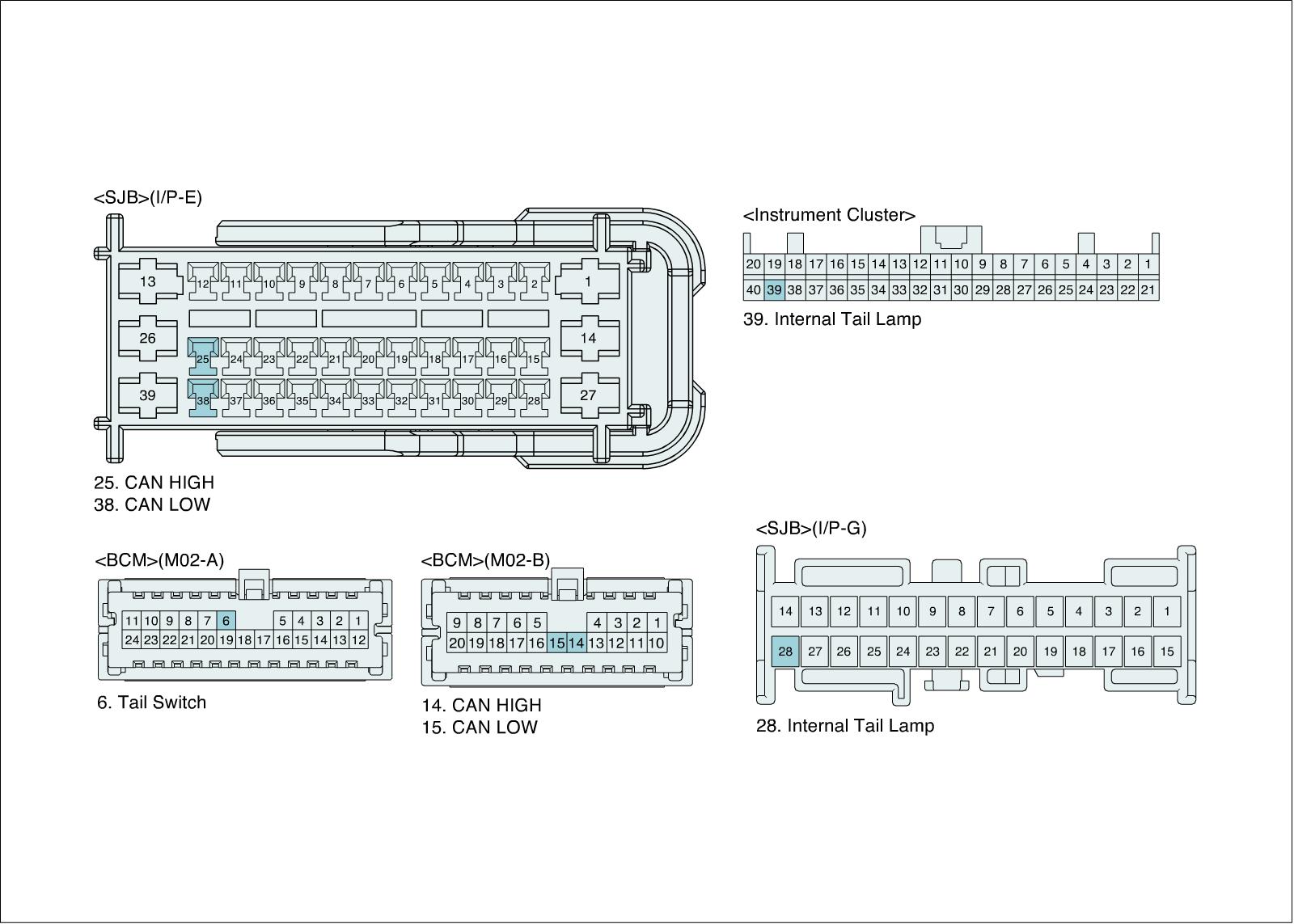

Component Location





General Description

Once BCM receives Tail Lamp switch working signal, it sends the signal to SJB by CAN communition. SJB turns on Tail Lamp.






DTC Description

This code is set when Internal Tail Lamp circuit is shorted to ground for more than 150 ms during Internal Tail Lamp operating.

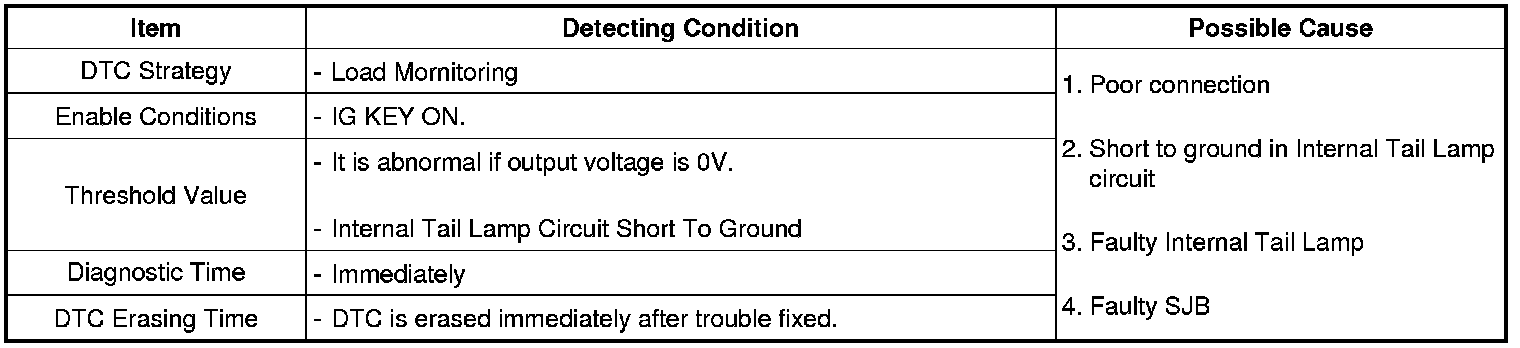

DTC Detecting Condition

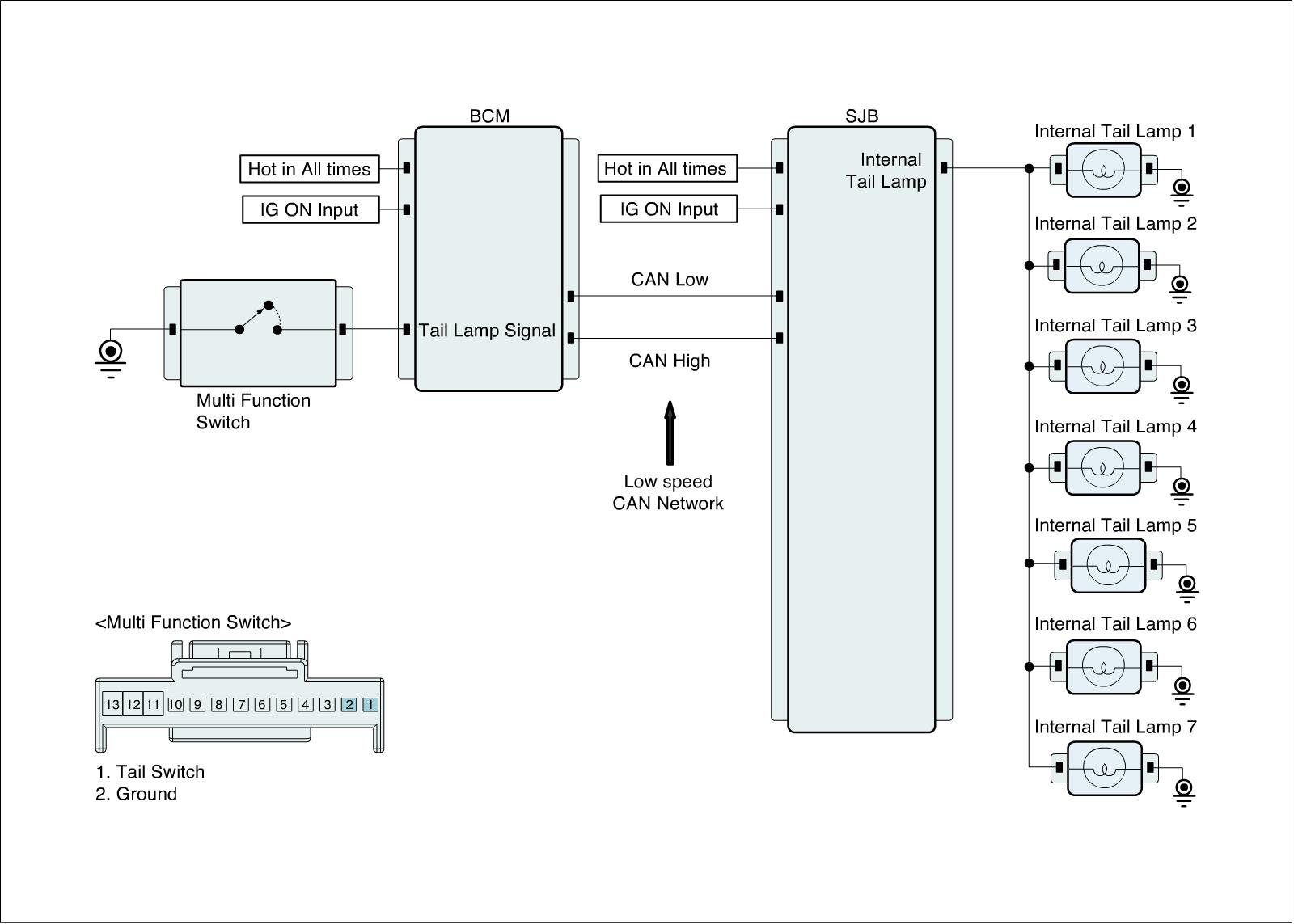

Diagnostic Circuit Diagram
