B2514 External Tail Lamp RH Circuit Short to Ground

General Information

Component Location





General Description

Once BCM receives Tail Lamp switch working signal, it sends the signal to SJB by CAN communition. SJB turns on Tail Lamp.






DTC Description

This code is set when Right External Tail Lamp circuit is shorted to ground for more than 150 ms during right External Tail Lamp operating.

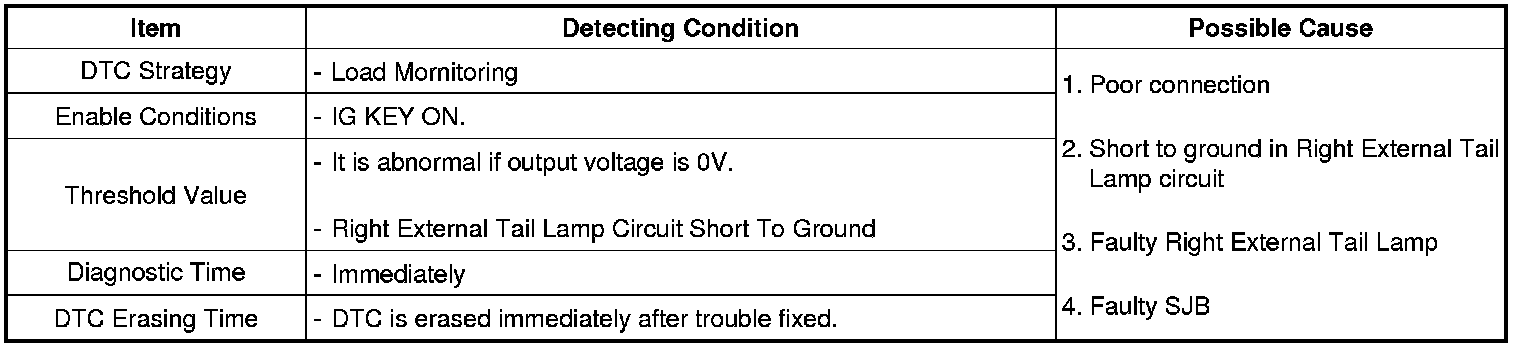

DTC Detecting Condition

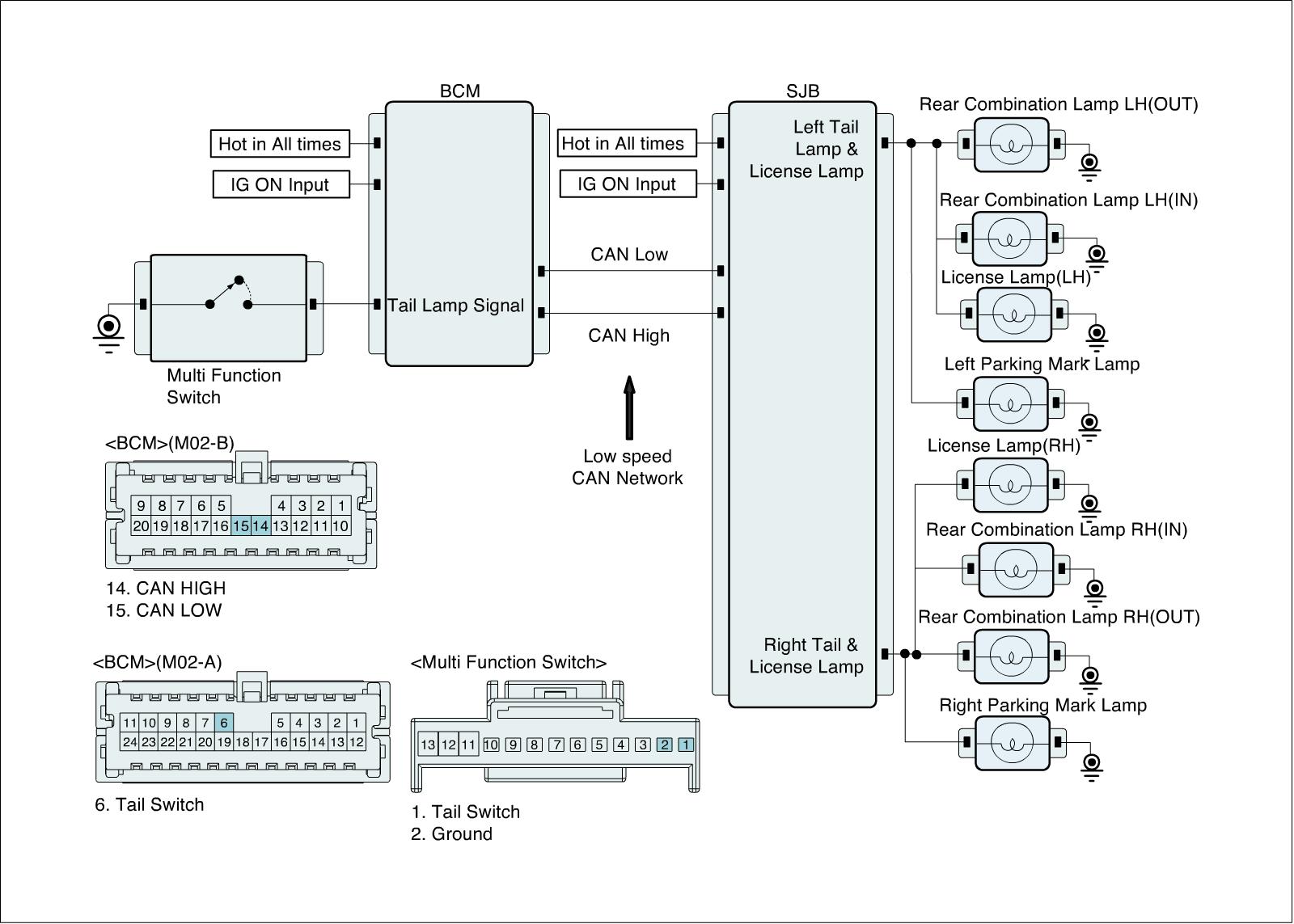

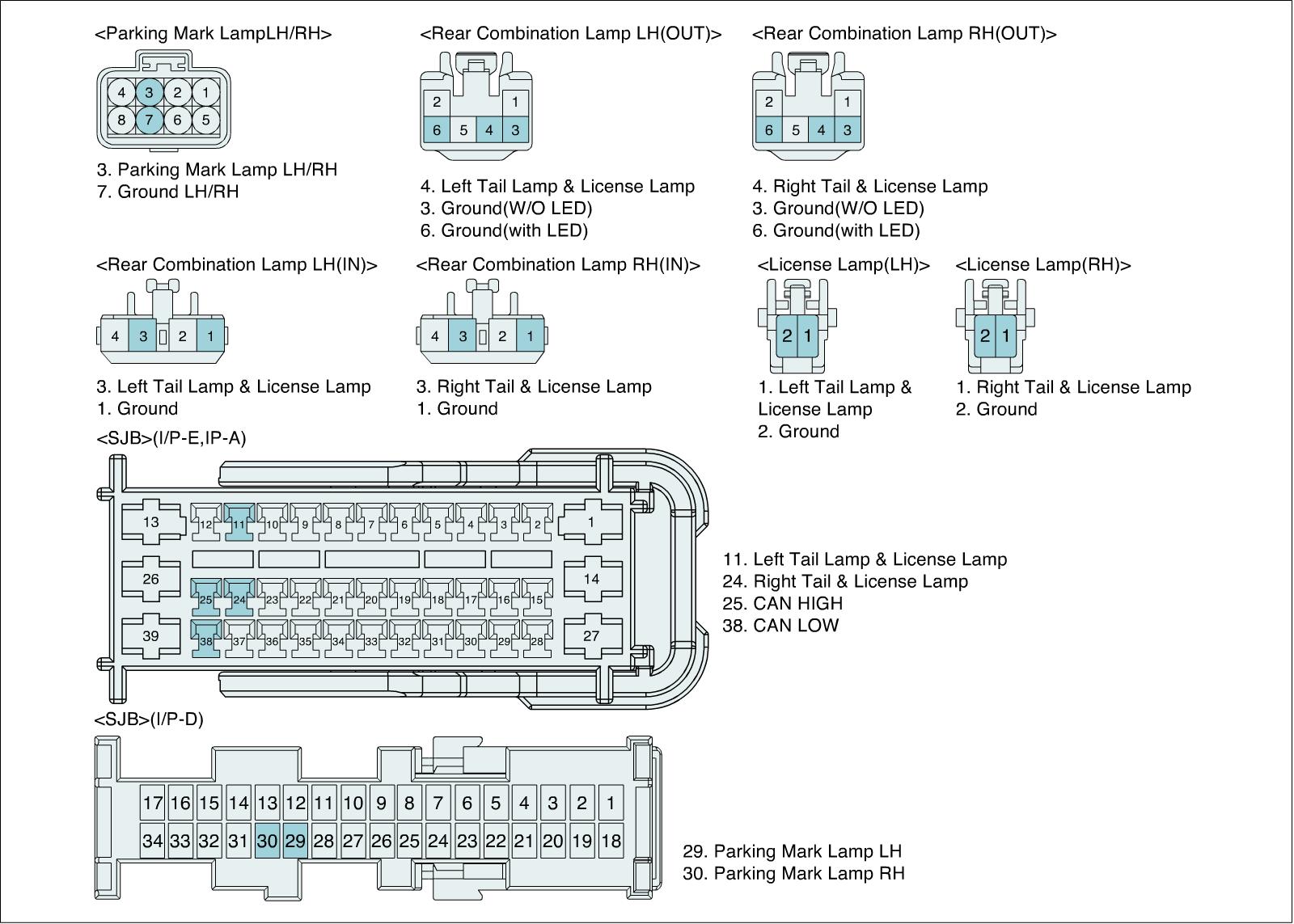

Diagnostic Circuit Diagram
