Component Inspection

B1690 CAN time-out between IPM and SJB

Inspection/Repair - Component Inspection

Component Inspection

Check internal errors of CAN communication units.
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Replace SJB with the new one and check DTC again.








*CAN communication units : BCM (Body Control Module), CLU (Cluster), SMK (Smart Key), SJB (Smart Junction Box), PSM (Power Seat Module).

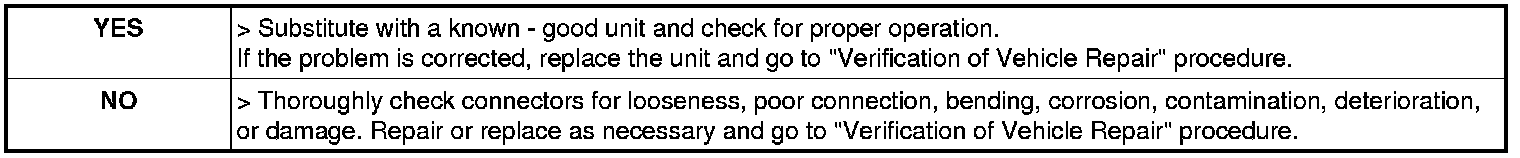

5. Is the code erased?
