Scantool Diagnostics

B1477 Inflatable Curtain Airbag Front-Passenger Resistance too High

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Curtain airbag front-Passenger resistance" parameter on the Scantool.

Specification : 1.1 Ohms< Resistance of curtain airbag front-Passenger < 6.7 Ohms

Reference :In a case of an open in the curtain airbag front-Passenger circuit : FAIL
In a case of a short to battery in the curtain airbag front-Passenger circuit : FAIL
In a case of a short to ground in the curtain airbag front-Passenger circuit : FAIL

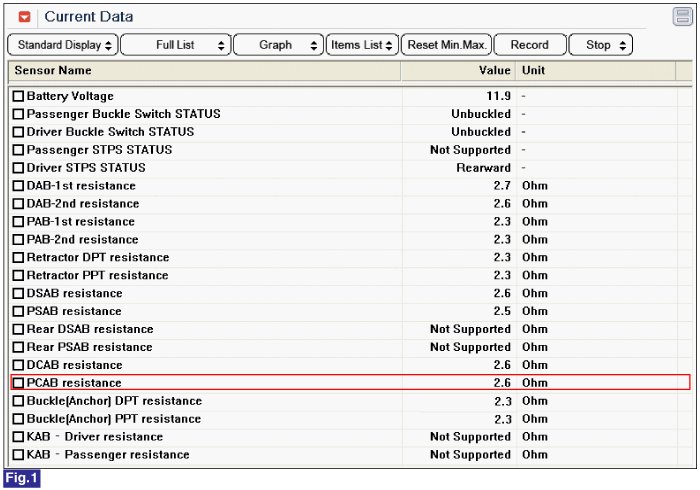

Fig.1) Normal Data
4. Is parameter displayed within specifications?
