General Information

B1285 Direction Control Motor -AUTO Defog

General Information

Component Location





General Description

The Auto Defogger sensor is installed on front window glass. The Auto Defogger sensor senses any moisture on the interior of the windshield. While controlling the temperature and Mode (direction of air) set by driver, if the humidity is higher than certain level, the Air conditioner control Module automatically controls auto defogging mode. Air conditioner control module exits auto defogging when the humidity is decreased.

DTC Description

The Air conditioner Control Module sets DTC B1285 if auto defogger mode actuator has not been moved to the mode, where air condition control module controls, within 40 seconds.

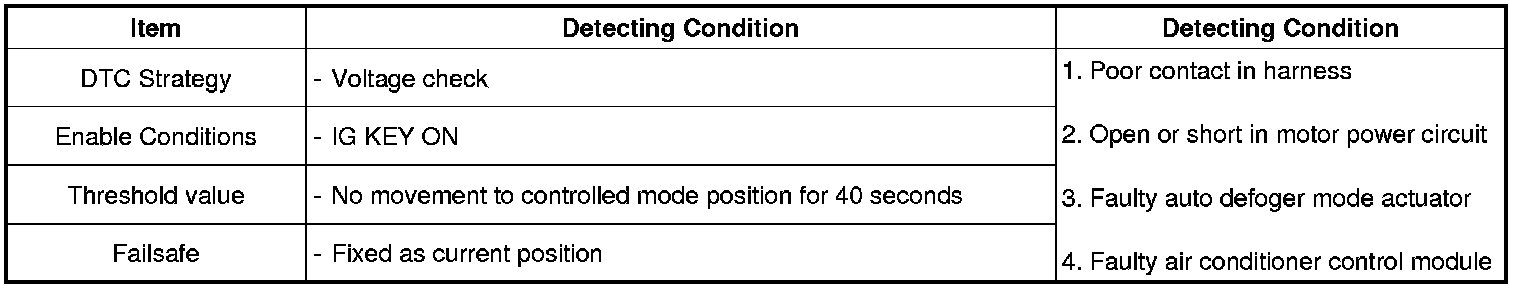

DTC Detecting Condition





Specification

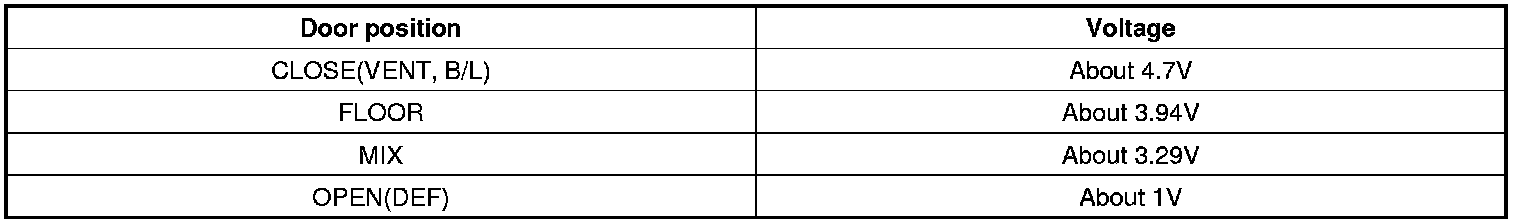

** The voltage of auto defogger mode actuator in accordance with position






Diagnostic Circuit Diagram
