B1237 Ambient Temperature Sensor Short (Low)

General Information

Component Location





General Description

The ambient temperature sensor is located at the center stay of the condenser and detects ambient air temperature. It is a negative type thermistor whose resistance is inversely proportional to the temperature. Its output is used for sensor fail-safe, temperature regulation door lock, blower motor level control, mix mode control and in-car humidity control.

DTC Description

DTC B1237 sets if the Ambient Sensor signal is at or below 0.1 V for 0.3 seconds.

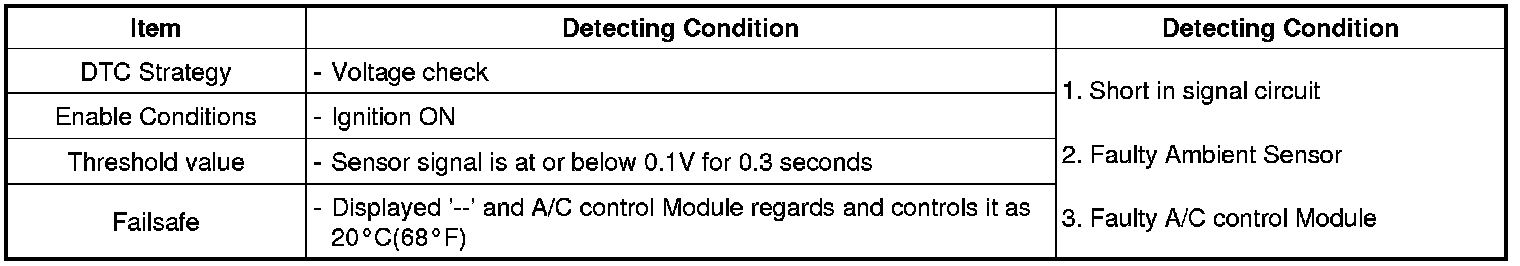

DTC Detecting Condition

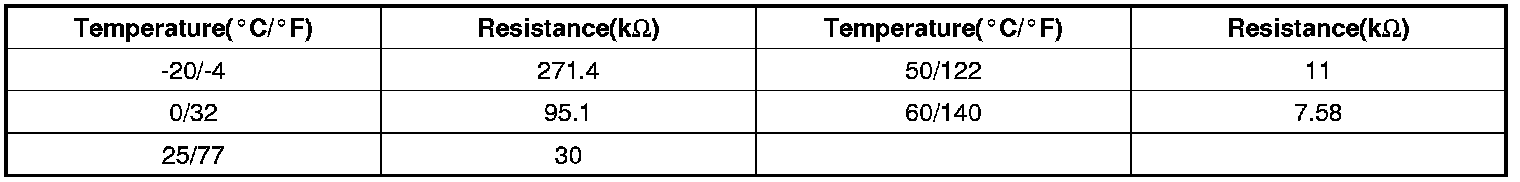

Specification

** Resistance value of ambient temp. sensor as a function of temperature.






Diagnostic Circuit Diagram
