Scantool Diagnostics

B1102 Battery Voltage Low

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Battery Voltage" parameter on the Scantool.

Specification : Approx. 9 ≤ Vbatt ≤ 16




Fig.1) Normal Data

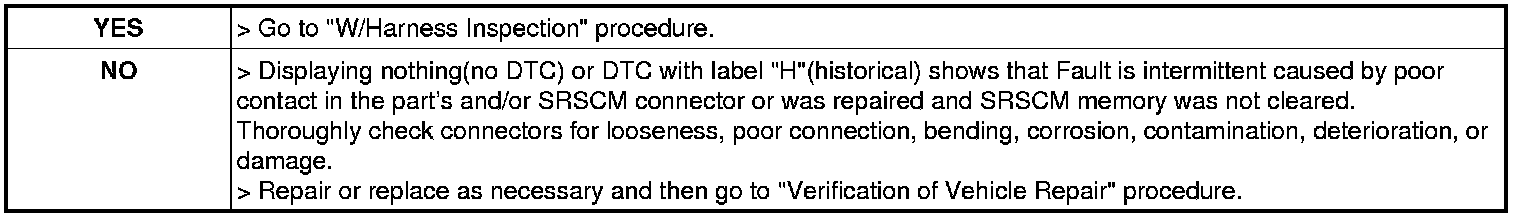

4. Is parameter displayed within specifications?
