Repair Procedures

Removal

1. Remove the following items;
A. Engine cover (A).
B. Cowl complete assembly panel (A).
C. Air cleaner assembly (B) and air duct (C).
D. Battery and battery tray (D).
E. ECM (E)




2. Disconnect the speed sensor connector (A).
3. Disconnect the back up lamp switch connector (B).




4. Remove the ground (A).




5. Disconnect the cable assembly (B) after removing the washer and pin (A).




6. Disconnect the concentric slave cylinder tube (A) after removing the pins (B).




7. Using the SST (09200-38001), hold the engine and transaxle assembly safely.




8. Remove the manual transaxle upper mounting bolt (B-2ea) and the starter motor mounting bolt (A-2ea).

Tightening torque:
42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

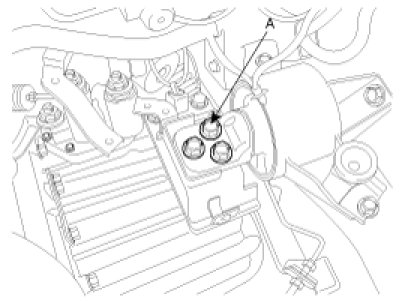

9. Remove the transaxle support mounting bracket bolts (A-3ea).

Tightening torque:
58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)




10. Remove the under cover (A).

Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)




11. Remove the side cover (A).




12. Remove the following items.
A. Drive shaft assembly.
B. Sub frame assembly.
13. Remove the wiring bracket installation bolt (A).




14. Remove the mounting bolts (A-4ea, B-2ea) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack.

Tightening torque:
(A) 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)
(B) 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

CAUTION:
- Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.










Installation

1. Installation is the reverse of removal.

NOTE:
- Adding Manual transaxle fluid.
- Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
