Connecting Rod, Engine

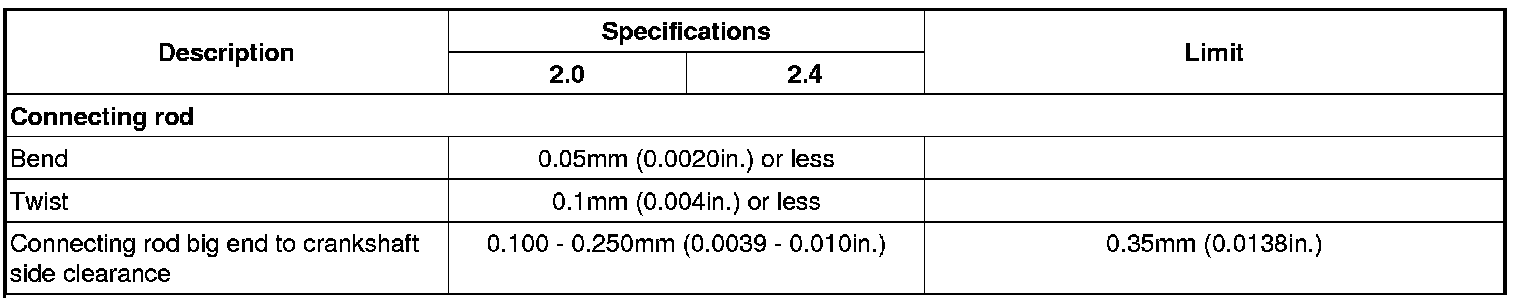

Connecting Rod






Connecting Rod Bearing Cap


Tightening torque 17.7 - 21.6 Nm (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft) + 88 - 92°
