Crankshaft Main Bearing: Specifications

Main Bearing

Install the main bearing cap bolts.

Tightening torque 14.7 Nm (1.5 kgf.m, 10.8 lb-ft) + 27.5 - 31.4 Nm (2.8 - 3.2 kgf.m, 20.3 - 23.1 lb-ft) + 120 - 125°

NOTE: The main bearing cap bolts are tightened in 2 progressive steps.
If any of the bearing cap bolts in broken or deformed, replace it.

- Apply a light coat of engine oil on the threads and under the bearing cap bolts.
- Install and uniformly tighten the 10 bearing cap bolts, in several passes, in the sequence shown. (with specified torque 29.4N.m (3.0kgf.m, 21.7lb-ft))

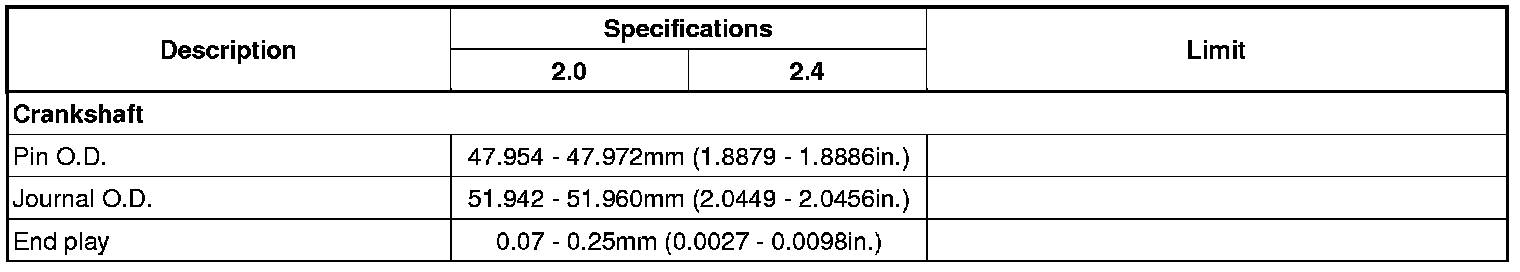

Crankshaft
