Home >> Kia >> 2011 >> Forte L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> System Diagram

System Diagram





Circuit Diagram (1)





Circuit Diagram (2)

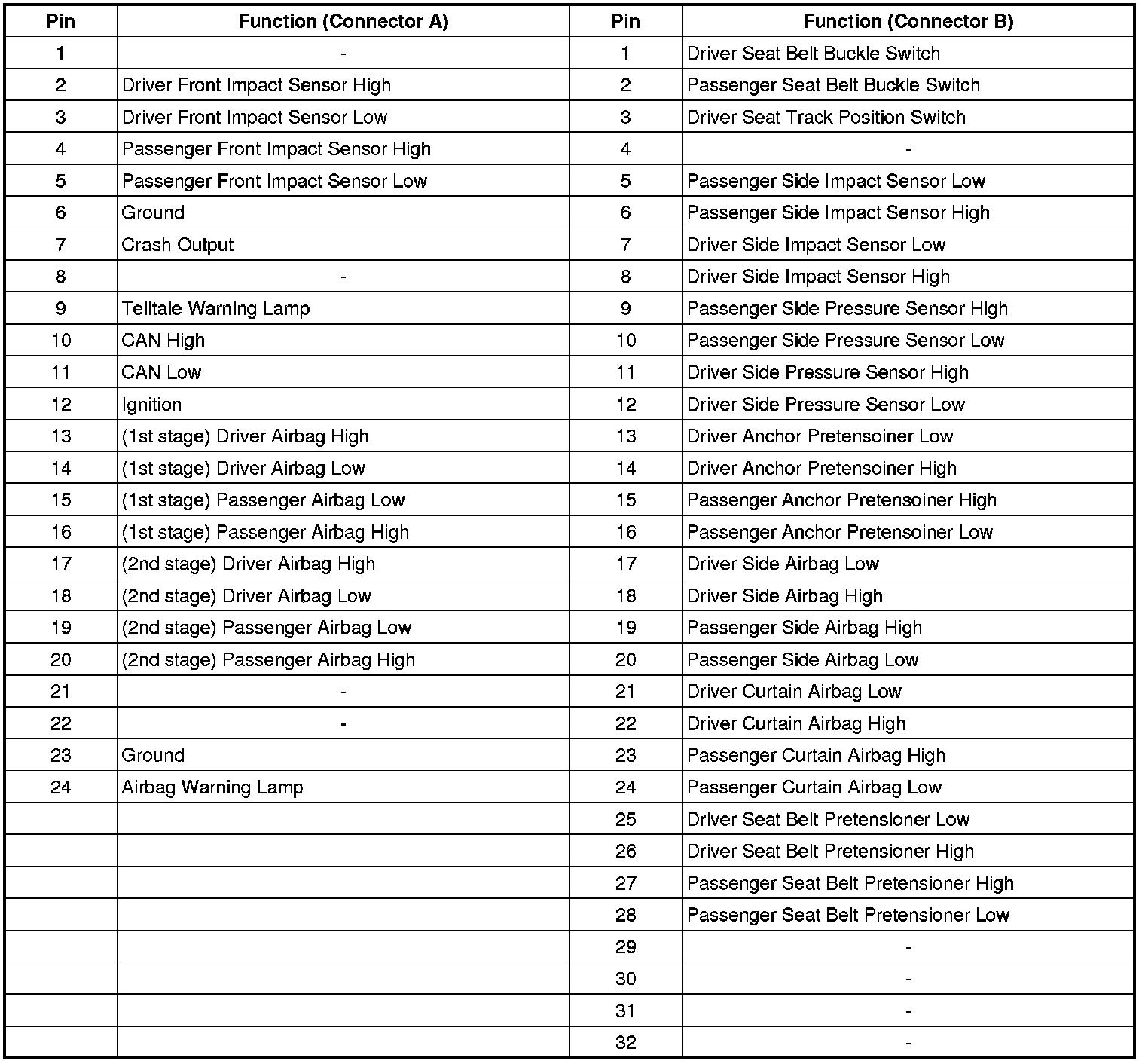

SRSCM Connector Terminal

Harness Connector
