System Diagram

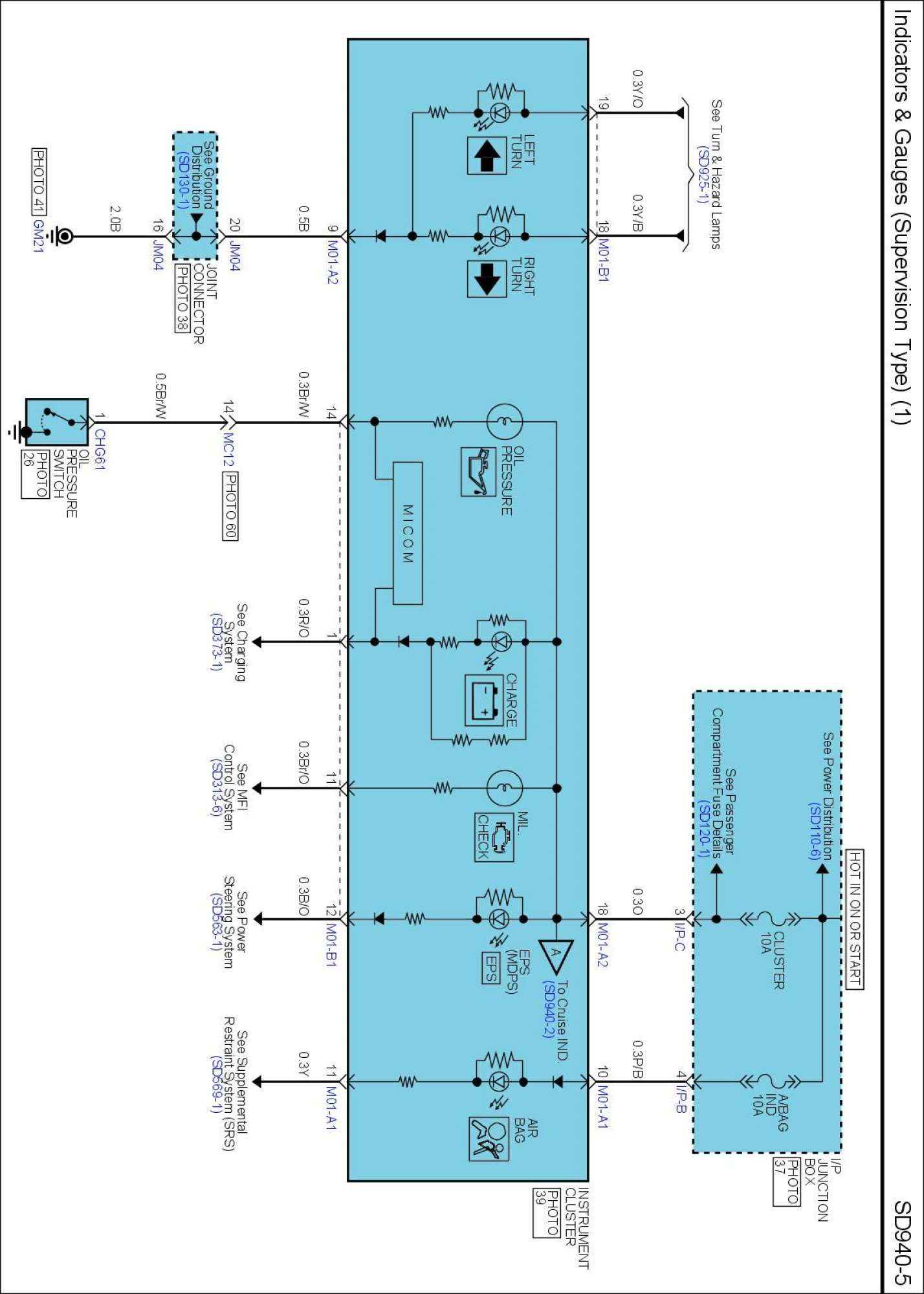

SD940-5 Indicators And Gauges (Supervision Type) (1):

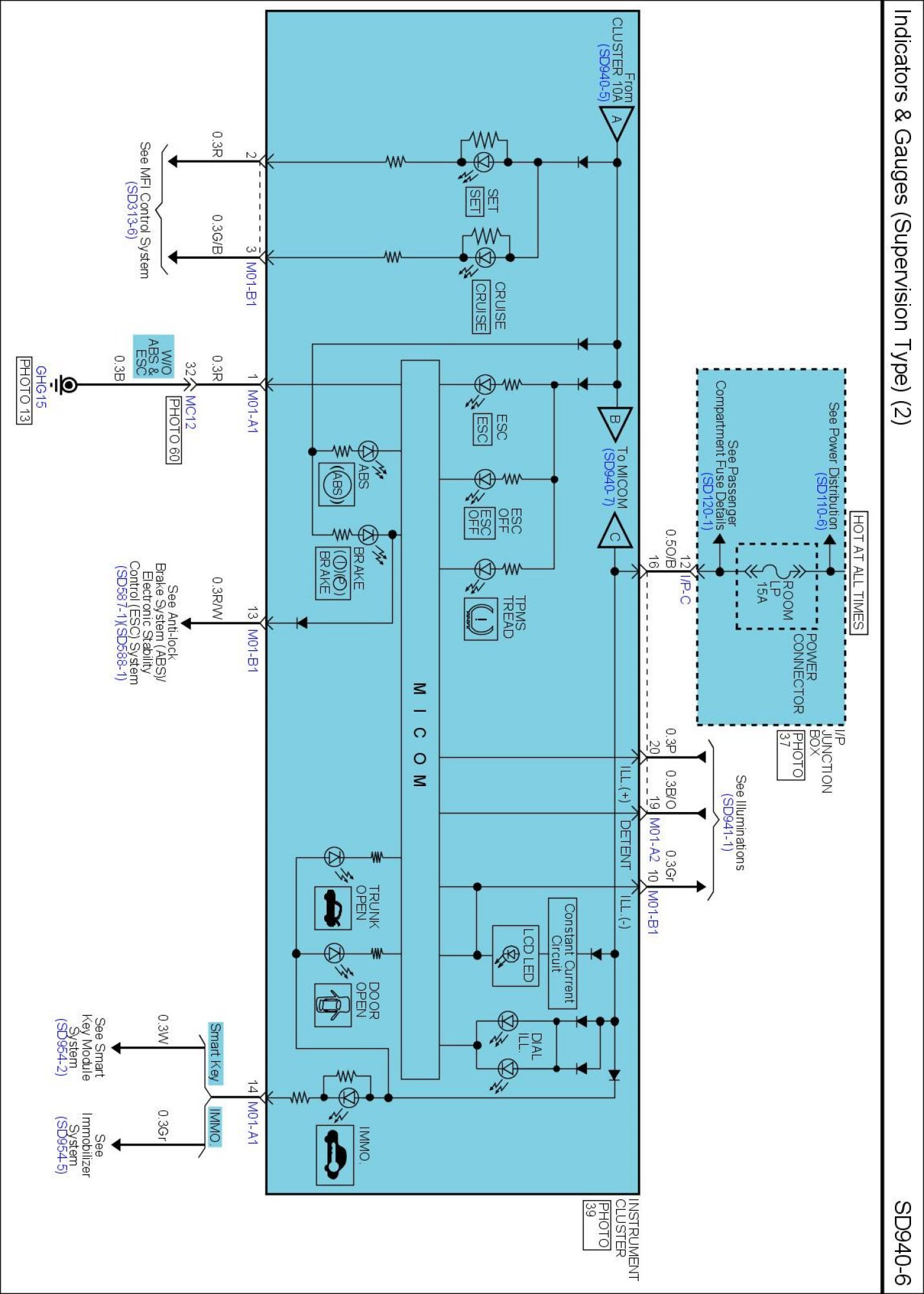

SD940-6 Indicators And Gauges (Supervision Type) (2):

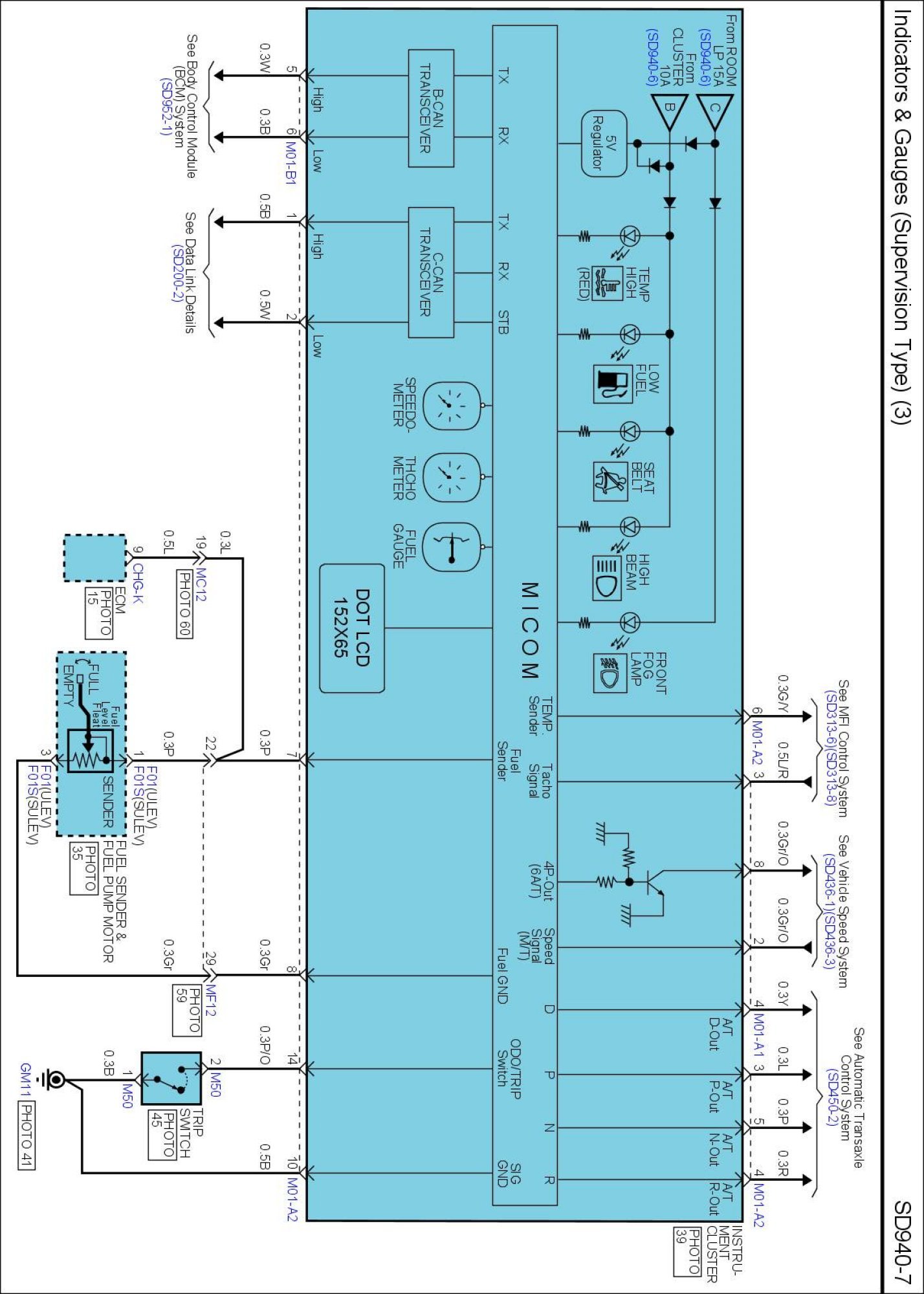

SD940-7 Indicators And Gauges (Supervision Type) (3):

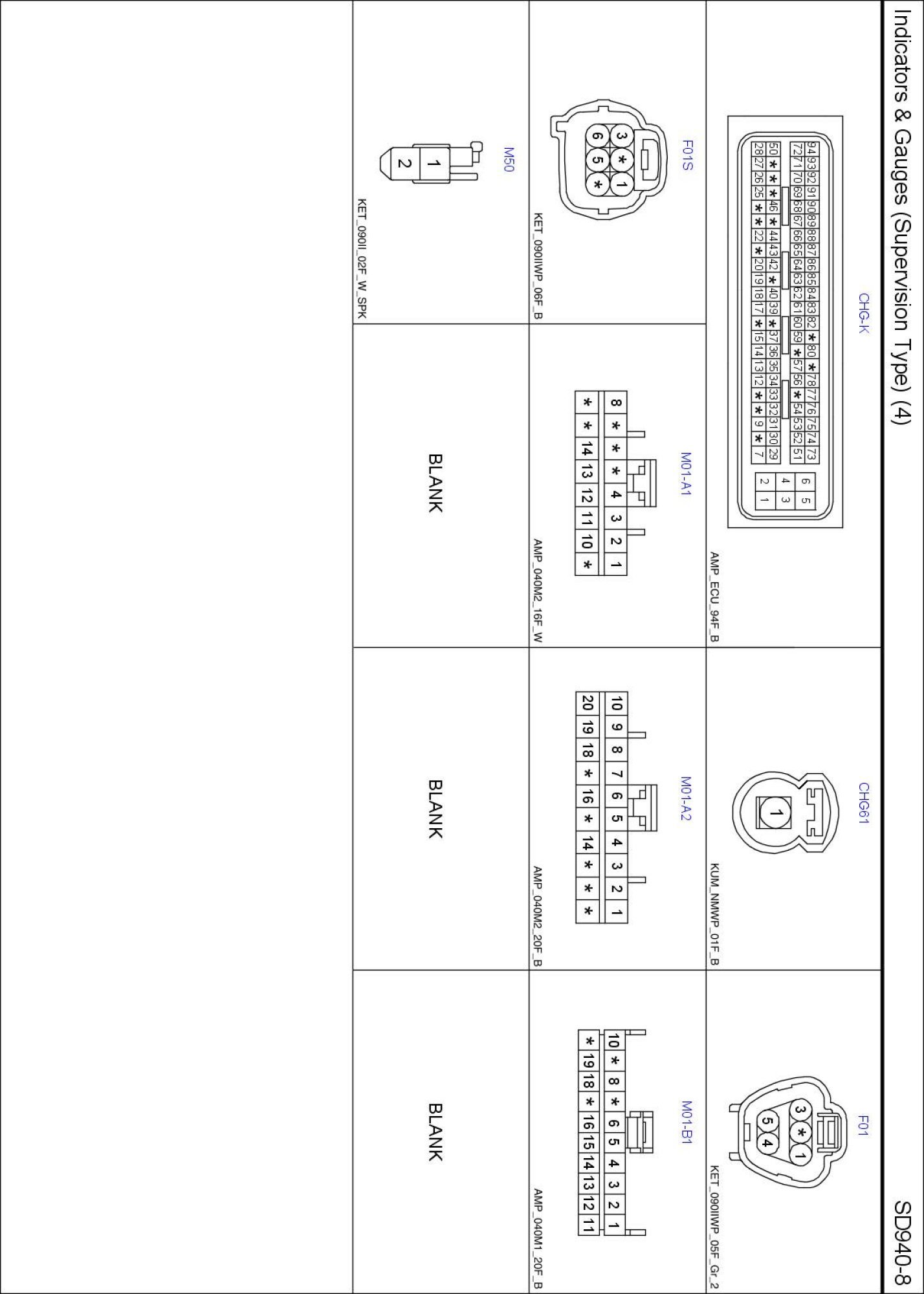

Indicators And Gauges (Supervision Type) (4) Connector Pin Outs:
