Coupe

Replacement

Roof Trim Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

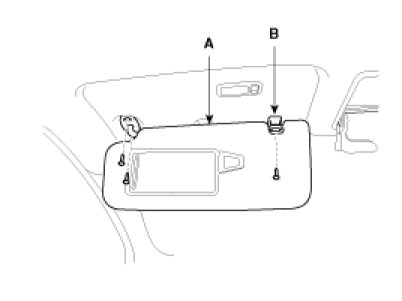

1. Sunvisor
A. Remove the sunvisor (A) and holder (B) from each side.

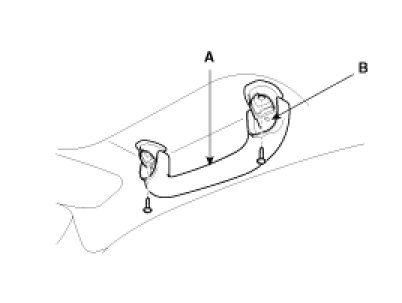

2. Assist Handle
A. Remove the covers (B), and remove the screws, then remove the assist handle (A).




3. Overhead Console Lamp
A. Remove the screw.

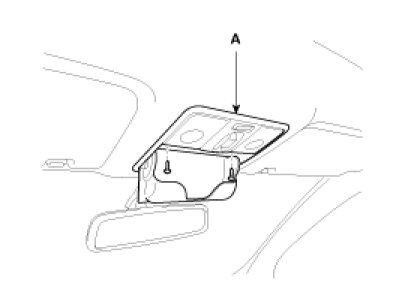

B. Pull out the roof console (A).

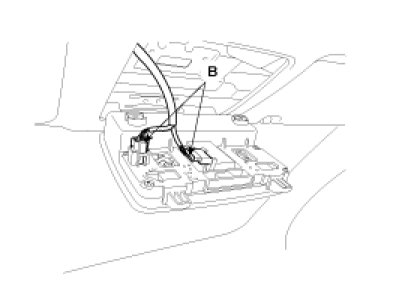

C. Disconnect the connector (B).








4. Lamp

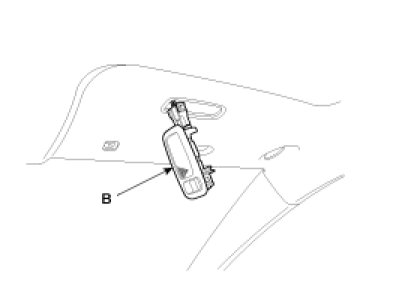

A. Pull out the room lamp (B).
B. Disconnect the connector.

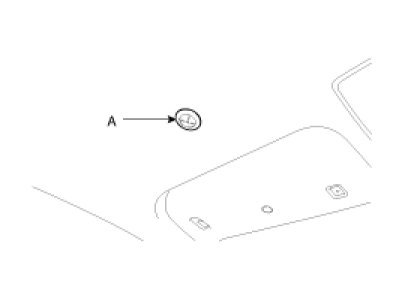

5. Remove the hands free mic (A).

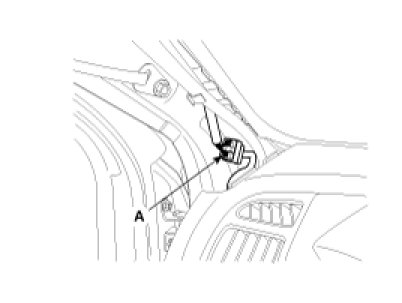

6. Disconnect the connector (A).

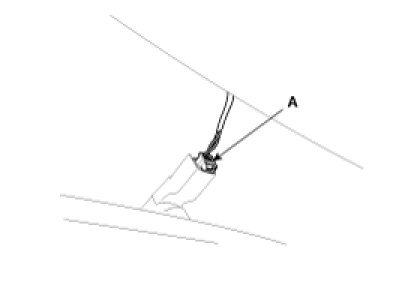

7. Disconnect the connector (A).

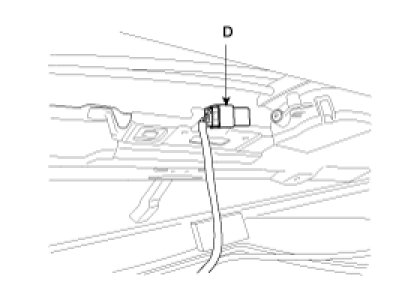

8. Disconnect the connector (D).

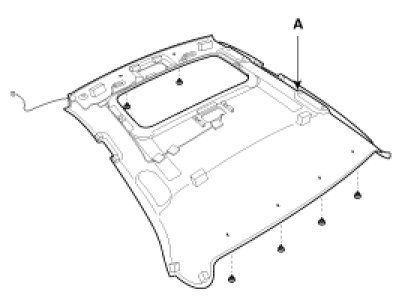

9. Remove the roof trim (A).




10. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
