Component Inspection

P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B)

Inspection/Repair - Component Inspection

Component Inspection

Shift control solenoid valve (SS-B) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.
3. Measure a resistance between "Shift control solenoid valve (SS-B)" terminal and power at ATM solenoid valve connector.

Specification : 10 - 11 Ohms (20 °C)

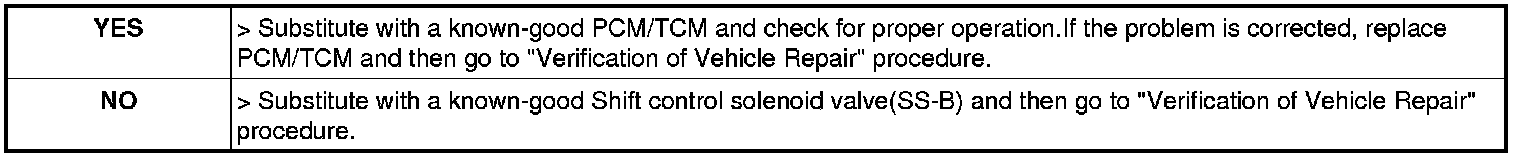

4. Is measured resistance within specification?
