P0773 Shift Control Solenoid Valve \'E\' Electrical (SS-A)

General Information

Component Location





General Description

Shift solenoid valve is ON/OFF type and changed a way of oil direction. PCM/TCM control solenoid valve to set gear speed position.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

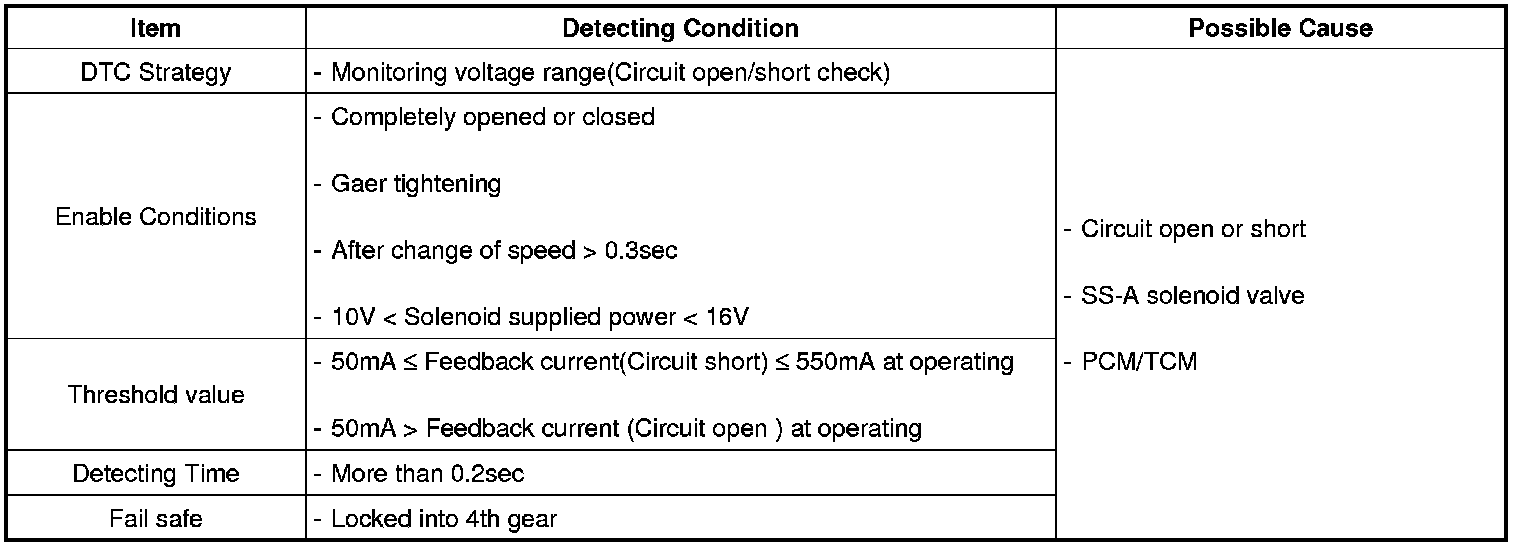

DTC Detecting Condition





Specification

Operating step table at each status





o : Connected status
x : Connected at Vehicle speed above 8 km/h





o : Operated at Vehicle speed under 5 km/h

- Working voltage: under 7.5 v (Supplied pressure 5.0 kgf/cm2, Oil temperature 85 °C)
- Release voltage: under 5.5 v (Supplied pressure 5.0 kgf/cm2, Oil temperature 85 °C)
- Release current: under 5.5 v (Supplied pressure 0.51 kgf/cm2, Oil temperature 85 °C)
- Internal resistance : 10 - 11 Ohms (20 °C)

Diagnostic Circuit Diagram
