P0768 Shift Control Solenoid Valve \'D\' Electrical (OD/C)

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Select "Current Data" mode and monitor "Shift Control Solenoid Valve (OD/C-VFS)" parameter current value.

Specification : See below data








































Fig 1) "P, N" range
Fig 2) "R" range (more than 8 kph)
Fig 3) "R" range (less than 8 kph)
Fig 4) "D" range 1st gear (more than 8 kph)
Fig 5) "D Range 1st" gear (less than 8 kph)
Fig 6) "D" range 2nd gear
Fig 7) "D" range 3rd gear
Fig 8) "D" range 4th gear
Fig 9) "D" range 5th gear
Fig 10) "D" range 6th gear
Operating step table at each status





o : Connected status
x : Connected at Vehicle speed above 8 km/h





o : Operated at Vehicle speed under 5 km/h

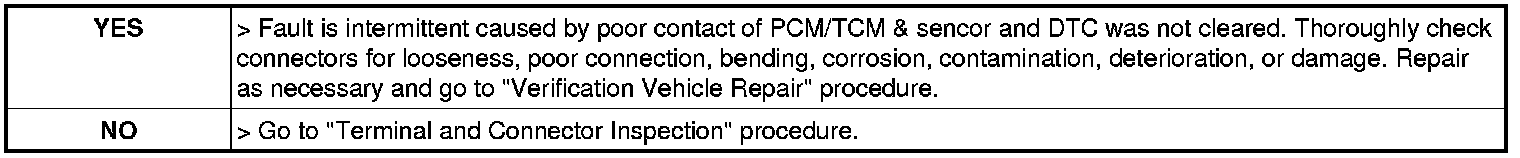

5. Is Shift Control Solenoid Valve (OD/C-VFS) within specification?
