P0763 Shift Control Solenoid Valve \'C\' Electrical (35R/C)

General Information

Component Location





General Description

PCM/TCM control 35R/C-VFS solenoid valve by changed current for reducing 35R clutch shock.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

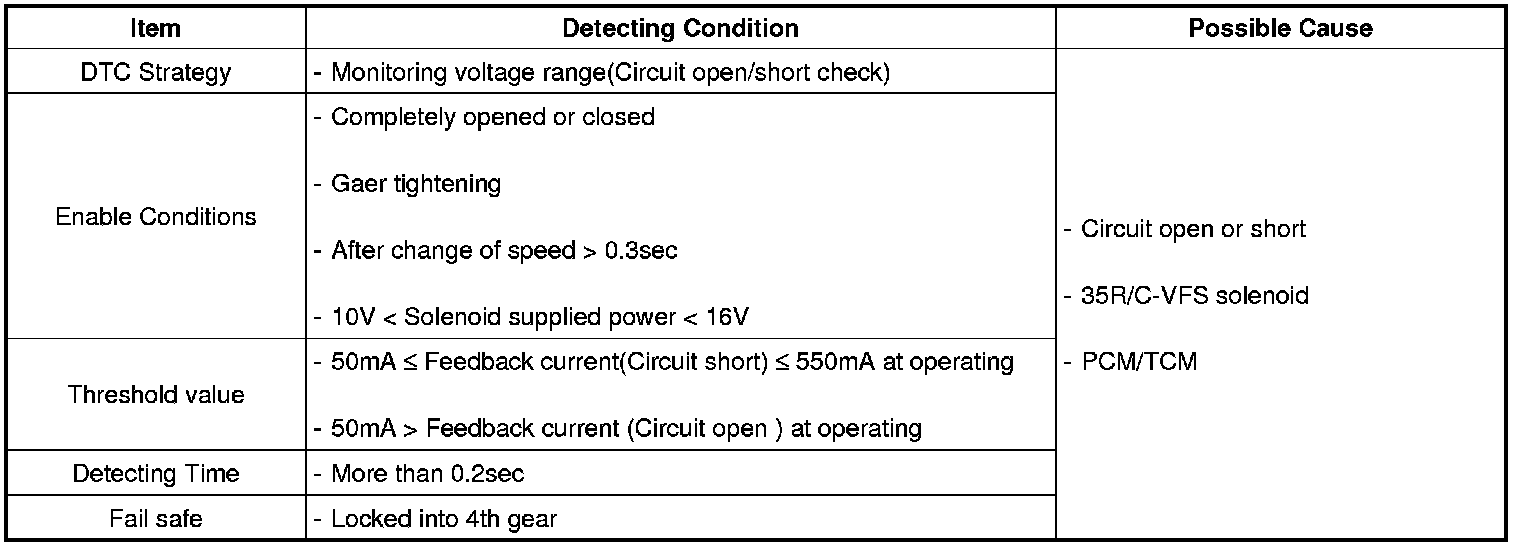

DTC Detecting Condition





Specification

Operating step table at each status





o : Connected status
x : Connected at Vehicle speed above 8 km/h





o : Operated at Vehicle speed under 5 km/h

- Working temperature : -40 °C ~ 150 °C
- Internal resistance : 5.1 ± 0.3 Ohms (25 °C normal temperature)

Diagnostic Circuit Diagram










Signal Waveform & Data




Fig 1) Wave form of 35R/C-VFS
